Operating instructions

Metering pump

beta/ X

Target group: Technical personnel

Please carefully read these operating instructions before use. · Do not discard.

The operator shall be liable for any damage caused by installation or operating errors.

The latest version of the operating instructions are available on our homepage.

Part no. 990610

Original operating instructions (2006/42/EC)

Version: BA BE 001 01/25 EN

Need help?

Do you have a question about the beta/ X and is the answer not in the manual?

Questions and answers

Summary of Contents for ProMinent beta/ X

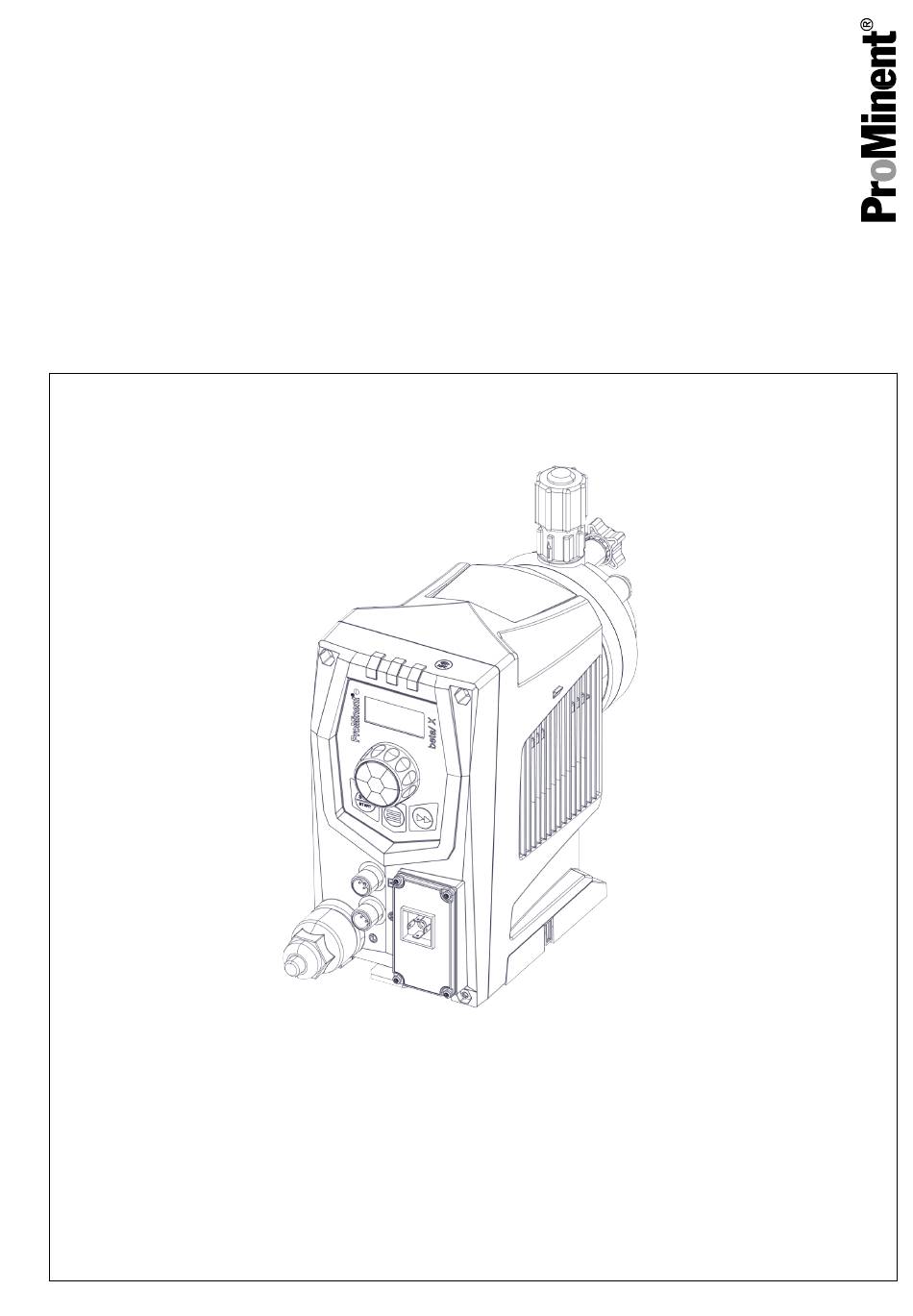

Page 1 Operating instructions Metering pump beta/ X Target group: Technical personnel Please carefully read these operating instructions before use. · Do not discard. The operator shall be liable for any damage caused by installation or operating errors. The latest version of the operating instructions are available on our homepage.
Page 2 Supplemental directives Supplementary information Read the following supplementary information in its entirety! You will benefit more from the operating instructions should you already know this information. The following are highlighted separately in the document: Enumerated lists Fig. 1: Please read! Instructions ð...
Page 3 Table of contents Table of contents Identity code................5 About this pump..............7 Safety chapter............... 8 3.1 Intended use..............8 3.2 Requirements governing personnel......8 3.3 Warning signs, symbols and pictogrammes....9 3.4 General safety............10 3.4.1 Hazard-free operation..........10 3.4.2 Hydraulic hazards............
Page 4 Table of contents Maintenance............... 42 11.1 Overview of maintenance work......... 42 11.1.1 Visual check for damage........42 11.1.2 Maintenance work - standard liquid end....43 11.1.3 Maintenance work - liquid end with vent valve..44 11.1.4 Tightening torques..........45 Repair................. 46 12.1 Replacing valves............
Page 5 1935/2004 PFAS-free Hydraulic connector Standard connector (metric universal connector set) Inch universal connector Logo with Prominent logo and beta/ X lettering Voltage version Universal control 100 - 240 V AC Cable and plug 2 m European 2 m Swiss 2 m US American 120 V...
Page 6 Identity code Product range beta/ X no relay Relay 3-pin, 240 V 1x changeover contact 240 V-8 A (Relay normally closed) Relay 4-pin, 24 V 100 mA 2x N/O 24 V-100 mA (as 1 + pacing relay normally open) 0-24 mA output + relay 2-pin 24V0, 1ADC...
Page 7 The beta/ X diaphragm metering pump is simple to handle, meters precisely and is digital. All aspects of the beta/ X are designed for ease of handling. The volume is adjusted directly using an intuitively operated Clickwheel. The volume to be pumped is adjusted directly on a display. And installation on the floor and on the wall is quick and easy thanks to its ‘click foot’.
Page 8 Observe the general limitations with regard to viscosity limits, chemical resistance and density - see also the ProMinent Resistance List in the Product Catalogue or at www.promi‐ nent.com.
Page 9 Service The Service department refers to service technicians, who have received proven training and have been authorised by ProMinent to work on the system. 3.3 Warning signs, symbols and pictogrammes Identification of safety notes...
Page 10 Injury to personnel and property by the use of untested third-party components – Only fit parts to metering pumps, which have been tested and recommended by ProMinent. CAUTION! Danger from incorrectly operated or inadequately maintained pumps Danger can arise from a poorly accessible pump due to incorrect operation and poor maintenance.
Page 11 Safety chapter 3.4.2 Hydraulic hazards DANGER! Rupturing hydraulic components by exceeding the maximum permissible operating pressure Hydraulic components can rupture if the maximum permissible operating pressure of the hydraulic parts is exceeded. – Adhere to the maximum permissible operating pressure of all hydraulic components - please refer to the product-specific operating instruc‐...
Page 12 Safety chapter 3.4.4 Danger from materials and operating substances DANGER! Danger from hazardous substances! Possible consequence: fatal or very serious inju‐ ries. When handling hazardous substances, ensure that you have read the latest material safety data sheets provided by the manufacturer of the haz‐ ardous substances.
Page 13 WARNING! The transporting of pumps which have been used with radioactive feed chemicals is forbidden! They will also not be accepted by ProMinent! WARNING! Only return metering pumps for repair in a cleaned state and with a flushed liquid end - refer to "Decommissioning!
Page 14 Storage, Transport and Unpacking Scope of delivery Compare the delivery note with the scope of delivery: Metering pump with mains cable Connector kit for hose/pipe connection (optional) Product-specific operating instructions with EC Declaration of Conformity Optional accessories...
Page 15 Overview of equipment and control elements Overview of equipment and control elements 5.1 Overview of equipment Control unit Drive unit Liquid end 5.2 Control elements Fault indicator (red) [STOP/START] key Warning indicator (yellow) [Menu] key Operating indicator (green) [Priming] key Screen "External control"...
Page 16 Overview of equipment and control elements 5.2.1 Display elements Pressure display, identifier and fault displays on the screen Fig. 2: beta/ X menu Status symbol Parameter (editing mode) Stop source symbol Menu symbol Operating mode Parameter name Parameter 10 Parameter value can be changed...
Page 17 Overview of equipment and control elements Symbol Position Function Description ANALOG Analogue (0/4-20 mA) Auxiliary mode (ext. signal) 5.2.2 Calibration ‘Calibration è menu’ Calibration - precision The pump does not need to be calibrated with media similar to water. Calibration is required with high-viscosity media or if a high level of precision is sought.
Page 18 Overview of equipment and control elements Press the [Clickwheel] . ‘Menu / Information è Settings’ ð The pump returns to the menu. 5.3 Functional and fault indicators Fault indicator (red) The fault indicator lights up if the fluid level in the dosing tank falls below the second switching point of the level switch (20 mm residual liquid level in the dosing tank) or below the error threshold of the DULCOLEVEL radar sensor connected.
Page 19 The dosing rate is set directly in l/h or ml/h. A full stroke is always performed. The longest possible metering stroke of the beta/ X is 1 minute. Above that, the pump switches to Start/Stop mode. In Start/Stop mode, the delivery volume can be reduced by a factor of 1:1,000.
Page 20 Functional description Fault indicating and pacing relay This combined relay can generate a contact with each stroke via its option pacing relay in addition to functioning as a fault indicating relay. The relay can be retrofitted through an installation opening in the pump foot - refer to the supplementary instructions for "Retrofitting relays"...
Page 21 Assembly Assembly WARNING! Danger of electric shock If water or other electrically conducting liquids pen‐ etrate into the drive housing, in any other manner than via the pump's suction connection, an electric shock may occur. – Position the pump so that it cannot be flooded. CAUTION! Danger from incorrectly operated or inadequately maintained pumps...
Page 22 Assembly Make sure that the base surface is load-bearing and horizontal. Screw the bracket horizontally to the base surface. Engage the pump in the bracket.
Page 23 Assembly Dismantling - base surface Make sure that the pump is switched off and disconnected from the mains/power supply. Press in the lug of the bracket and release the pump. 7.2 Installation - wall-mounted Make sure that the wall is load-bearing and straight. M5 Screw Screw the bracket vertically to the wall.
Page 24 Assembly Dismantling - wall-mounted...
Page 25 Install a shut-off valve on the pressure and suction side of the metering pump. DANGER! Injury to personnel and property by the use of untested third-party components – Only fit parts to metering pumps, which have been tested and recommended by ProMinent.
Page 26 Installation 8.2 Hydraulic installation Safety information DANGER! Rupturing hydraulic components by exceeding the maximum permissible operating pressure Hydraulic components can rupture if the maximum permissible operating pressure of the hydraulic parts is exceeded. – Adhere to the maximum permissible operating pressure of all hydraulic components - please refer to the product-specific operating instruc‐...
Page 27 Take into account the resistance of the wetted materials and the ProMinent Resistance List when selecting the feed chemical - see the ProMinent Product Catalogue or visit our web‐ site. INFORMATION: Arrange the pipes so that the metering pump and...
Page 28 Installation 8.2.1 Installing hose lines 8.2.1.1 Installing a hose line with metering pumps without vent valve Installing hose lines - PV and PE ver‐ sions Fig. 3: PV and PE versions Hose Union nut Clamp ring Nozzle Flat seal Valve Cut off the ends of the hoses at right angles.
Page 29 Installation Clamp the hose connector: tighten the union nut (2) while simultaneously pressing on the hose (1). Re-tighten the hose connector: briefly pull on the hose line (1), which is fastened to the dosing head and then tighten the union nut (2) once more. Installing the stainless steel pipe - SS versions Fig.
Page 30 Installation Attach the hose line to the return hose nozzle / to the liquid end vent valve. PVC hose, soft, 6x4 mm is recommended. Feed the free end of the return line into the supply tank. 8.3 Electrical installation Safety information DANGER! Fatal injury by electrocution –...
Page 31 Installation NOTICE! Bonding of the contacts of your switching relay The high starting current can cause the contacts of the on-site switching relay to bond together if a sol‐ enoid metering pump is switched on and off by the supply voltage for a process. –...
Page 32 Installation Electrical interface for pin 1 "Pause" - pin 2 "External contact" - pin 5 "Auxiliary frequency" Data Value Unit Voltage with open contacts Input resistance 10 kΩ Max. pulse frequency 25 pulse/s Min. pulse duration 20 ms P_BE_0014_SW Fig. 5: Assignment on the pump Min.
Page 33 Installation P_BE_0015_SW Fig. 6: Cable assignment Function 5-wire cable 2-wire cable Pause brown bridged at pin 4 External contact white brown mA input* blue Earth GND black white Auxiliary frequency grey * with identity code characteristic "Control version": A - "External Analogue"...
Page 34 Installation 8.3.2.2 "Level switch" socket There is a connecting option for a 2-stage level switch with pre- warning and limit stop. Electrical interface Data Value Unit Voltage with open contacts Input resistance 10 kΩ Control via: potential-free contact (load: 0.5 mA at 5 V) or semiconductor switch (residual voltage <...
Page 35 Installation 8.3.3 Relays 8.3.3.1 Relay functions Tab. 3: beta/ X Identity code Designation Type Maximum Maximum cur‐ Service life voltage rent Min. switching operations no relay Fault indicating Changeover 230 V AC 50,000 relay, N/C contact Fault indicating 24 V DC...
Page 36 Installation Identity code 1 To pin VDE cable Contact CSA cable white N/O (normally open) white green N/C (normally closed) brown C (common) black P_G_0072_SW Fig. 9: Assignment on the pump 8.3.3.3 Output for other relays (identity code 4) A fault indicating relay and a pacing relay can be ordered as options - refer to the ordering information in the appendix.
Page 37 Installation Electrical interface for current output Data Value Unit Open circuit voltage: Current range: 4 ... 20 mA Max. ripple: 80 μA ss Max. load: 250 Ω for semiconductor switch ("relay"): Data Value Unit Max. residual voltage at I = 1 µA 0.4 V off max Pacing pulse duration, approx.
Page 38 – Take into account the resistance of the wetted materials when selecting the feed chemical - refer to the ProMinent Resistance List in the Product Catalogue or at www.prominent.com. Starting up the metering pump Fill the liquid end by pressing the priming key. In the event of back pressure, the vent screw on the dosing head may need to be opened.
Page 39 Start up Draining the liquid end Turn the pump so that the pressure connector is facing downwards. Allow the medium to flow out of the liquid end. Flush a suitable medium through the suction connector and then blast with compressed air.
Page 40 Operation Operation WARNING! Danger of electric shock Supply voltage may be present inside the pump housing. – Safely and quickly disconnect the pump from the mains/power supply if the pump housing has been damaged. Only return the pump to operation after an authorised repair.
Page 41 Contact operating mode. The contacts are performed more slowly because of the limitation. Example: if 5 l/h is set in Contact mode, the beta/ X does not meter more than 5 l/h independently of the number of incoming contacts.
Page 42 Maintenance Maintenance WARNING! It is mandatory that you read the safety information and specifications in the "Storage, Transport and Unpacking" chapter prior to shipping the pump. CAUTION! Warning of feed chemical spraying around Feed chemical may spray out of the hydraulic com‐ ponents if they are tampered with or opened due to pressure in the liquid end and adjacent parts of the system.
Page 43 Maintenance Tab. 4: Check-list Object to be inspected Dam‐ More details aged? Check housing for Return the pump to us in the event of any damage. damage Check liquid end for leaks If a leak is identified, dismantle the dosing head and check for the source of the fault.
Page 44 Maintenance Fig. 12: The leakage hole Interval Maintenance work Personnel Annually* Technical personnel Replace the diaphragm and valves. * with normal loading (approx. 30% of continuous operation). With heavy-duty loading (e.g. continuous operation): shorter inter‐ vals. Check the metering diaphragm more frequently or use a dia‐ phragm rupture indicator with feed chemicals that put particular pressure on the diaphragm, e.g.
Page 45 Maintenance 11.1.4 Tightening torques Tightening torque Data Value Unit Tightening torque for screws: 4.5 ... 5.0 Nm...
Page 46 WARNING! Danger of electric shock Unauthorised repairs inside the pump can result in an electric shock etc. For this reason, only allow a ProMinent branch or representative to perform repairs inside the pump, in particular the following: – Replacement of damaged mains connection lines –...
Page 47 Repair 12.1 Replacing valves Do not clean valves, instead completely replace them! 12.2 Replacing the diaphragm Feed chemical may have accumulated behind the diaphragm in the backplate following a leak - depending on the design. Take this feed chemical into consideration when planning a repair if it is hazardous.
Page 48 Repair Fig. 13: Partially exploded view of the liquid end 12.2.1 Replacing the vPTFE diaphragm Spare parts for the vPTFE diaphragm The vPTFE diaphragm (full PTFE diaphragm) is replaced in the same way as the standard diaphragm. A fitted vPTFE diaphragm needs to be replaced once the dosing head screws have been loosened, as the pump will otherwise no longer be tight.
Page 49 Troubleshooting Troubleshooting Safety information WARNING! Warning of hazardous feed chemical Should a dangerous feed chemical be used: it may escape from the hydraulic components when working on the pump, material failure or incorrect handling of the pump. – Take appropriate protective measures before working on the pump (e.g.
Page 50 Troubleshooting Fault description Cause Remedy Personnel Pump does not prime Serious crystalline Dismantle the valves and clean Technical per‐ despite full stroke motion deposits on the ball seat them - refer to "Repair". sonnel and degassing. due to the valves drying out.
Page 51 Troubleshooting 13.4 Warnings and faults with error message 13.4.1 Warnings Warnings are displayed by the yellow LED and a symbol. The con‐ tent of the warning can be viewed in the app. Description Symbol Action Level Level switch input warns of Tank is almost empty low feed chemical Check whether there is sufficient feed chem‐...
Page 52 Troubleshooting Description HMI display text Action DRIVE-ERROR Pressure too high. Check whether the line/valve is blocked or whether the system pressure is too high for the pump Supply voltage too low POWER-FAIL Ensure that there is adequate mains voltage. The pump will switch off if the mains voltage is too low.
Page 53 Decommissioning and disposal Decommissioning and disposal 14.1 Decommissioning WARNING! Danger from chemical residue There is chemical residue in the liquid end and at the housing after operation. This chemical residue could be hazardous to people. – It is essential that the safety information in the "Storage, transport and unpacking"...
Page 54 Decommissioning and disposal Disconnect the pump from the mains/power supply. Unscrew the back pressure valve from the discharge valve – slowly to allow the pressure to reduce. Drain the liquid end by turning the pump upside down and allowing the feed chemical to run out. Flush the liquid end with a suitable medium;...
Page 55 Technical data Technical data 15.1 Performance data Pump type Pump capacity at max. back pres‐ Connector Suction lift* Priming lift** sure ml/stroke Strokes/mi outer Æ x inner Æ BTXB16006 0.49 BTXB07018 17.8 1.48 BTXB04028 27.9 2.32 BTXB02050 50.5 4.21 * Suction lift with a filled suction line and liquid end. ** Priming lifts with moist valves.
Page 56 21CFR177.2510 21CFR177.1520 EPDM/FKM 21CFR177.2600 Pump Housing parts: Polypropylene (PP with 30% fibreglass) 15.5 Electrical data Design: 100 - 240 V AC ±10%, 50/60 Hz, beta/ X Description Range Unit Supply voltage 100 - 240 V AC ±10% Frequency 50/60 Nominal power approx.
Page 57 Technical data 15.6 Temperatures Pump, fully assembled Description Range Unit Storage and transport tem‐ -20 ... +60 °C perature Ambient temperature in ope‐ -10 ... +45 °C ration (power end/drive and control) Liquid end, long-term* Tab. 5: Maximum temperature, liquid end Material version Value Unit...
Page 58 Technical data 15.9 Degree of protection and safety requirements 15.9.1 Degree of protection Protection against contact and moisture: The pump is designed in accordance with: IP 66 (EN 60529) and NEMA-4X/indoor (NEMA 250) 15.9.2 Safety requirements Degree of protection: 1 - Mains connection with protective earth conductor 15.9.3 Degree of pollution...
Page 59 Any modification to the product that we have not approved will invalidate this declaration. Tab. 8: Extract from the Declaration of Conformity Designation of the Metering pump, beta/ X product range product: Product type: Serial number: see nameplate on the unit...
Page 60 Index Index 1, 2, 3 ... "External control" socket ... . . 18, 31, 40 Hierarchy of operating modes ....20 "Level switch"...
Page 61 Index Priming ......20, 40 Warning sign ......9 Protection against contact and moisture .
