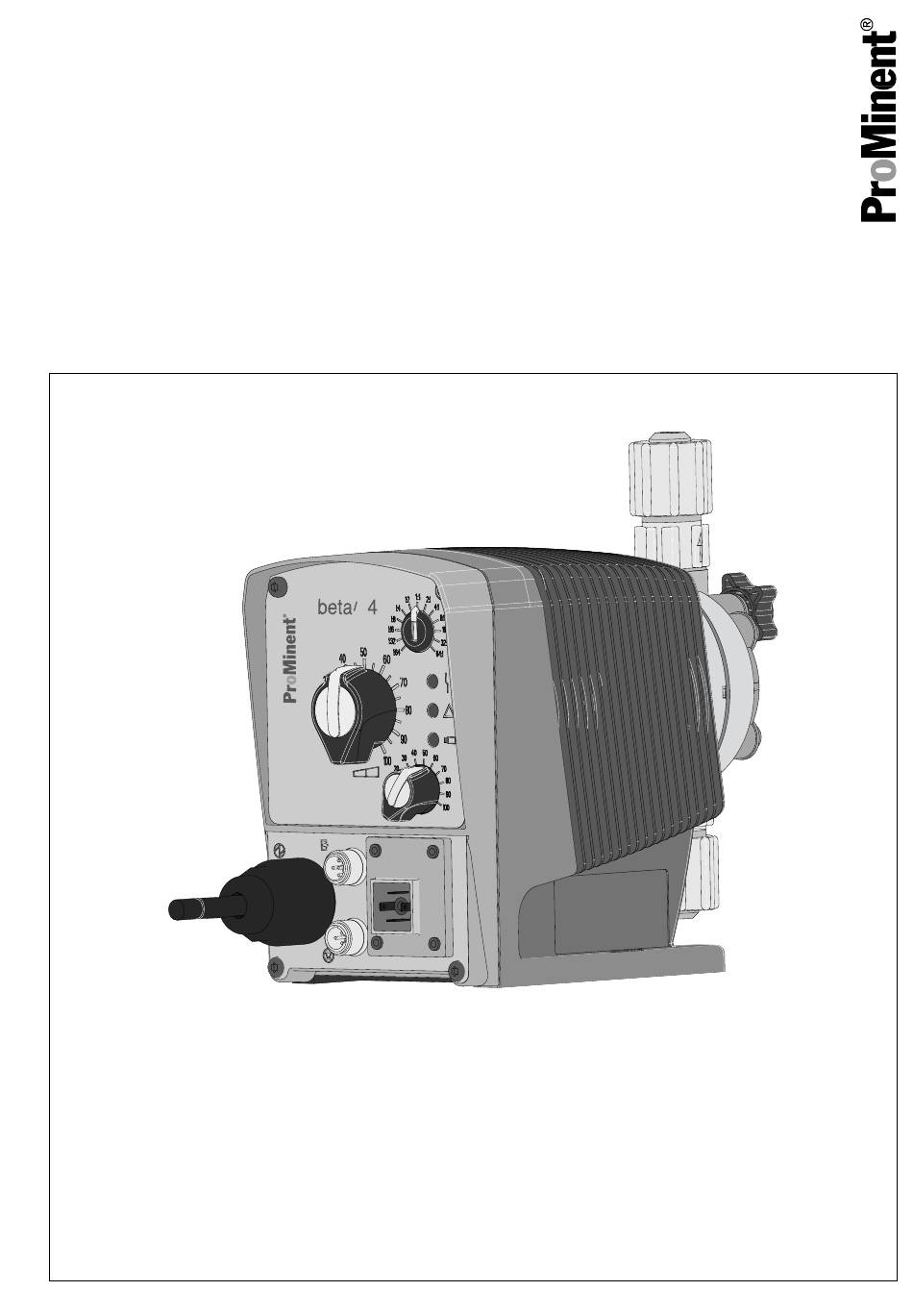

Operating instructions

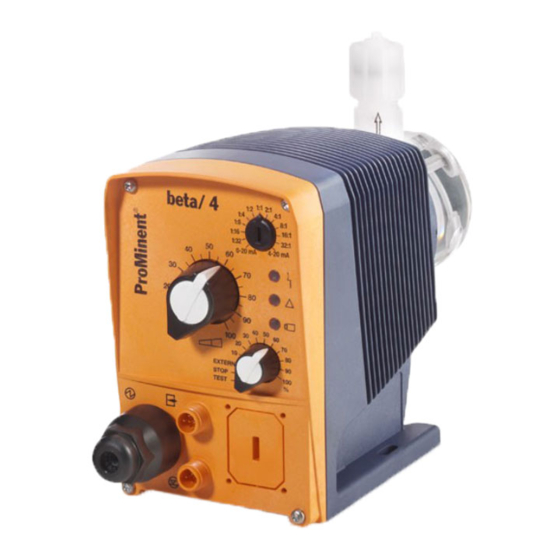

Solenoid Metering Pump
Beta b BT4b and BT5b
EN
Target group: Technical personnel
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
Part no. 986356
Original operating instructions (2006/42/EC)
Version: BA BE 036 04/22 EN
