Summary of Contents for Schick S3 Premium

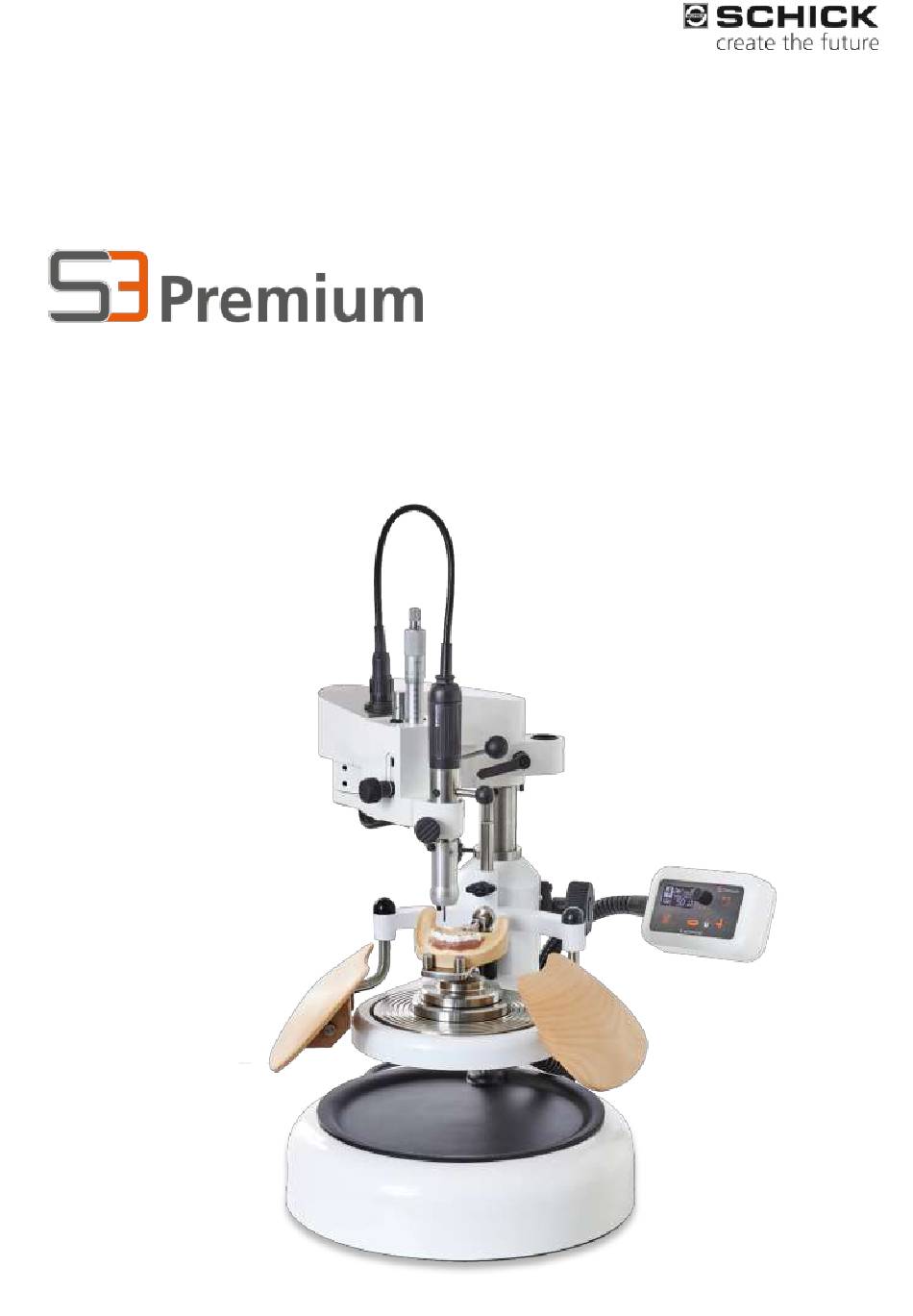

  • Page 1 Original Instructions Schick GmbH Issue 2025/01...
  • Page 2 We are pleased that you have decided in favor of a technically high-quality device from SCHICK and wish you every success and joy in working with your new technical hand- piece. We have compiled these operating instructions to familiarize you with your new de- vice and to provide you with the necessary information for operation and maintenance.
  • Page 3: Table Of Contents

    During installation ................10 during operation ................. 10 maintenance and control work ............11 maintenance and repair work ............. 11 Structural changes ................11 2.11 Accesories and customization..................11 scope of delivery ...................... 11 3/41 Issue 2025/01 S3 Premium Instructions...
  • Page 4 .................. 14 S W1 water cooling for milling spindle (optional, not included)......15 Functions and operation ..................16 Power on/off S3 Premium ................... 16 Operation and OLED display ..................16 Display: ....................16 Functions of the control satellite: ................. 18 Footswitch functions ....................
  • Page 5 Removal and cleaning of the collet ............ 34 Technical specifications ..............35 Accesories ........................ 37 12.1 milling accessories ...................... 37 12.2 Accessories ceramic processing/water cooling ............38 Attachment ........................ 40 13.1 service address ......................40 13.2 Declaration of Conformity ................... 41 5/41 Issue 2025/01 S3 Premium Instructions...
  • Page 6: About These Operating Instructions

    Pay special attention to the chapter2"General safety regulations 1.1 General These instructions are intended to make it easier for you to get to know the S3 Premium and use its intended applications. The operating instructions contain important information on how to operate the S3 Pre- mium safely and properly.
  • Page 7: Structure Of The Warnings

    This sign indicates activities where there is a risk of electric shock, possibly with fatal consequences. hand injuries This symbol stands in front of activities where there is a risk of hand injuries. 7/41 Issue 2025/01 S3 Premium Instructions...
  • Page 8: Technical Terms And Abbreviations Used

    General safety regulations 2.1 principles Use only at the maximum speeds specified by the tool manufacturer. Use only tools in- tended for the application and performance data of the S3 Premium by the manufac- turer/dealer. Area of application: industry, trade 2.2 Intended Use...
  • Page 9: Foreseeable Misuse

    Workplace in the dental laboratory/practice laboratory/dental practice, industry and trade. 2.7 safety devices The S3 Premium has a display that shows the preset maximum speed. After switching on, the device is limited to a maximum of 50,000 rpm and must be activated by the user for higher speeds up tp 80.000 1/min.
  • Page 10: Safety Signs

    2 General safety regulations 2.8 safety signs Note on the type plate on the control unit. Meaning Read the operating instructions in detail before starting up. 2.9 protective measures Do not wear long hair loose Personal protective equipment safety goggles 2.10 safety regulations General information...
  • Page 11: Maintenance And Control Work

    Structural changes to the product are not permitted. 2.11 Accesories and customization The S3 Premium can be equipped with the optionally available ceramic set for processing ceramics under water cooling. Accessories such as parallel holders or transmission spiders may only be used in...
  • Page 12: Technical Description

    6223 technical description 4.1 Overview The S3 Premium is a dental milling device for the production and processing of removable dentures in the dental laboratory. 4.2 functional description With the S3 Premium, components of removable dentures are parallelized or prepared for a defined insertion direction using a hand-guided milling spindle.
  • Page 13: Type Label

    Requirements for the installation site Devices that have cooled down considerably must be brought to room temperature before being used. Risk of condensation. 5.2 storage Storage location requirements In the original packaging, indoors only, protected from moisture. 13/41 Issue 2025/01 S3 Premium Instructions...
  • Page 14: Installation And Commissioning

    6 Installation and commissioning Installation and commissioning 6.1 installation Necessary tool No tools required Safety precautions before installation When working on the electrical installation, pull out the mains plug. 6.2 Installation establish supply Connection cable Spindle Pedal switch for S W1 magnetic fi- start/stop pedal (optional)
  • Page 15: W1 Water Cooling For Milling Spindle (Optional, Not Included)

    100-240 volts The mains cable may only be replaced with an original mains cable from Schick. S W1 water cooling for milling spindle (op- tional, not included) The S W1 water cooling for milling spindle Art.No. 2990 can be connected to the S3 Pre- mium using the supplied connection cable 12548 and thus enables the water cooling to be switched on when the spindle is started.
  • Page 16: Functions And Operation

    The S3 Premium may only be switched off using the main switch when the spindle is stationary. 8.2 Operation and OLED display The S3 Premium is operated via an operating satellite which can be flexibly positioned via the gooseneck. In addition, the user has two foot pedal switches available. Display: The OLED display of the S3 Premium control device (only knee and table version) provides information about all operating states of the device after switching on.
  • Page 17 The inverted display indicates that the spindle is running or that the milling arm and/or the model table are being fixed! After 20 minutes of non-use, the display dims. To reactivate it, simply make an entry by using the control satellite. 17/41 Issue 2025/01 S3 Premium Instructions...
  • Page 18: Functions Of The Control Satellite

    8 Functions and operation 8.3 Functions of the control satellite: 360° encoder for speed (turn) and spindle start (press) clockwise/coun- terclockwise ro- tation Fixation high speed Fixation model table milling range 8.4 Footswitch functions Fixation of milling arm/model Start/stop milling table spindle The black foot pedal switch with the start symbol is permanently assigned the milling spin-...
  • Page 19: Milling Spindle Operation

    It is essential to observe the maximum permissible speed of the clamped tool before starting the spindle! 8.6 Changing the direction of spindle rotation The S3 Premium can be switched from right to left rotation. The default direction of rota- tion is clockwise. Changing the direction of rotation: ...
  • Page 20: Installation/Removal Of The Milling Spindle/Measuring Spindle

    8 Functions and operation 8.7 Installation/removal of the milling spindle/measuring spindle The optional measuring spindle can or must be used for special applications such as meas- uring or surveying. Installation/removal:  Loosen the clamping screw from the light head  Loosen the clamping screw of the spindle ...
  • Page 21  Insert the measuring spindle into the spindle holder from above and tighten the clamping screw Accessories such as parallel holders or transmission spiders may only be used in the measuring spindle! 21/41 Issue 2025/01 S3 Premium Instructions...
  • Page 22: Tool Change On The Spindle

    The collets of the S3 Premium milling machine are factory-equipped with a stop bolt for short tool shanks. Before using tools with a standard length shank, the stop bolt must be removed in order to achieve sufficient clamping depth.
  • Page 23: Home Position Of The Milling Arm

    8.9 Home position of the milling arm The 3D milling arm of the S3 Premium has three joints, two of which can be locked at the push of a button. The third joint is the pivot point of the milling arm on the column and is locked in place with a clamping lever.
  • Page 24: Setting The Working Height

    8 Functions and operation 8.10 Setting the working height In order to adapt the S3 Premium to the desired milling or working height, the milling ta- ble is adjusted in height. down Setting the working height:  Loosen the clamping screw ...
  • Page 25: Use Of The Height Stop Ring

     The router table can now be lowered to change tools and turned precisely back to the original height. If the height stop ring is not required, it is advisable to slide it all the way up and tighten it there. 25/41 Issue 2025/01 S3 Premium Instructions...
  • Page 26: Drill Lever And Depth Stop

    8.12 drill lever and depth stop Using the adjustable depth stop, the S3 Premium can be used to create individual millings at the highest level. The depth stop is infinitely adjustable via a micrometer screw. If the micrometer screw is completely unscrewed, the entire vertical stroke of 25 mm is available.
  • Page 27: Use Of The Optional Wooden Armrests

    The adjustment of the armrests is independent of the height adjustment of the milling ta- ble and is only carried out once by the user individually. Armrests mounted and optimally adjusted. 27/41 Issue 2025/01 S3 Premium Instructions...
  • Page 28 8 Functions and operation The armrests can be individually adjusted in height, vertically and horizontally, as well as in the distance to the user. Assembly and adjustment of the armrests:  Swiveling the milling arm to the side  Place the armrests on the column and fix them at the desired height with the clamping screw.
  • Page 29: Tips And Tricks

    90° is essential for precise milling results. In order to maintain this angle as precisely as possible, the S3 Premium has an adjustable milling table which is set to exactly 90° dur- ing assembly. Subsequent adjustment of the milling table by the user is not necessary.
  • Page 30: Use Of The Optional Measuring Spindle Art.no. 2052/1

    9 Tips and Tricks Ideally, after the milling shell has been rotated, it should be moved on the milling table in such a way that the milling arm remains in a similar position. The basic position of the milling arm must not be changed during free milling or measuring.
  • Page 31  Lock the milling arm (2.) (button on the operating satellite or pedal switch)  Fix the spindle holder with the clamping screw.  Fix/grow the attachment part  Loosen the clamping screw again and carefully move the spindle holder up- wards. 31/41 Issue 2025/01 S3 Premium Instructions...
  • Page 32: Troubleshooting

    Schick directly. 10.2 Malfunction and error messages The S3 Premium has intelligent control electronics that recognize possible faults and can show them as an error code on the display. If an error occurs, this is indicated by "ERROR- 01".
  • Page 33: Maintenance And Control Work For Operators

    11.1 General information Schick spindles are designed for maximum durability, but the collet should be removed and cleaned from time to time to remove dirt and extend the life of the collet. Dirt on the plastic surfaces can be removed with a dry cloth.
  • Page 34: Carry Out Maintenance And Control Work

    11 Maintenance and control work for operators interval maintenance and control activities Remarks Weekly Remove LED light head and remove dirt Do not use compressed air! Monthly Remove collet, clean and grease Grease with Art.No. 51/1 11.3 Carry out maintenance and control work Removal and cleaning of the collet Hold on here Unscrew the collet...
  • Page 35: Technical Specifications

    Closed system without cooling drive system Brushless DC motor concentricity <0.015mm collets Ø 2.35 and 3.0 mm (optional) incl. stop for short tools tool change quick release operating voltage 100-240 volts, 50-60 Hz 35/41 Issue 2025/01 S3 Premium Instructions...
  • Page 36 11 Maintenance and control work for operators General data and di- mensions continuous recording 200 watts power Dimensions Broad 300mm Height 500mm depth 420mm Weight 21kg The total vibration value during operation is less than 2.5 m/s²...
  • Page 37: Accesories

    ø 2.35mm Art.No. 2052/1 Art.No. 10450 3.0 mm Art.No. 2268/1 ø 3.0 mm Art.No. 2795/1 Receptacle Art.No. 2509 Milling oil 50 ml Art.No. 2575 Milling tray Art.No. 2507/1 milling oil 100 ml Art.No. 2575/1 37/41 Issue 2025/01 S3 Premium Instructions...
  • Page 38: Accessories Ceramic Processing/Water Cooling

    Collection tub S W1 Art.No. 2990 Art.No. 2498 Ceramic processing with the turbine: Ceramic milling set for S2 and S3 Premium Art.No. 2650/05 Scope of delivery: suction tub, separator, turbine T100, model table stainless steel, light head for turbine, diamond tool set for turbine 1.6 mm, polishing set 2.35 mm,...
  • Page 39 Art.No. 2470/5 2655 Light head for turbine Adapter for turbine Adapter turbine NSK Art.No. 2510/1 T100 Art.No. 2481 Art.No. 2481 /1 Diamond tool set Polishing set ø 2.35 turbine Art.No. mm Art.No. 2665 2660 39/41 Issue 2025/01 S3 Premium Instructions...
  • Page 40: Attachment

    Fax: +49 7356 950095 Email: info@schick-dental.de Internet:www.schick-dental.de If you need service, please send your device directly to Schick GmbH at the above address and fill out our repair form (on the back page as a template or underwww.schick- dental.de/service-REPAIR/REPAIR-UND-ABHLSERVICE) out of.
  • Page 41: Declaration Of Conformity

    Repair service and specially trained specialists is required. The house SCHICK guarantees you flawless Repairs with original spare parts. To each of us repairs carried out in-house will refer you to the exchanged parts are granted a guarantee period of 6 months.
