Summary of Contents for Schick S3 Master

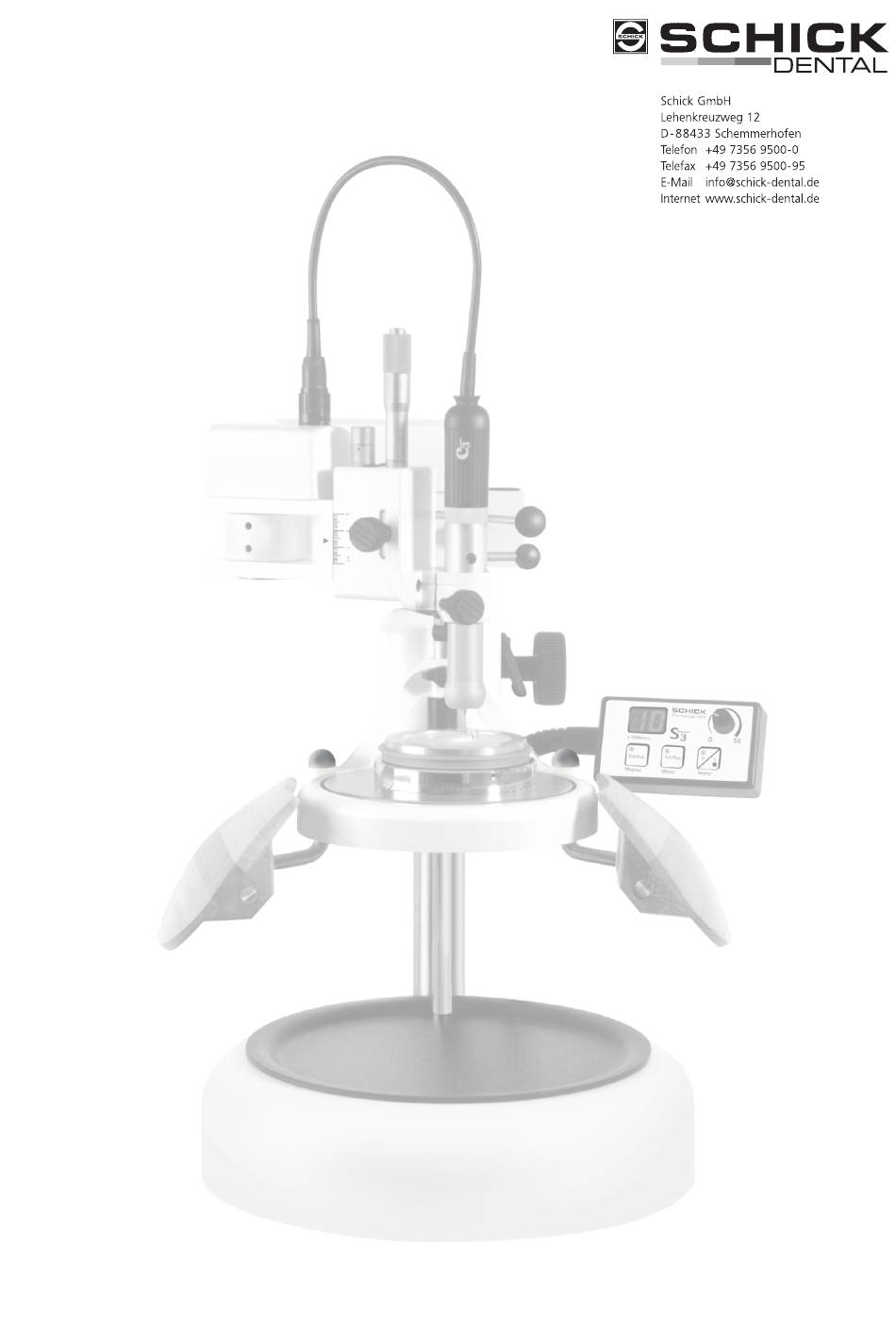

- Page 1 Original Instructions SCHICK - Milling machine S3 Master...
-
Page 2: Table Of Contents
List of contents ....................Range of applications..................General information / Safety information............ Setting up ......................Short instruction into operation................. Picture milling machine S3 Master / operating elements........9-12 Operation......................7.1 3D Milling arm 7.2 Operating unit 7.3 Integrated arm supports 7.4 Height-adjustable milling table... -
Page 3: List Of Contents
Milling machine S3 complete 2500/5 consisting of: milling machine S3 2520/5 Foot-switch (Magnet-coupling) 2110 Foot-switch (Motor) 2560 S3 Master milling spindle with cable 9400/07 Light equipment 2510 Mains cable 2160 Collet chuck Ø 2,35 mm 4114 stop for short tools... -
Page 4: Range Of Applications
Highest precision, consistent quality control und minor maintenance are the merits of the S3 Master which has been developed under assistance of recognized experts in milling technics. This novel construction - the model is moved up and down by means of the height adjustable milling table - is unique, and grants the technician ergonomic, relaxed sitting during work. - Page 5 - Repairs and other technical procedures must only be carried out by suitable qualified personnel, authorized by SCHICK. - SCHICK do not guarantee the S3 Master milling unit should it not have been used in accordance with the instructions - For defects occured by using the S3 Master milling machine in another way or by inappropriate handling the manufacturer rejects any liability.
-
Page 6: Setting Up
Store the complete package for an eventual return to manufacturer. If you should intend to destruct the package, please be so kind to return the complete package to SCHICK. Pict. 3 Setting up Foot-switch... -
Page 7: Short Instruction Into Operation
Short instruction into operation 5. Operation activate mains switch (4) 3D-milling arm jointed arm - Fastening and loosening is done with the foot switch (6) - adjust the additional, third joint with thumb drive (15) - When the milling machine is not in use please place the milling arm into ’parking postion’... -
Page 8: Picture Milling Machine S3 Master / Operating Elements
Picture Milling Machine 6. S3 Master 1. Socket for foot-switch (magnet-coupl.) 2. Socket for foot-switch (motor) 3. Socket for mains cable 4. Mains switch 5. Fuses (point 1 - 5 see page 6) 6. Foot-switch (magnet-coupl..) 6.a Plug foot-switch (magnet-coupl.) 7. - Page 9 Operation 7. Operation Mains switch To activate the electric press mains switch (4) “ON”. The switch itself becomes shining. Now all electrical functions are controllable. To switch the unit off press mains switch (4) “OFF” again. Attention:: when the unit is switched off the magnetic couplings are no longer activated ! Put the milling arm into the resting position 7.1 3D - Milling arm Jointed arm...
- Page 10 Operation When replacing the milling spindle pull down until stop. Please pay attention that the thread pin placed in the spindle holder clicks into the notch at the milling spindle. The lever (31) (pict. 2) at the milling spindle has to show into left direction.
-
Page 11: Height-Adjustable Milling Table
Operation Direction of rotation of milling spindle To change direction of rotation of milling spindle use switch “Motor - R/L” (21). If motor is running the direction right or left is shown through a green light in the switch. It is also possible to change the direction of rotation when motor is running. - Page 12 7.5 Motor technics The milling unit S3 Master is equipped with the new C3 technology. This means extrem and stable torque in all speed ranges, silent and vibration free running and highest balance.
-
Page 13: Exchanging The Rotary Instruments
Exchanging the rotary instruments Replacing the chuck 8. Exchanging the rotary instruments The chuck is opened by turning tension lever (31) to the right till it stops. When the shaft of the rotary instrument is placed into the chuck turn tension lever to the left till it stops. -
Page 14: Maintenance And Care
The fuses (5) (230V→ 2x T2AH250V art.no.:3106) (100-115V 2x T4AH art.no.: 7306) are to be found beside the socket for the mains cable (3) (see page 6). Should it not be possible to abolish the faults please contact SCHICK directly... -
Page 15: Technical Data / Accessories
Technical Data / Accessory Technical Data S3 Master Rated voltage: 230V / 115V / 100V Rated frequenzy: 50/60 Hz Motor torque: 7,8 Ncm Speedrange: 1.000 - 50.000 min-1 power: 270 Watt Concentricity: < 0,015 mm chuck: Ø 2,35 mm series Ø... -
Page 16: Declaration Of Conformity
Declaration of Conformity We, SCHICK GmbH Lehenkreuzweg 12 D-88433 Schemmerhofen declare herewith, that the product Milling machine S3 Master art.-no. 2500/5 is in conformity with the following provisions of Directive: 2006/42/EG (machinery directive) 2014/30/EU (EMC directive) 2011/65/EU (RoHS) Wolfgang Schick...
