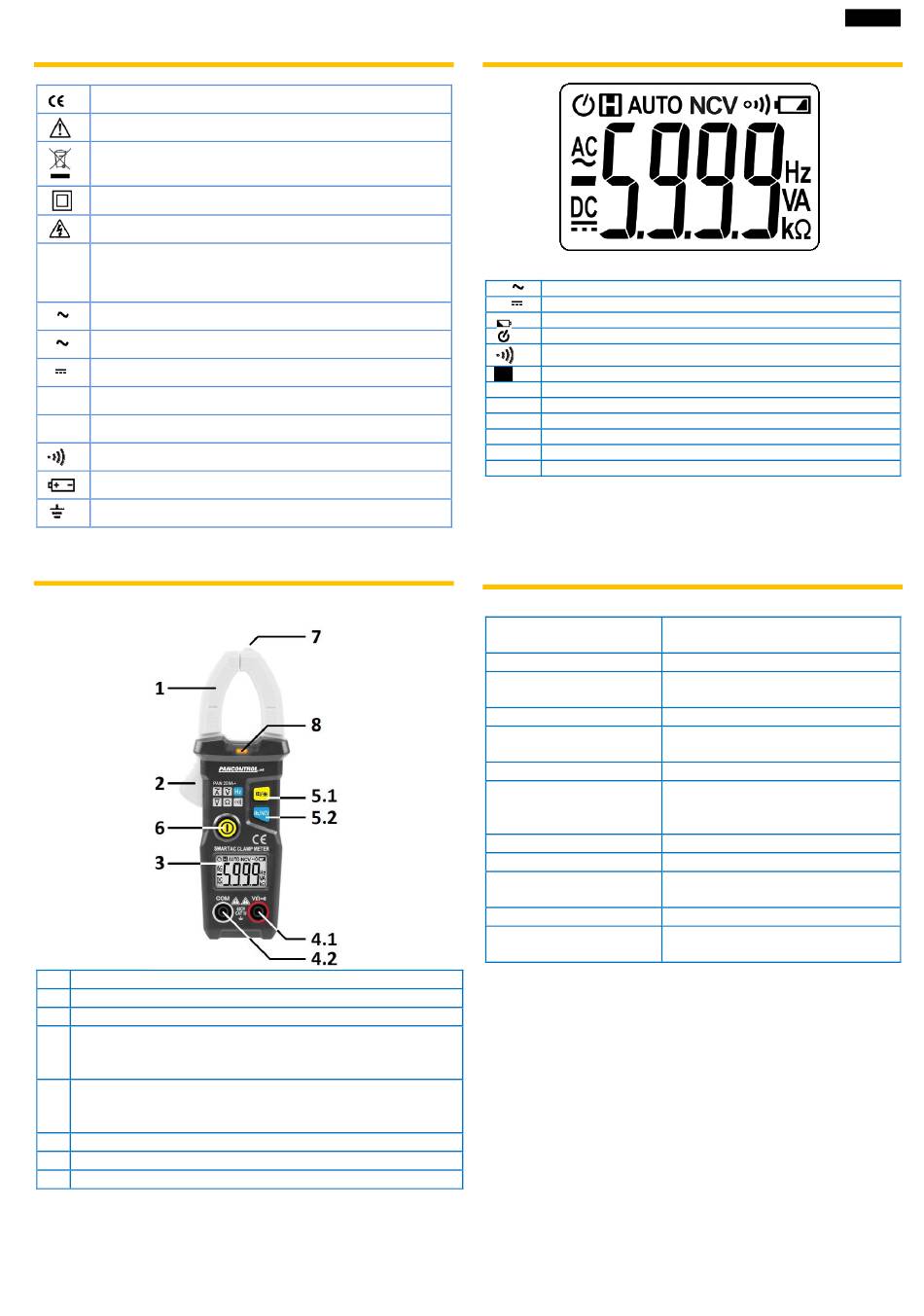

PANCONTROL PAN 200A+ Operating Manual page 2

4. Symbols Description
Conforms to the relevant European Union directive (EN-61010)
Risk of Danger. Important information See instruction manual
This product should not be disposed along with normal domestic waste
at the end of its service life but should be handed over at a collection
point for recycling electrical and electronic devices.
Product is protected by double insulation
Attention! Hazardous voltage. Risk of electric shock.
The device is designed for making measurements in building
installations. Examples are measurements on junction boards, circuit
CAT III
breakers, wiring, switches, permanently installed sockets, devices for
industrial use as well as permanently installed motors.
A AC current
V AC voltage
V DC voltage

Resistance
Hz Frequency
Continuity test
Battery compartment
Ground / Earth (max. voltage to earth)
5. Panel Description
1 Induction clamp
2 Clamp opener
3 Display
4 Input terminal
4.1 Multi-function jack
4.2 Joint connector (COM)
5 Function keys
5.1 Data hold / Backlight
5.2 Frequency measurement / Non Contact Voltage tester (NCV)
6 Main switch
7 NCV - Sensor
8 NCV - Display
6. Symbols of the Display
AC AC voltage / current
DC DC voltage
Battery low
Operation indicator / Auto power off
Audible continuity test active
xHx Data hold

Resistance measurement
Hz Frequency measurement
A AC Current measurement
V DC Voltage measurement / AC Voltage measurement
NCV Non Contact Voltage tester (NCV) active
OL Overload indicator
This device does not use all the symbols shown in the image.
7. General Specifications
Display
Overload indicator
Polarity
Measuring rate
Category
(Usage condition)
max. voltage to earth
Continuity test
Auto power off
Power supply
Operating temperatute
Temperature coefficient
Altitude
Storage temperature
2
LCD with Backlight
3 3/4 Digits (to 5999)
OL
automatically (minus sign for negative
polarity)
3x / Second(s)
CAT III 600 V
600 V
If the resistance is less than about 50 Ω, you
hear an audible signal. If the circuit is open,
the display shows "OL".
ca. 10 Min.
2 x 1,5 V (AAA Battery(s))
18 - 28°C (64 - 82°F) / <75% Humidity
< 0,1 x Accuracy / °C
max. 2000 m
-10 - 50°C (14 - 122°F) (Remove the battery if
Humidity >80%)
IIEnglishII
