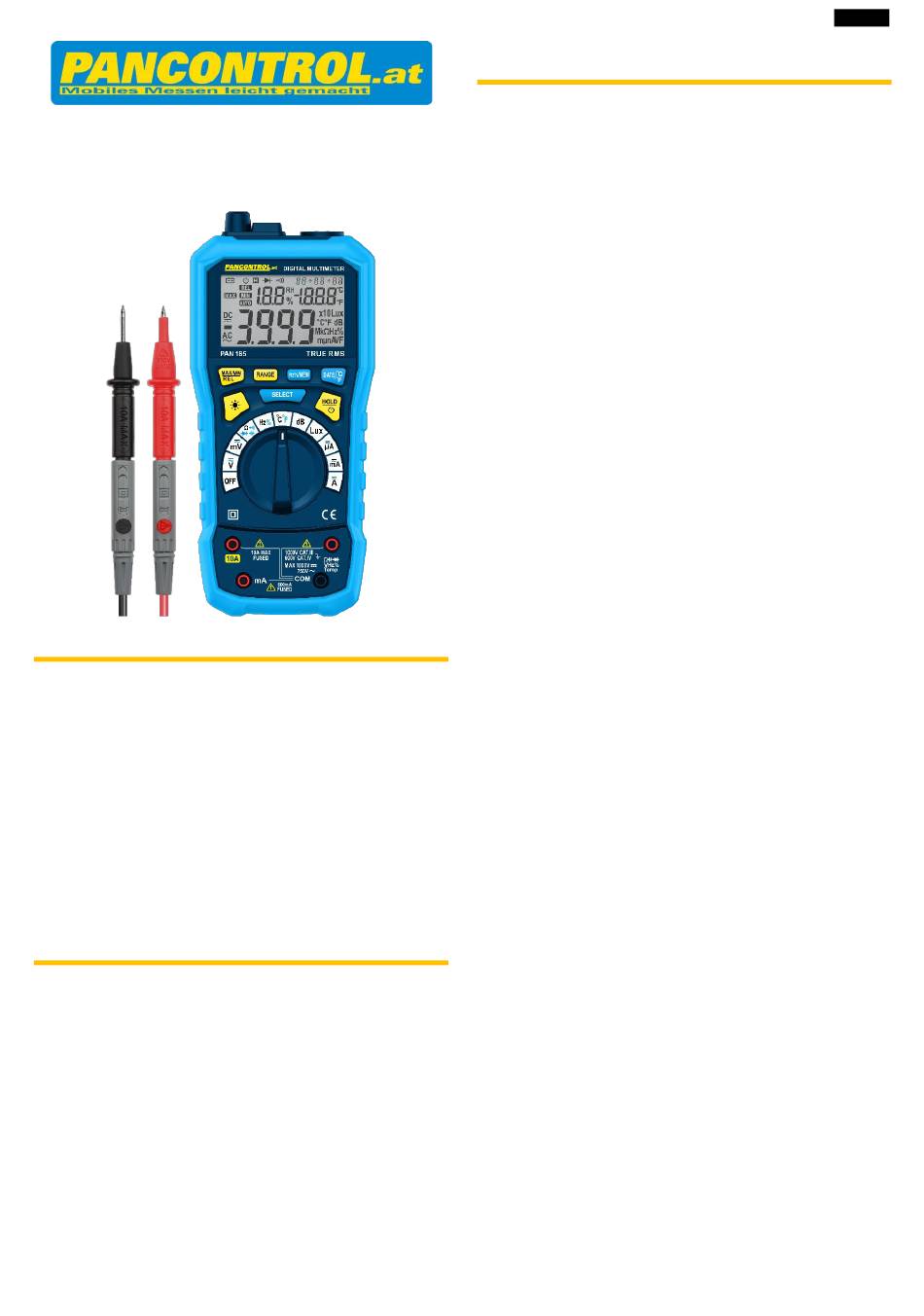

PANCONTROL PAN 185 Manual

Manual
PAN 185
Digitalmultimeter TRUE RMS
1. Introduction
Thank you for purchasing PANCONTROL. Since 1986, the PANCONTROL brand has
stood for practical, innovative and professional measuring instruments. We hope you
enjoy using your new product and we are convinced that it will serve you well for
many years to come.
Please read this operating manual carefully before using the device to become
familiar with the proper handling of the device and to prevent faulty operations.
Please follow all the safety instructions. Nonobservance cannot only result in damages
to the device but in the worst case can also be harmful to health.
The PAN 185 is a universal measuring instrument with many additional functions. In
addition to the basic electrical variables (V, A, Hz, Ω and F), you can measure and store
temperature, noise level and illuminance. In addition to the date and time, you also
have the ambient temperature and humidity in the display. The PAN 185 is therefore
the ideal device for the demanding technician.
2. Scope of delivery
After unpacking please check the package contents for transport damage and
completeness.
•
Measurement device
•
Test leads
•
Type K temperature probe
•
Operating manual
3. Safety Instructions
To ensure the safe use of the device, please follow all the safety and operating
instructions given in this manual.
•
The device is only intended for use by qualified personnel and in accordance with
the relevant regulations for safe work on electrical systems.
•
Before using the device, make sure that test leads and the device are in good
condition and the device is working properly. (e.g. by connecting to known
voltage sources).
•
The device may not be used if the housing or the test leads are damaged, if one
or more functions are not working, if functions are not displayed, or if you suspect
that something is wrong.
•
If the safety of the user cannot be guaranteed, the device may not be operated
and secured against use.
•
While using this device, hold the test leads only behind the finger guards - do not
touch the probes!
•
Never ground yourself while making electrical measurements. Do not touch any
exposed metal pipes, fittings etc., which could have a ground potential. Ensure
that your body is isolated by using dry clothes, rubber shoes, rubber mats or
other approved insulation materials.
•
Place the device in such a way that it is possible to disconnect it from the mains
at any time.
•
Always adjust the rotary switch to the desired measuring range before starting
the measurement and engage the switch in the proper measuring range.
•
If the measuring range needs to be changed during the measurement, remove
the probes from the circuit first.
•
Never turn the rotary switch during measurement, but always in the
disconnected condition.
•
Never connect the device to voltage or current sources that exceed the specified
maximum values.
•
Do not use the device in any higher category than allowed.
•
To avoid electric shocks, turn off the current of the device being tested and
unload all capacitors before performing the following measurements.
•
Never connect the test leads of the device to a voltage source, if the rotary switch
is set to measure current, resistance or test diodes. This can damage the device.
•
If the battery symbol appears in the display, replace the battery immediately.
•
Always switch off the appliance and remove the test leads from all voltage
sources before opening the device to exchange the battery or the fuse.
•
Never use the device with the housing, battery or fuse compartment open.
•
Do not use the device outdoors, in humid surroundings or in environments that
are subjected to extreme temperature fluctuations.
•
Never use the device in an explosionprone environment.
•
Do not store the device in places which are exposed to direct sunlight.
•
Remove the battery if the device is not used for a long time.
•
If changes or modifications are made to the device, the operational safety is no
longer guaranteed and the warranty becomes void.
IIEnglishII
