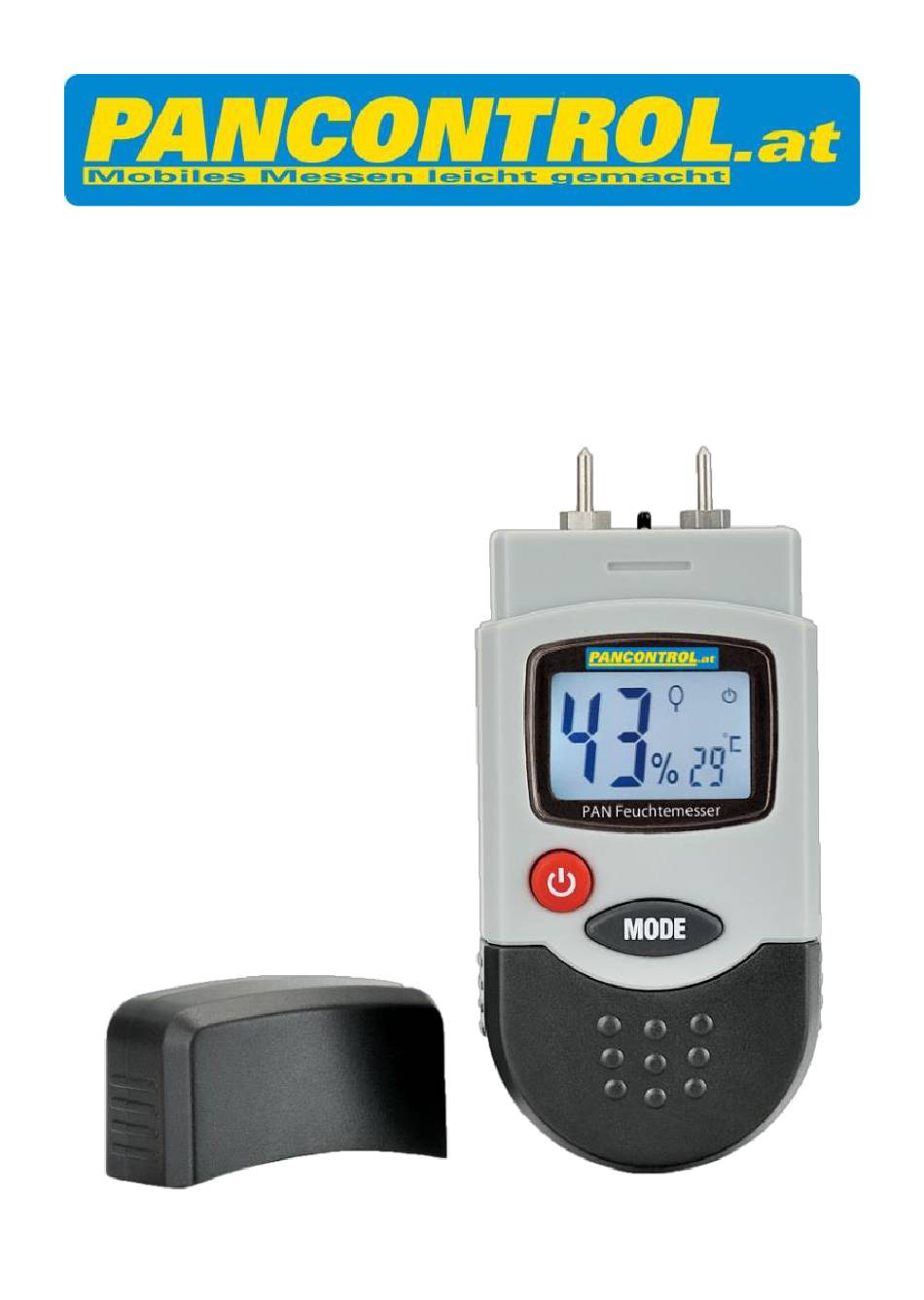

- Page 1 English MA NUA L PAN Feuchtemesser...
-
Page 2: Table Of Contents
English Manual PAN Feuchtemesser Moisture meter for wood and building materials Contents Introduction ..................3 Scope of delivery ................3 Safety Instructions................4 Symbols Description ................ 5 Panel Description ................6 Symbols of the Display ..............7 General Specifications ..............8 Operating Instructions .............. -
Page 3: Introduction

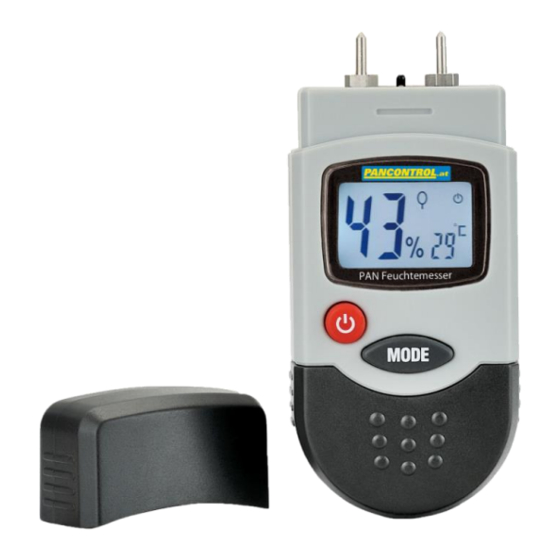

Please follow all the safety instructions. Nonobservance cannot only result in damages to the device but in the worst case can also be harmful to health. The PAN Feuchtemesser is an easy-to-use device for measuring the moisture content of sawn wood (cardboard, paper) and hardened masonry (plaster, concrete and mortar). -
Page 4: Safety Instructions
English 3. Safety Instructions To ensure the safe use of the device, please follow all the safety and operating instructions given in this manual. - Before using the device, make sure that it is intact and is functioning properly. - The device must no longer be used if the housing is damaged, if one or more functions fail if no function is displayed, or if you suspect that something is not right. -
Page 5: Symbols Description
English 4. Symbols Description Conforms to the relevant European Union directive (EN-61010) Product is protected by double insulation This product should not be disposed along with normal domestic waste at the end of its service life but should be handed over at a collection point for recycling electrical and electronic devices. -
Page 6: Panel Description
English 5. Panel Description Measuring Tips (interchangeable) switch Display Main switch MODE - button Battery compartment... -
Page 7: Symbols Of The Display
English 6. Symbols of the Display Operation indicator Material moisture °C °F Temperature in Celsius or Fahrenheit Timber Masonry Battery low... -
Page 8: General Specifications
English 7. General Specifications Display Measuring principle Resistance measurement Electrodes Length: 8 mm, interchangeable Power supply 4 x 1,5 V LR 44 - Button cell (s) Auto power off 2 Min. Operating temperatute 0 ºC to 50 ºC / <85% Humidity Altitude max. -
Page 9: Operating Instructions
English 8. Operating Instructions • Be aware of the Safety Instructions. (Chapter 3) • Always switch OFF the device when it is not in use. • Always keep the appliance clean and dry. - Avoid dirt between the measuring tips. Temperature With the function key MODE (5) you switch between °C and °F (Press and hold 2 Second(s)) -
Page 10: Maintenance
English Note: Properties of the wood due to type and growth, as well as different wood types and differing timber temperatures may make it necessary to correct the displayed values. Measurements for inspections or reference purposes should therefore be carried out in accordance with the drying and weighing / calcium carbide method. -
Page 11: Guarantee And Spare Parts
This device is covered by the statutory warranty of 2 years after date of purchase (according to purchase receipt). Further information on complaint handling can be found at: www.pancontrol.at/complaints In case of spare part requirement or in case of queries or problems, please get in touch with your vendor or: Changes as a result of technical development, as well as errors and printing errors reserved.
