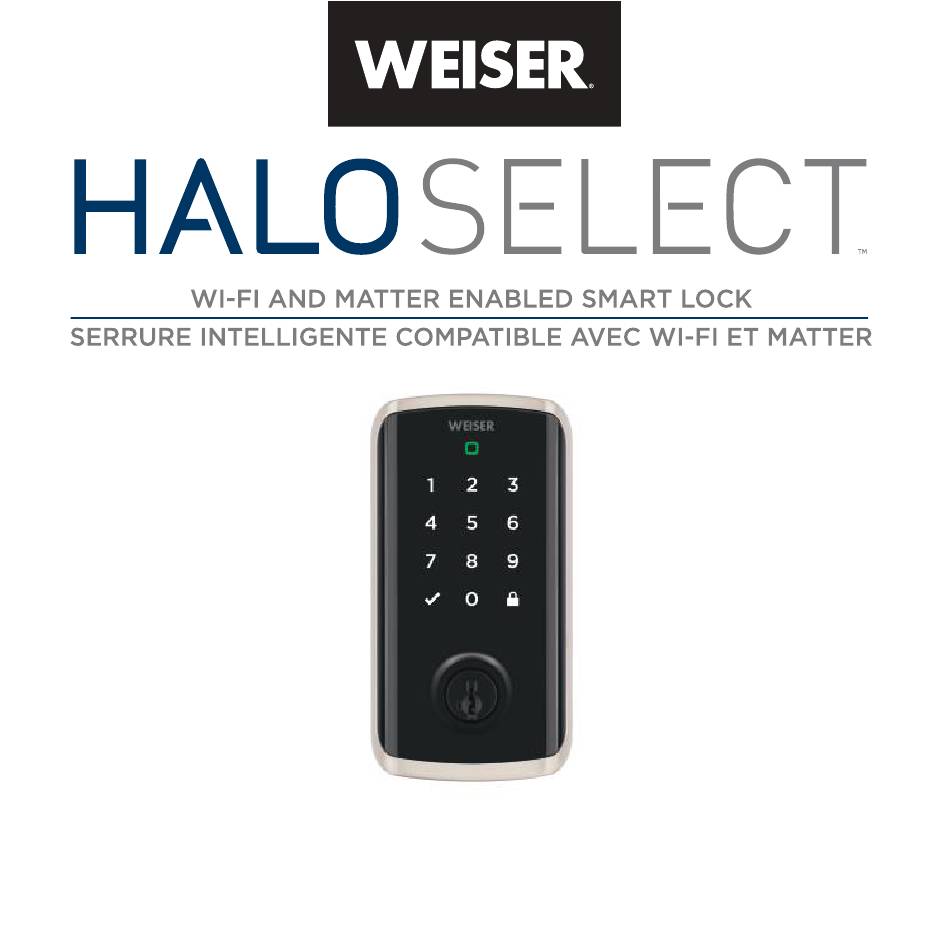

- Page 1 English 53862-001 Rev 01 Installation and Reference Guide...
- Page 2 Welcome to the Weiser family! This guide will get you up and running with your new Halo Select. If you have any issues, please visit our support center: weiserlock.com/support or call us at 1-800-501-9471.
-
Page 3: Getting Started
Getting started For an interactive version of this installation guide, please download the Weiser app: weiserlock.com/app... - Page 5 Table of contents Parts in the box ..........4 Required tools ..........5 Installation ............7 Download the app ........17 Reference guide ..........19...
-
Page 6: Parts In The Box
Parts in the box Exterior assembly Interior assembly Interior cover 03809 Batteries Latch A Latch B 52531 Strikes Door sensor magnet... -
Page 7: Required Tools
Required 64844 tools Mounting plate 52502 Keys Phillips head SmartKey™ screwdriver Ruler tool No electric drills... -
Page 8: Installation
Installation... - Page 9 Measure door thickness 1-3/4” to 2” (44mm - 51mm) If door thickness is greater than 2” (51mm) contact Weiser customer service at 1-800-501-9471. Your installation will require a thick door installation kit.
- Page 10 Remove your existing deadbolt 1-3/4” to 2” (44mm - 51mm) Your new lock will only support a door thickness 2-1/8” of 1-3/4” to 2” (44mm to (54mm) 51mm) and a door bore hole diameter of 2-1/8” (54mm). If drilling a new door, use the supplied template and instructions available at: weiserlock.com/doorprep...
- Page 11 Install the latch Extend the latch bolt. Instructions for latch B UP is on top. 03809* (2X) If the D-shaped hole is not centered in the bore hole, rotate the latch face to extend the latch. *Use the longer screws if the holes are worn out.
- Page 12 Install the strike and sensor magnet DOOR JAMB 46780* (4X) 1" (25 mm) Install the longer hole depth screws closest to the door jamb. Peel the liner Place magnet from magnet. above the Press strike. 3/4” firmly Ensure (20mm) for 10 surface is seconds.
- Page 13 Install the exterior assembly [OUTSIDE] Cable goes under the latch.
- Page 14 [INSIDE] [INSIDE] Keep parallel to the door edge Tighten the screws evenly. Tighten the screws evenly. DO NOT DO NOT over-tighten. 64844 64844 (2X) (2X) [OUTSIDE] Route the cable Insert the key and through the bottom test the latch. If the hole of the mounting latch does not extend plate.
- Page 15 Install the interior assembly Remove the interior cover from the Make sure to remove the interior assembly. battery pack before installing interior assembly. Press down on tab to release the battery pack, and pull out. If the turnpiece is not pointing up, rotate the turnpiece until it’s in a vertical position.
- Page 16 Connect the cable. Ensure a tight cable connection. Secure the interior assembly onto the mounting plate. Lay cable flat inside the bottom of the interior housing. 52502 (2X) Ensure the spindle fully engages with the turnpiece shaft. Ensure cable remains [INSIDE] connected.
- Page 17 Install batteries and battery pack With the door open, install the battery pack. NOTE: Lock must be installed on the door Insert 4 AA batteries (included) before inserting the batteries. into the battery pack. Ensure correct polarity. Use new, non-rechargeable alkaline batteries only.
- Page 18 Download the Weiser app & create an account to complete set up...
- Page 19 Follow the set up instructions in the Weiser app to complete your lock set up. weiserlock.com/app The Weiser app is needed to use this lock. If this lock was professionally installed (or installed by someone other than the homeowner), make sure...
-
Page 20: Reference Guide
Reference Guide... - Page 21 Locked Unlocked To unlock your door, enter your access To lock your door, press the lock icon. code. The bolt will retract, then the screen The bolt will extend, then the screen will display the Unlocked LED Indicator and will display the Locked LED Indicator play the unlocked tone.
- Page 22 SmartKey® Re-key Re-key the lock to work with your existing key by following the SmartKey® Re-key instructions. NOTE: If Auto-Lock is enabled, remove the battery pack before re-keying your lock.
- Page 23 Exterior LED Indicators Alternating Amber: Green: Red flashing: Locked Unlocked Lock Jammed Red: Red: Red: Lockout Low Battery Invalid Credentials...
- Page 24 Interior Status LED Indicators Green Amber Slow Blinking: Slow Blinking: Unlocked Locked Blinking: Low Battery...
- Page 25 • reset lock settings to default • you have lost your phone • lock will show as o ine in the Weiser App • you are troubleshooting the • lock will be deactivated and lock will need to be set up as new 1.
- Page 26 3. After 30 seconds, the Status LED 4. Press the Programming Button light will flash RED and lock will once within 5 seconds of the beep. Release the Programming Status LED light displaying RED to Button. confirm factory reset. Status 5.
-
Page 27: Troubleshooting
Halo Select at a Glance Exterior Interior (cover removed) Connectivity Icon Warning Icon Battery Status Icon Button A Keypad Pairing Programming Button Button Checkmark Icon Lock Keyway Icon SmartKey™ tool access Troubleshooting If you have any issues, please visit our support center: weiserlock.com/support or call us at 1-800-501-9471. - Page 28 Important Safeguards 1.. Read all instructions in their entirety. 5. If using the Auto-Lock features, make sure you have your smartphone or standard key with you 2. Familiarize yourself with all warning and to prevent locking yourself out. caution statements. 6.
