LEFT-HAND SHIFTER ASSEMBLY
A)
Tip: Slotted holes in Shifter Arm mount allow for
slight angle adjustments in later stage of install.
01

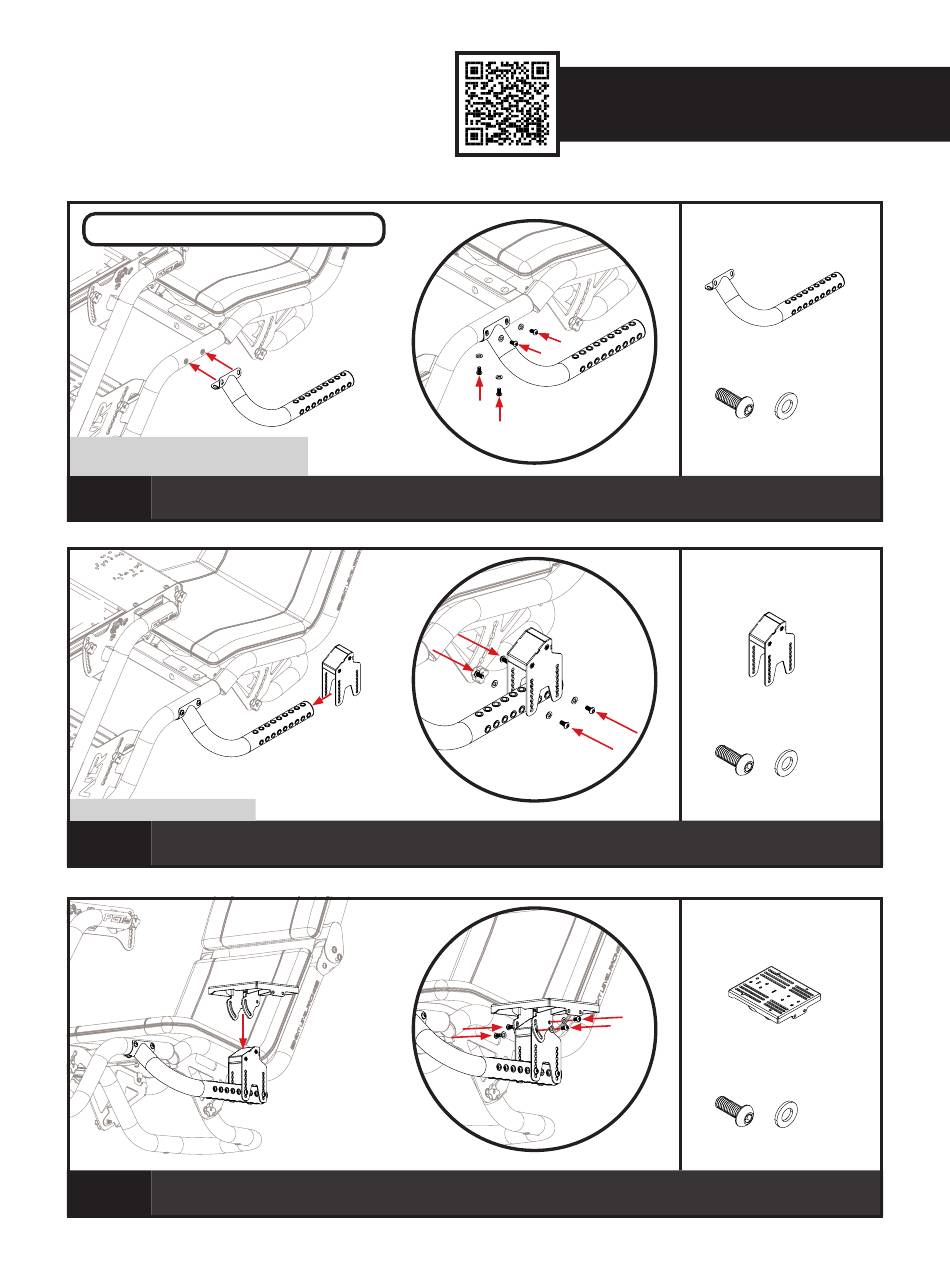

A) Align the mounting holes on the Shifter Arm with the inserts on the side of the F-GT Pro cockpit.
B) Bolt through into inserts and secure using M8 Bolts and Washers.
A)
Tip: Note orientation of Shifter Mount.
02 A) Align the mounting holes on the Shifter Mount with the desired inserts on the Shifter Arm.
B) Bolt through into inserts and secure using M8 Bolts and Washers.
A)
03
A) Align the mounting holes on the Shifter & Handbrake Plate with the inserts on the Shifter Mount.
B) Bolt through into inserts and secure using M8 Bolts and Washers.
B)
B)
B)
7
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 1 x Shifter Arm
• • 4 x M8 16mm Button Head Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Shifter Mount
• • 4 x M8 16mm Button Head Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Shifter & Handbrake Plate
• • 4 x M8 16mm Button Head Bolts
• • 4 x M8 Washers
