Summary of Contents for Bartscher 190031UK

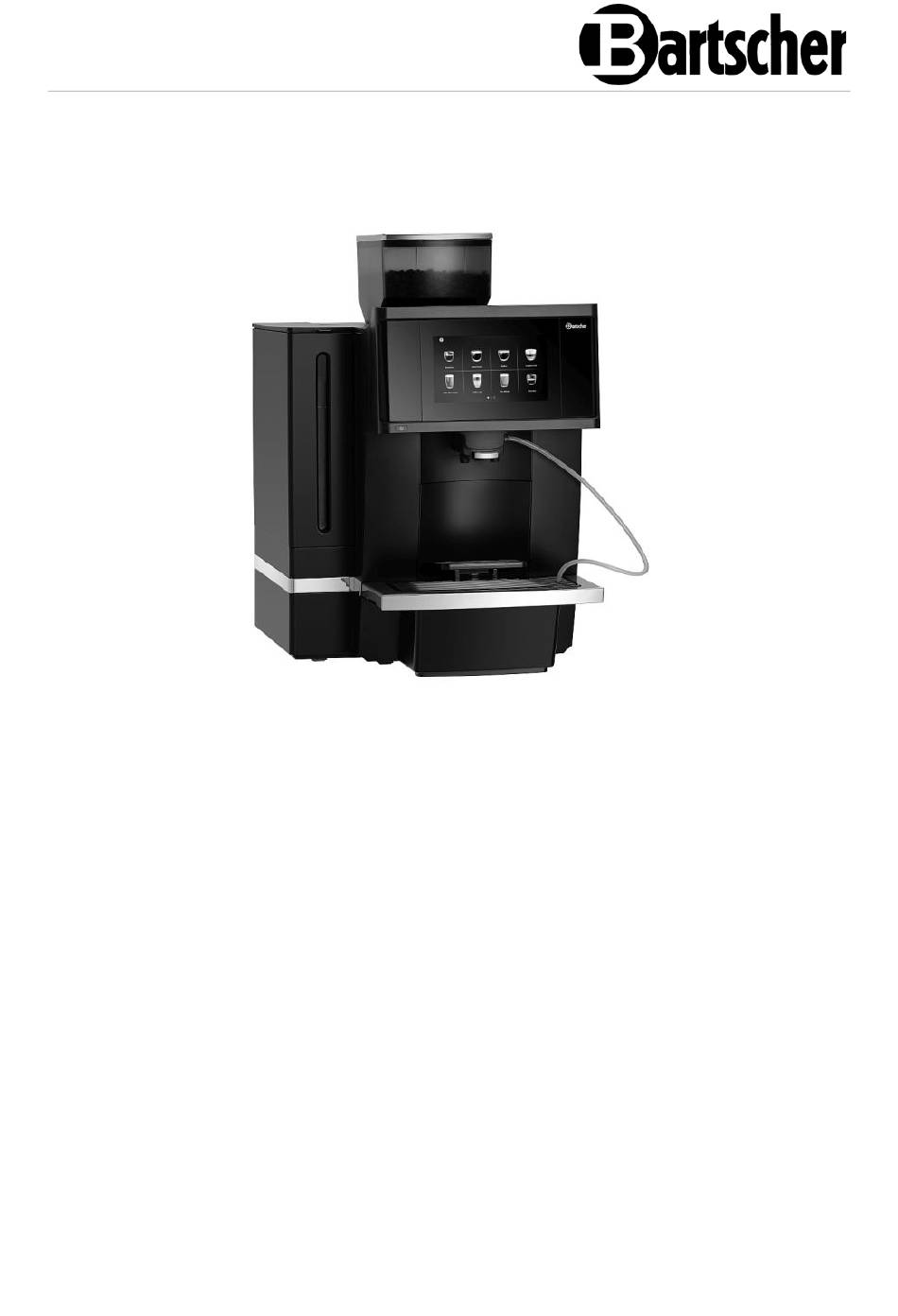

  • Page 1 KV1 Comfort 190031UK...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-10-22...

  • Page 3: Table Of Contents

    List of Components of the Appliance ............. 12 Installation and operation ................14 Installation ....................14 Operation ....................17 Cleaning and Descaling ................29 Safety Instructions for Cleaning ............. 29 Cleaning ....................29 Descaling ....................38 Possible Malfunctions .................. 43 Disposal ....................... 44 190031UK 1 / 44...

  • Page 4: Safety

    You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 44 190031UK...

  • Page 5: Safety Instructions

    Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 190031UK 3 / 44...
  • Page 6 Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. • You may transport and clean the appliance after it cools down entirely. • It is prohibited to sprinkle hot surfaces with cold water or flammable liquids. 4 / 44 190031UK...
  • Page 7 Children should be supervised to ensure that they are not playing with or switching on the appliance. Improper use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used in a technically flawless condition, providing for safe use. 190031UK 5 / 44...

  • Page 8: Intended Use

    Failure to follow/disregard the instructions and all related information • Unauthorized structural or technical changes to the device • Engaging insufficiently trained and insufficiently qualified personnel • Operation with defective or incorrectly installed safety and protective devices • Inadequate maintenance or cleaning 6 / 44 190031UK...

  • Page 9: Copyright Protection

    Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 190031UK 7 / 44...

  • Page 10: Transport, Packaging And Storage

    – in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 44 190031UK...

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Automatic coffee machine KV1 Name: Comfort 190031UK Item No.: Material: Plastic Grinder material: Steel Number of brewing unit groups: Water tank volume, in l: Number of bean containers Content bean container, in g: 1.000...
  • Page 12 ON/OFF switch • Hot water function • Hot milk function • Milk frother • Cleaning program • Dregs container is dishwasher safe • Ground coffee option: no • 2 cups function • Water supply: 3 options 10 / 44 190031UK...

  • Page 13: Functions Of The Appliance

    Functions of the Appliance The appliance is designed for preparing various coffee beverages, for example: coffee, espresso, cappuccino, or latte macchiato, with the use of coffee beans and cold water, and it is ideal for cafés, cafeterias and offices. 190031UK 11 / 44...

  • Page 14: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance 12 / 44 190031UK...
  • Page 15 Water pressure: 1 - 6 bar (preset to 3 bar) Connection: 3/4" Operating temperature max.: 65 °C Incoming pressure max.: 16 bar Material: brass, chrome-plated Dimensions: W 95 x D 75 x H 50 Weight: 0.4 kg 190031UK 13 / 44...

  • Page 16: Installation And Operation

    Never place the appliance in humid or wet environment. • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • When selecting the installation site, please consider the following items: 14 / 44 190031UK...
  • Page 17 (which is located at the same height as the appliance). In order to utilise the connection, consider the following information: – max. input water pressure is 3 bar – min. input water pressure is 1 bar 190031UK 15 / 44...
  • Page 18 (with 1/2" thread) with the water mains system connection. Step 2: Setting the water supply mode 2. In 'Machine setting' menu, select 'Water supply mode' option. 16 / 44 190031UK...

  • Page 19: Operation

    Always store coffee beans in dry, shaded place. Humid beans may damage the grinder. • Do not keep coffee beans in the coffee container if the appliance is not to be used for a longer period of time. Coffee beans may attract humidity and clog the grinder. 190031UK 17 / 44...
  • Page 20 This process cannot be omitted. WARNING! Risk of burns! During the cleaning process, hot water flows from the coffee outlet onto the drip tray. Avoid contact with the outflowing hot water. 18 / 44 190031UK...
  • Page 21 Press the setting button and hold for 3 seconds to go to the short-cut access menu and introduce the necessary settings immediately. By swiping the short-cut access button left or right, you may go to the next beverage selection. 190031UK 19 / 44...
  • Page 22 4. For 'Water supply mode' select one of the connection methods: – water tank – fixed water connection – external water tank 5. To end with, press 'Back' button. 20 / 44 190031UK...
  • Page 23 9. To end with, press 'Back' button. 10. For 'Individual settings', carry out the requested settings. 11. To end with, press 'Back' button. 12. In 'Machine setting' menu, select 'Automatic switch on/off' option. 190031UK 21 / 44...
  • Page 24 The beverage selection will appear on the display. 18. Press the selected beverage icon, to set the beverage's parameters. 19. Press the setting button, located at the top right, and hold it for 3 seconds, to introduce subsequent settings. 22 / 44 190031UK...
  • Page 25 2. Use the '<' and '>' setting buttons, and execute subsequent beverage settings, e.g. coffee strength, amount of hot milk, amount per cup. This setting is not stored for subsequent use. 3. To interrupt the setting, press 'Cancel' button. 190031UK 23 / 44...
  • Page 26 3 seconds, to go to the setting menu. 3. Introduce the requested settings. The following settings are available: Machine setting, Maintenance settings, Statistics, Advertisement settings, Safety, Data protection, etc. 24 / 44 190031UK...
  • Page 27 The appliance switches into Standby mode, when no settings have been introduced for a minute. The video may be played in Standby mode. 3. In 'AD-Standby', select one of the options to store the video. 190031UK 25 / 44...
  • Page 28 Installation and operation 4. Select video and press 'OK' (only MP4 format is supported). Setting 'Welcome' Message 1. In 'Advertisement setting' menu, select 'AD- Welcome' option. 26 / 44 190031UK...
  • Page 29 Installation and operation 2. Then, select one of the options for storing video. 3. Select video and press 'OK' (only MP4 format is supported). 190031UK 27 / 44...
  • Page 30 Setting 'AD-Making beverage' Message 1. In 'Advertisement setting' menu, select 'AD-Making beverage' option. Setting 'AD-Complete' Message 1. In 'Advertisement setting' menu, select 'AD-Complete' option. 2. Search for an image. The image must be JPEG or PNG format. 28 / 44 190031UK...

  • Page 31: Cleaning And Descaling

    After a longer period of use, some ground coffee will build up in the brewing unit. 1. Remove the remaining ground coffee, cleaning the brewing unit thoroughly. 2. Use the right cleaning tablets to clean the brewing unit. The cleaning process of the brewing unit lasts approx. 20 minutes. 190031UK 29 / 44...
  • Page 32 4. Remove the drip tray and the dregs container, empty them and reinstall it in the appliance. 5. Open the grinder cover. 6. Place a cleaning tablet in the pit. 7. Reinstall the cover and press 'OK' button to confirm. 30 / 44 190031UK...
  • Page 33 Cleaning the Milk System 1. Clean the milk system daily. 2. In a separate container, prepare a solution of water and commercially available cleaning agent for coffee machines milk systems. 3. Observe indications on the packaging of the agent. 190031UK 31 / 44...
  • Page 34 6. Introduce the milk hose into the container with milk system cleaning agent solution. 7. Clean the container with the cleaning agent. 8. Fill the container with fresh potable water, in order to rinse the milk system. 32 / 44 190031UK...
  • Page 35 Cleaning the milk frother 1. The milk frother should be cleaned 3. Remove the milk hose from the milk daily. frother. 2. Press it simultaneously at both sides and carefully remove from the appliance. 190031UK 33 / 44...
  • Page 36 6. Wash the milk hose carefully under running water, allowing water to run also through the milk hose. 7. Reassemble the milk frother and reinstall it in the appliance. 8. Secure the milk hose on the milk frother. 34 / 44 190031UK...
  • Page 37 2. Clean the metal filter manually, using a soft cloth or a soft brush and inserting it carefully through the front opening. 3. When the filter is clean, reinsert the drip tray and the dregs container into the appliance. 4. Restart the appliance, observing indications in 'Starting the Appliance' sections. 190031UK 35 / 44...
  • Page 38 When the drip tray is full, the display shows the 'Drip tray full' and 'Empty the drip tray' messages. 7. Remove the drip tray and empty it. 8. Wash the drip tray and drip grate with warm water. 9. Reinstall the removed elements after cleaning. 36 / 44 190031UK...
  • Page 39 2. Always clean the coffee container with a dry cloth or a paper towel. 3. Reinsert the cover. 4. Never allow the coffee container cover to fall. Should the cover get damaged, it must be replaced. 190031UK 37 / 44...

  • Page 40: Descaling

    The entire descaling process lasts approx. 40 minutes. If after a certain period of time, a certain level of deposits is reached, the display will start showing, alternately, the following messages: 'Descaling' or 'Rinsing'. 4. In settings menu, select 'Maintenance', and then 'Descaling'. 38 / 44 190031UK...
  • Page 41 Observe the indications on the packaging. 8. Pour water into the water tank, and reinstall the tank. 9. Press 'OK' button to confirm. 10. Remove the drip tray, empty it and reinstall it in the appliance. 190031UK 39 / 44...
  • Page 42 15. Clean those elements and dry them. 16. To end with, reinsert the dregs container and the drip tray in the appliance. When the descaling process is complete, the appliance switches to the settings menu. 40 / 44 190031UK...
  • Page 43 After the water supply system is emptied, wipe the appliance carefully. 1. Make sure the appliance is in beverage setting status mode. 2. Press the setting mode and hold it for at least 3 seconds, to go to the settings menu. 190031UK 41 / 44...
  • Page 44 7. After it switches off, remove the drip tray, and then empty and clean it. 8. After the water system is emptied, wipe the appliance carefully. 9. When re-starting the appliance, perform all the steps described in sections 'Preparation of the Appliance' and 'Starting the Appliance'. 42 / 44 190031UK...

  • Page 45: Possible Malfunctions

    Install the drip tray in the and the beverage appliance correctly preparation functions are not operating System empty Not enough water in the Press the 'OK' button, to appliance water supply confirm hose, and the beverage preparation functions are not operating 190031UK 43 / 44...

  • Page 46: Disposal

    You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 44 / 44 190031UK...
