User Guide
GETTING STARTED
EV EMULATOR TESTING
This test procedure uses an EV emulator to control the charge
control state machine with the control pilot (CP) and proximity pilot
(PP). As with the RS-485 test, the objective is to cycle through a
complete charge session and measure the power drawn by a load.
1. Connect a vehicle emulator to the control pilot (CP) and proxim-
ity pilot (PP) terminals of P24, as shown in
2. Set the EV emulator to state A (vehicle not connected).
3. If the EV emulator has a configurable current limit, it must be
set at or below 32A.
4. The protective casing must be closed before proceeding to step
5.
5. Connect the single phase input and wait for the LCD to display
the status screen.
6. Set the EV emulator to state B (vehicle connected, not ready to
charge).
7. Set the EV emulator to state C (vehicle ready to charge,
ventilation not required). The relay clicks and power begins to
flow to the load.
8. To finish the charge session, set the EV emulator back to state
B. This opens the relay and halt the flow of power to the load.

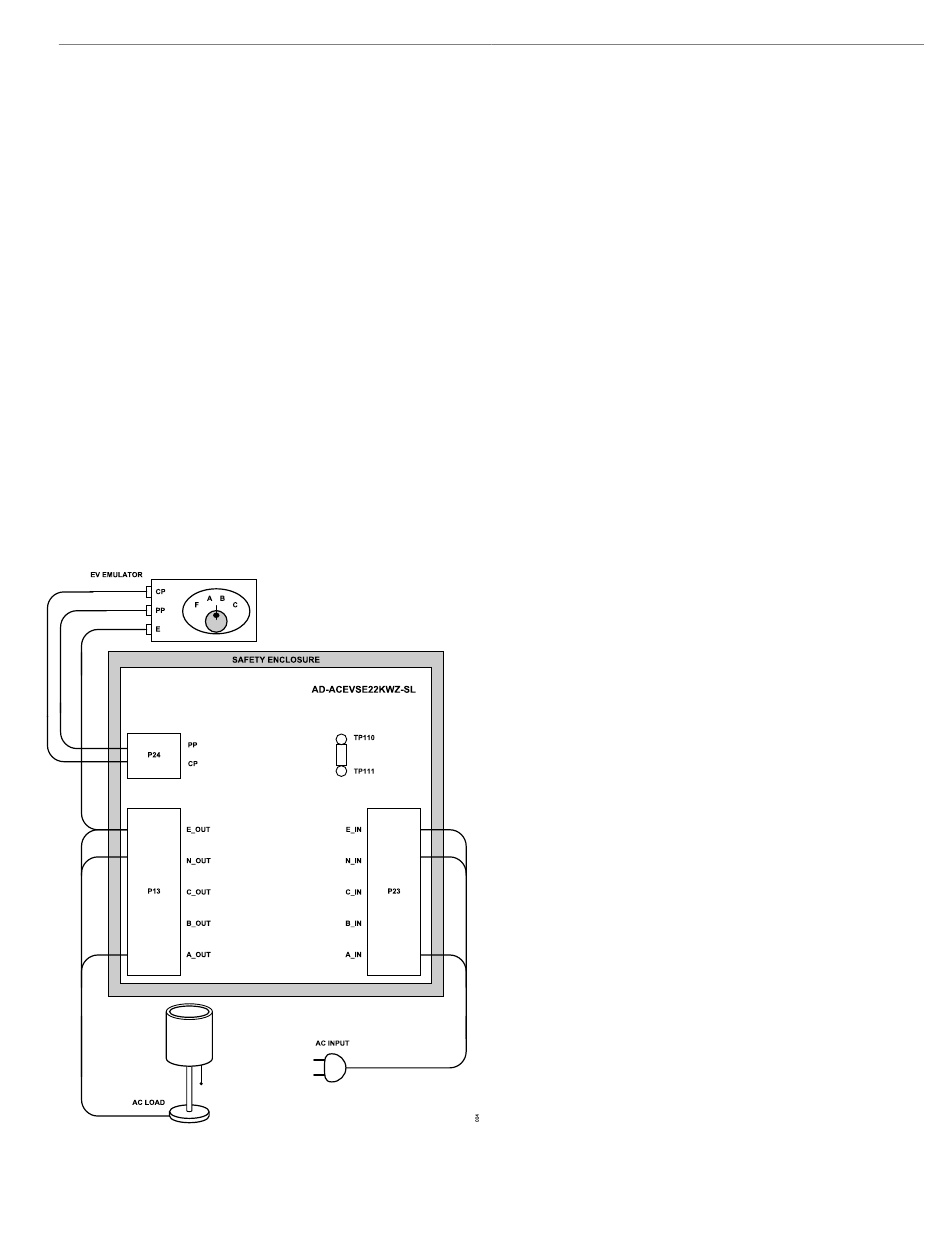

Figure 4. EV Emulator Test Setup
