BEGA 85 216 Instructions For Use

Garden and pathway luminaire

Advertisement

Quick Links

36.24 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
!
Garten- und Wegeleuchte
Garden and pathway luminaire
Luminaire de jardin et d'allée
Projekt · Project · Projet
Standort · Location · Lieu

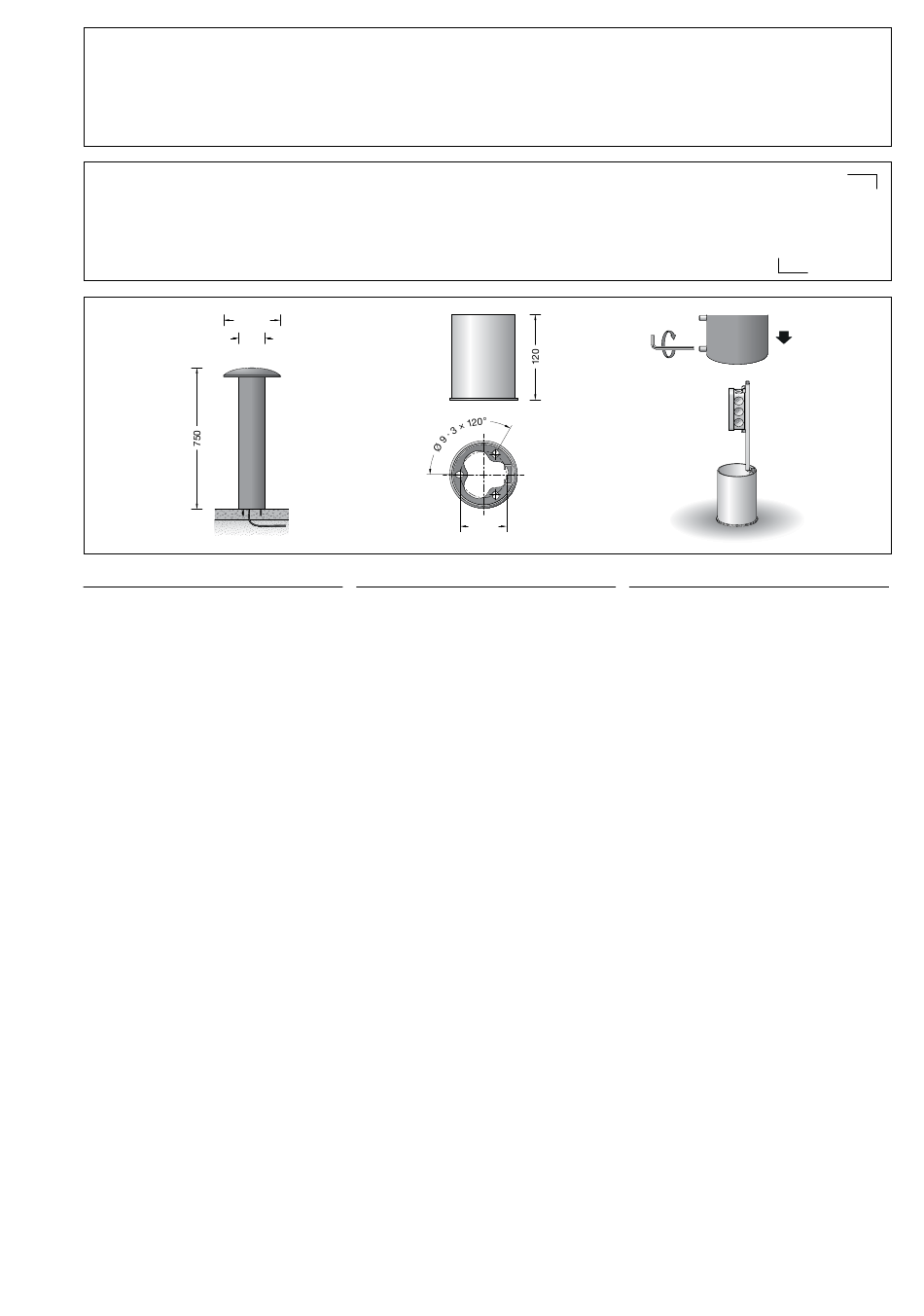

Ø 300
Ø 300
Gebrauchsanweisung
Anwendung
Garten- und Wegeleuchte mit abgeblendetem,
nach unten gerichtetem Licht für die
Beleuchtung von Einfahrten, Wegen sowie
vielen Bereichen der Landschafts- und
Gartenarchitektur.
Die Leuchte kann über eine geschaltete
Phase klassisch on/off sowie bei Dauerphase
entweder über die App BEGA Smart oder die
wibutler App gesteuert werden.
Für die wibutler-Einbindung ist zusätzlich der
wibutler pro (2. Gen.) erforderlich.
Leuchtmittel
Modul-Anschlussleistung
Leuchten-Anschlussleistung
Modul-Bezeichnung
LED-1735/83040
Farbwiedergabeindex
Bemessungstemperatur
Umgebungstemperatur
Die Farbtemperatur der Leuchte kann
wahlweise auf 3000 K oder 4000 K eingestellt
werden.
Betrieb bei Farbtemperatur
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Betrieb bei Farbtemperatur
Modul-Lichtstrom
Leuchten-Lichtstrom
Leuchten-Lichtausbeute
Einstellung der Farbtemperatur
Über die App BEGA Smart oder wibutler kann
wahlweise die Farbtemperatur auf 3000 K
oder 4000 K eingestellt und die Helligkeit der
Leuchte angepasst werden.
Im Auslieferungszustand sind 3000 K und
maximale Helligkeit voreingestellt.
Lichttechnik
Empfohlener Lichtpunktabstand 5 m
Ø 140
Ø 140
Instructions for use
Application
Garden and path luminaire with shielded, flat
beam light directed downwards for illuminating
entrances, footpaths as well as many areas of
garden and landscape architecture.
The luminaire can be used with standard on/off
controls via a switched phase, or in continuous
phase using the apps BEGA Smart or wibutler.
A wibutler integration will additionally require
the installation of wibutler pro (2nd generation).
Lamp
8,3 W
Module connected wattage
9,4 W
Luminaire connected wattage
Module designation
CRI > 80
Colour rendering index
t
= 25 °C
Rated temperature
a
t
= 50 °C
Ambient temperature
a max
The colour temperature of the luminaire can be
set optionally to 3000 K and 4000 K.
Operation at colour temperature
3000 K
Module luminous flux
1470 lm
Luminaire luminous flux
596 lm
Luminaire luminous efficiency
63,4 lm / W
Operation at colour temperature
4000 K
Module luminous flux
1560 lm
Luminaire luminous flux
632 lm
Luminaire luminous efficiency
67,2 lm / W
Setting the colour temperature
The BEGA Smart or wibutler App can be
used to optionally set the color temperature to
either 3000 K or 4000 K and to adjust luminaire
brightness.
The factory settings are 3000 K and max.
brightness.
Lighting technology
Recommended light point interval 5 m
BEGA Gantenbrink-Leuchten KG · Postfach 31 60 · 58689 Menden · info @ bega.com · www.bega.com
Ø 65
Ø 65
Fiche d'utilisation
Utilisation
Luminaire de jardin et d'allée avec diffusion
défilée dirigée vers le bas pour l'éclairage de
voies d'accès, d'allées et de nombreux autres
détails architecturaux d'un jardin ou d'un
aménagement paysager.
Le luminaire peut être commandé de manière
classique on/off via une phase commutée, mais
aussi en phase continue via l'application BEGA
Smart ou l'application wibutler.
Pour l'intégration de wibutler, il faut en plus
disposer de wibutler pro (2e génération).
Source lumineuse
8.3 W
Puissance de raccordement du module 8,3 W
9.4 W
Puissance de raccord. du luminaire
LED-1735/83040
Désignation du module
CRI > 80
Indice de rendu des couleurs
t
= 25 °C
Température de référence
a
t
= 50 °C
Température d'ambiance
a max
La température de couleur des luminaires est
réglable sur 3000 K ou 4000 K au choix.
3000 K
Fonctionnement avec temp. de couleur 3000 K
1470 lm
Flux lumineux du module
596 lm
Flux lumineux du luminaire
63,4 lm / W
Rendement lum. du luminaire
4000 K
Fonctionnement avec temp. de couleur 4000 K
1560 lm
Flux lumineux du module
632 lm
Flux lumineux du luminaire
67,2 lm / W
Rendement lum. du luminaire
Réglage de la température de couleur
Via l'application BEGA Smart ou wibutler
la température de couleur peut être réglée
au choix sur 3000 K ou 4000 K et l'intensité
lumineuse être ajustée à votre convenance.
Une température de 3000 K et une luminosité
maximale sont préréglées à l'usine.
Technique d'éclairage
Espacement recommandé entre les points
lumineux 5 m
85 216
é
c
IP 65
DataMatrix
Code
9,4 W
LED-1735/83040
(IRC) > 80
t
= 25 °C
a
t
= 50 °C
a max
1470 lm
596 lm
63,4 lm / W
1560 lm
632 lm
67,2 lm / W
1 / 4
