en Installation instructions
¡ The shield must be at least 10 mm from the lowest
part of the hotplate and must be capable of with-
standing the appliance temperatures. Minimum
thickness of worktop is 30 mm.
¡ The shield material must be mdf or similar with min-
imum thickness of 12 mm.
¡ The shield overall dimensions must be 560 mm
wide x 480 mm deep.
¡ Provide cutout in right hand rear of shield of 80 mm
wide x 80 mm deep to provide for gas regulator /
LPG connection fitting.
¡ After installation of the shield the clearance around
the top and sides of shield will allow adequate vent-
ilation. Ensure the side and top clearances are not
obstructed.

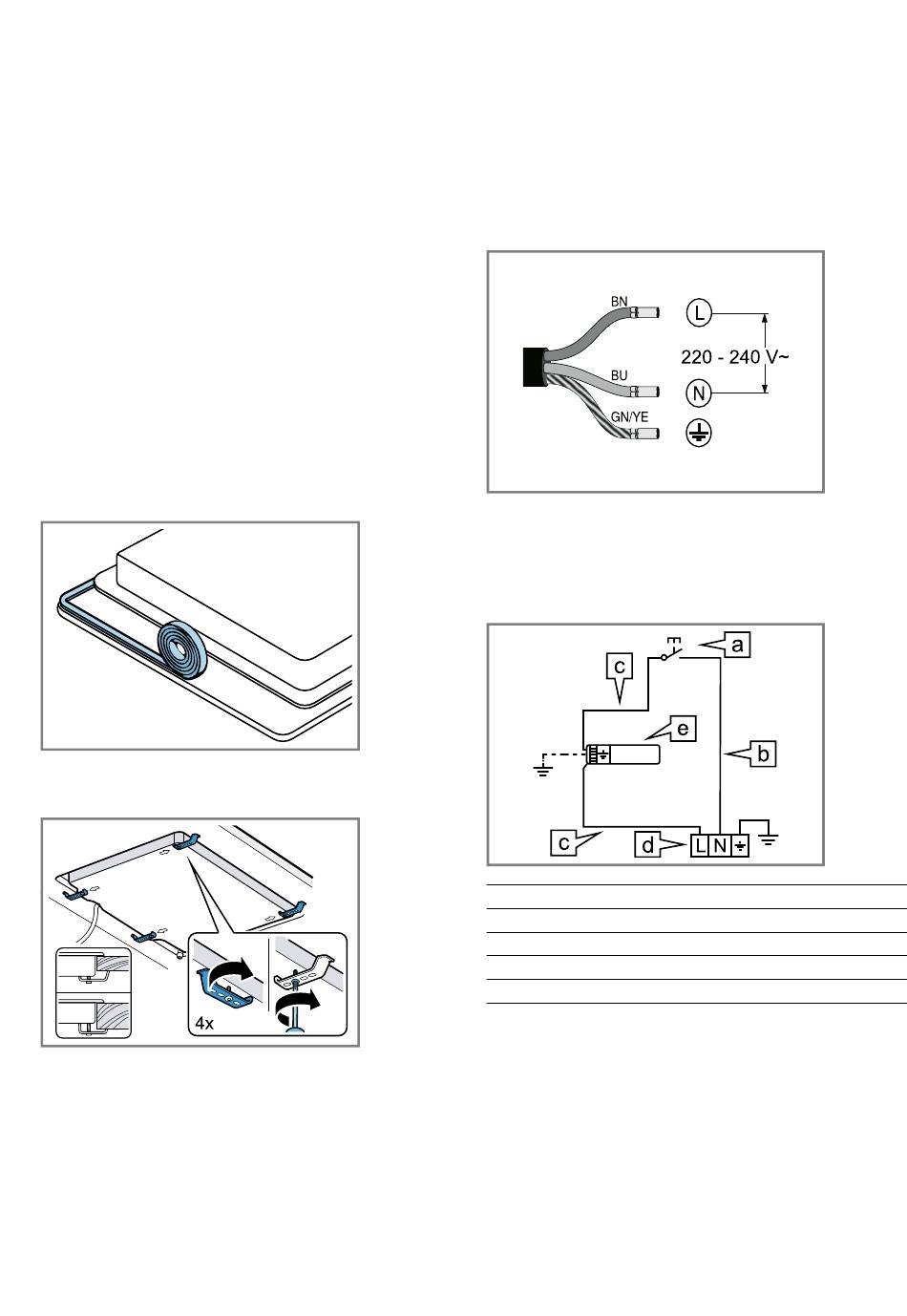

2.5 Positioning the appliance
Note: Do not use silicone to bond the appliance to the
worktop.
Position the cooktop with the upper side facing
1.
down on a flat, stable surface.
Apply the adhesive seal supplied to the lower edge
2.
of the cooktop. The adhesive seal prevents the pen-
etration of liquids.
3. Screw the brackets supplied into the specified posi-
tion so that they can turn freely.
Turn the brackets and tighten them fully.
4.
The position of the brackets depends on the work-
top thickness.
2.6 Electrical connection
Follow the instructions for electrical connection.
¡ An electrical 10 amp socket needs to be within 1 m
of the hotplate to allow electrical connection. The
socket must remain accessible after installation of
the appliance.
8
¡ This appliance is connected to the mains (240 VAC)
by means of the connecting lead. The connecting
lead must be fixed to the kitchen unit to prevent it
from coming into contact with hot parts of the cook-
top or an oven installed underneath and remain ac-
cessible after installation of the cooktop.
¡ This appliance must be earthed. When connecting
the cooktop ensure that the earth wire is connected
first and that all wires are connected to the correct
terminals.
¡ BN: Brown
¡ BU: Blue
¡ GN/YE: Green and yellow
Wiring diagram
Observe the wiring diagram.
a Switch
b Blue wire
c Brown wire
d Terminal
e Ignition module
2.7 Gas connection
Only an officially authorised technician should connect
the appliance.
Before connecting the gas
Observe any special conditions imposed by local sup-
pliers (utilities).
¡ During the planning stage, consider the position of
supply connections.
¡ The cooktop must be connected to the gas supply
with upstream connection of an isolation valve in ac-
cordance with the respectively valid regulations. We
