¡ Any other statutory regulations

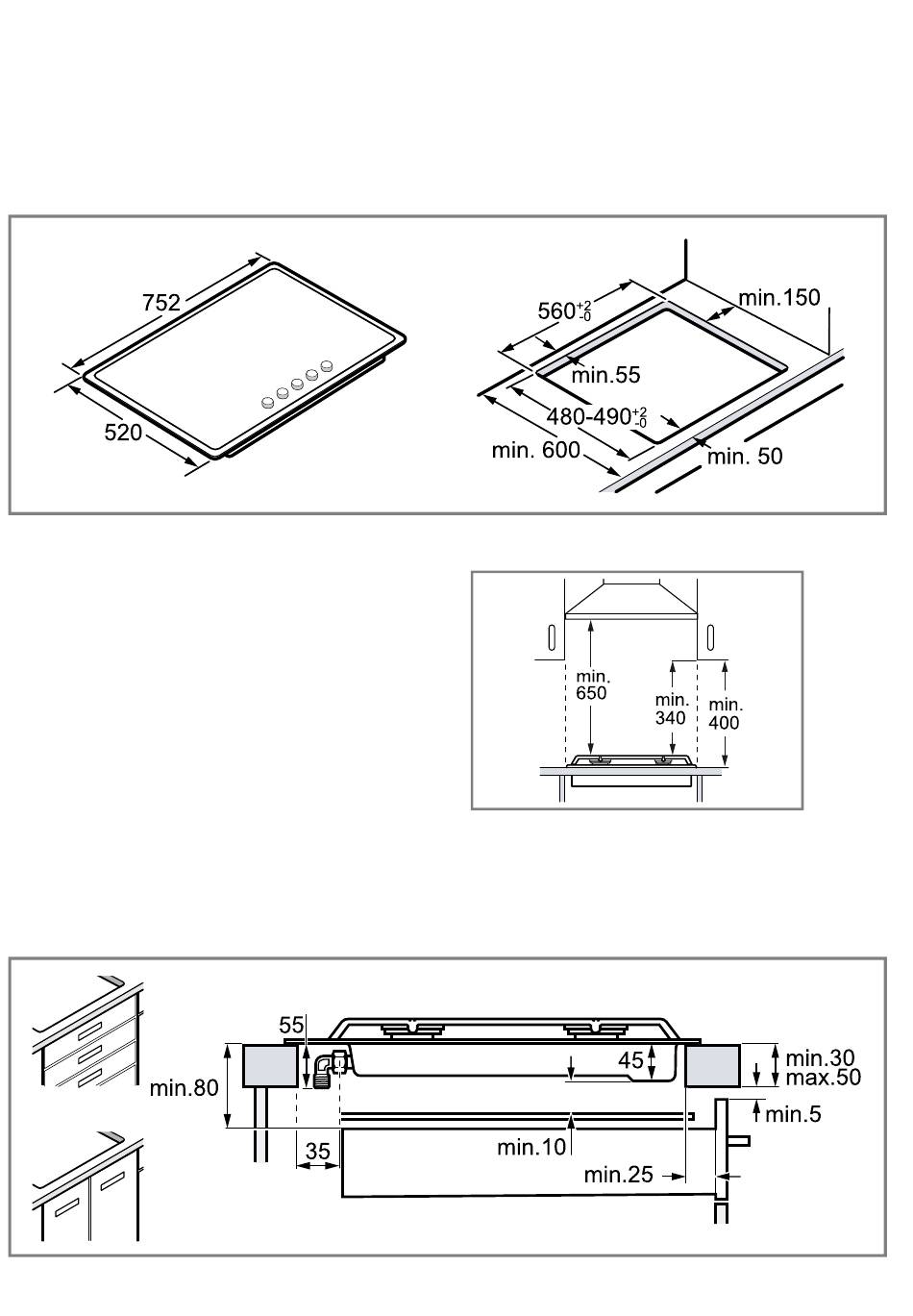

2.2 Preparing to install
These built-in cooktops are intended to be inserted in a worktop cutout.
¡ Make a cut-out in the worktop with the required di-
mensions.
¡ Seal the cut surfaces of wooden work surfaces with
a special glue seal to protect them from moisture.
¡ Any adjoining vertical wall surface situated within
200 mm from the edge of any cooktop burner must
be a suitable non-combustible material for the entire
length of the cooktop, in accordance with clause
6.10.1.2 of AS/NZS 5601.1.
2.3 Clearances
¡ A range hood fitted above the top must be installed
according to the installation instructions for the
range hood. A minimum distance of 650 mm is re-
quired for a range hood and 750 mm for an exhaust
fan.
¡ Any combustible construction above the cooktop
must be at least 650 mm above the top of the trivet
and no construction shall be within 340 mm above
the top of the burner.
2.4 Shield
If the base of the hotplate can be touched, fit a protecting shield.
¡ Height of the pan support above the worktop sur-
face: up to 60 mm.
¡ A minimum depth of 50 mm from the top of the
worktop surface must be provided for the appliance.
