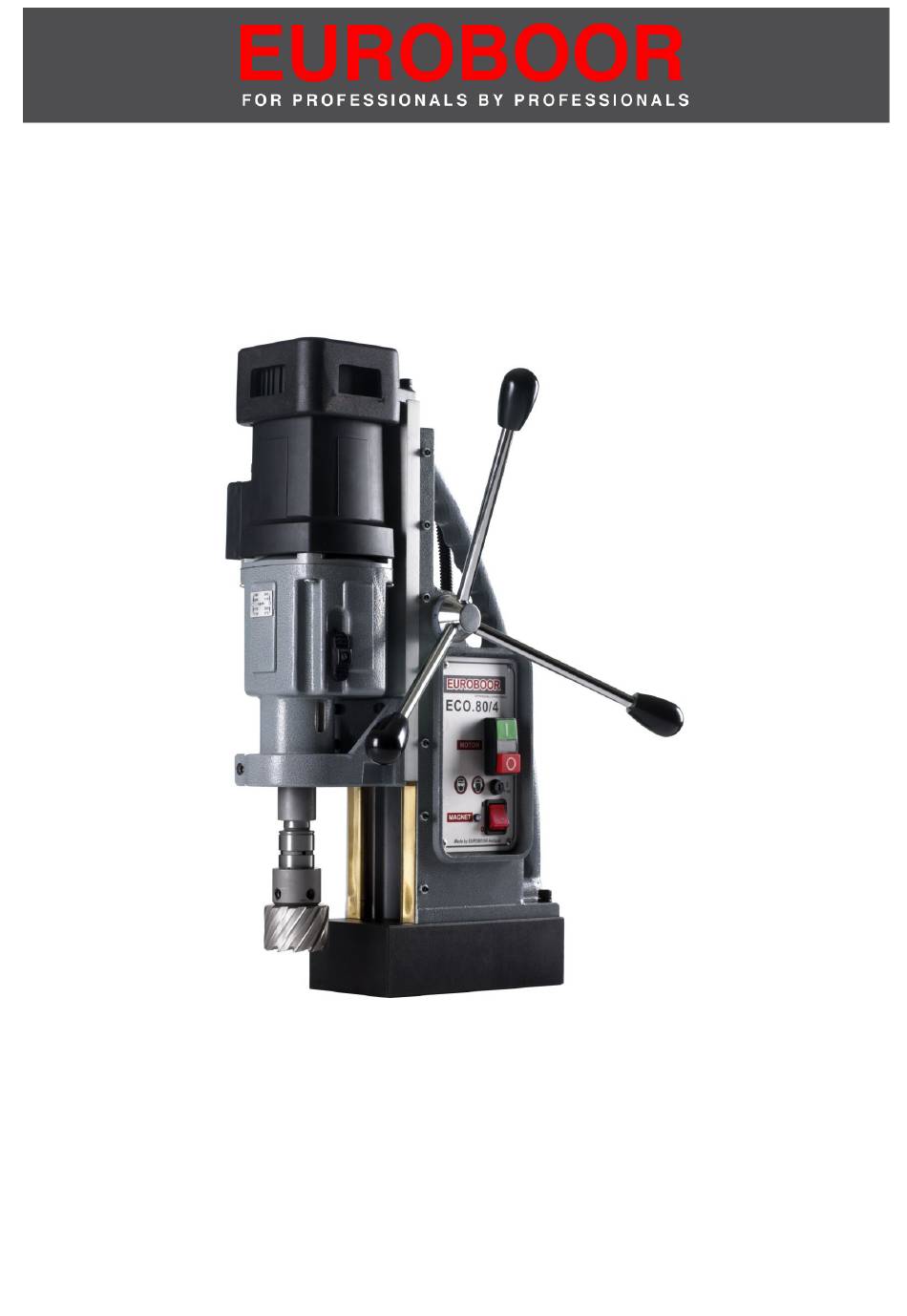

USER MANUAL
TO REDUCE THE RISK OF INJURY USER MUST READ AND UNDERSTAND INSTRUCTION MANUAL
ECO.80/4
Magnetic Drilling Machine
SERIAL NO._______________ DATE OF PURCHASE _____________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO.80/4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Euroboor ECO.80/4

  • Page 1 USER MANUAL TO REDUCE THE RISK OF INJURY USER MUST READ AND UNDERSTAND INSTRUCTION MANUAL ECO.80/4 Magnetic Drilling Machine SERIAL NO._______________ DATE OF PURCHASE _____________...
  • Page 3: Table Of Contents

    1 - Table of Contents Table of Contents …………………………………………………………………………………………………… page 1 Safety …………………………………………………………………………………………………………………….. page 2 Before Use ……………………………………………………………………………………………………………… page 3 Items Included in Delivery ………………………………………………………………………………………. page 4 The Hole Cutter Hole Cutter Selection ....................page 5 Cooling/Lubrication ....................page 6 Tool Assembly Morse Taper Assembly …………………..…………………………………………………………………...
  • Page 4: Safety

    5. Do not wear any loose clothing or jewellery that may get entangled in the moving parts of the magnetic drilling machine. 6. Use only accessories or parts that are recommended by Euroboor. 7. During drill operations, the hole cutter must be cooled and lubricated with good quality cutting or lubrication oil.
  • Page 5: Before Use

    DC current. Make sure the magnetic drilling machine is connected to a stable power supply. Euroboor do not recommend the use of a generator or other mobile power supply for power supply. Euroboor does not recommend the use of extension cables. If there is no other way, use good quality cables and keep extension cables as short as possible.
  • Page 6: The Hole Cutter

    Hole Cutter selection There are many different types of steel. It is not possible to drill all these types of steel with 1 type of cutter. Euroboor recommended the following : Euroboor+ HSS Series For drilling holes in general 37/52 steel and aluminium...
  • Page 7: Cooling/Lubrication

    Holes for cooling and lubrication oil Fixing screws of Morse Taper Euroboor recommends the use of cooling and lubrication agents. Not only do these assist in drilling but they will also lengthen the lifespan of your tools. One of the advantages of the use of hole cutters is that cooling and lubrication agent scan be supplied from the inside, so that the agents end up in the right place.
  • Page 8: Drill Chuck Assembly

    Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. Euroboor magnets have 2 coils; make sure that both coils are in contact with the material. Do not connect any other machines to the electrical outlet the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force.
  • Page 9: The Control Panel

    This LED indicator shows the generated magnetic force. 4-speed Manual Gearbox The ECO.80/4 is equipped with a 4-speed gearbox. The two gear switches makes it possible to choose 4 manual speeds. Important is that the closest mechanical gear is selected for the used cutter.
  • Page 10: Drilling

    When using your magnetic drilling machine non-horizontal or upside-down be aware that no oil, drilling compound or metal chips can fall into the motor unit. Euroboor accepts no responsibility for damage done to your machine by such action under coverage of the warranty.
  • Page 11: Maintenance

    Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by a Euroboor authorized dealer. The parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
  • Page 12: Spare Parts & Exploded View

    6 - Spare parts & Exploded view 100.0001 Frame 100.4388 Housing 100.0006 Screw 100.0391 Baffle 100.0031 Washer M8 080.4401 Inner Gear Plate 020.0096 Setting Nut 100.0458 Gasket 020.0138 Setting Screw 040.0161 Needle Bearing 100.0038 Magneet 080.4320 Double Gear 2 020.0201 Sensor 080.4321 Axle 1...
