Page 1: Eco.40S

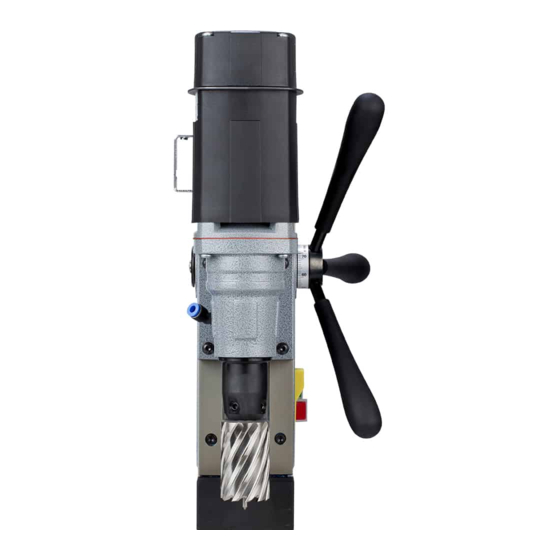

User manual V 1.0 EN Magnetic drilling machine with external motor cable and standard electromagnet ECO.40S+ Serial number: Date of purchase: Don’t forget to register your machine at: www.euroboor.com/register [ only when registered you benefit from extended warranty ]... - Page 2 Congratulations on purchasing this premium magnetic drilling machine. At Euroboor we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 3: Table Of Contents
Table of contents ECO.40S+ ............................. 1 Table of contents ......................... 3 1. Safety ............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Description and features ....................... 8 2.3 Case content .......................... -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’ , including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. - Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by Euroboor for your machine model. Accessories that are suitable for one machine may become hazardous when used on another...
-
Page 6: Specific Safety Information
• Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. Euroboor offers a wide range of well-considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: Impairment of hearing ; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
Euroboor. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features... -
Page 9: Case Content
Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and Euroboor to validate and identify the machine. For example:... -
Page 10: Technical Data
2.5 Technical data Metric Imperial Ø 12 - 40 mm Ø 7/16" - 1 9/16" Annular cutting Ø 1 - 16 mm Ø 1/16" - 5/8" Twist drilling Threading Ø 10 - 45 mm Ø 3/8" - 1 3/4" Countersinking 264 mm 10 3/8"... -
Page 11: Environmental
" Inch Unit of measure for the dimensions. Kilogram Unit of measure for the mass. Pound Unit of measure for the mass. Volt Unit of measure for the electric voltage. Ampere Unit of measure for the electric current intensity. Watt Unit of measure for the output. -
Page 12: Preparation & Adjustment
1. Make sure the flow regulator is closed; 2. Unscrew the cap; 3. Fill the container with cutting fluid; 4. Screw the cap back on. WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste. -
Page 13: Prior To Use
Your Euroboor magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. If the supply cord is damaged, it must be replaced by a specially prepared cord available at Euroboor or your Euroboor dealer. - Page 14 Useful tips – Try a few simple projects using scrap material until you develop a ‘’feel’’ for the magnetic drilling machine; – Let the machine run in for a period of eight to ten hours before starting with big operations. Do not load the machine too much during this run-in period;...
-
Page 15: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum ease of use and safety. - Page 16 We want to point out that above mentioned precautions and indicators do not guarantee that the magnet will not release from the material. Euroboor accepts no liability when it comes to the magnet indicator not functioning or functioning poorly.
-
Page 17: Switching Motor On And Off
“O”. 4.4 GYRO-TEC safety This Euroboor magnetic drilling machine is equipped with GYRO-TEC safety functionality. It features a gyroscopic sensor which detects acceleration and displacement in any direction. Whenever the machine recognizes a sudden or unwanted movement the motor will be shut down automatically by the machine’s electronics. -
Page 18: Carbon Brushes
* Disclaimer: Euroboor is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage and frequency spikes or fluctuations. -
Page 19: Tool Lubrication
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste. Make sure to use only suitable cutting lubricants. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and faster... -
Page 20: Working With Drilling Accessories
5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. - Page 21 3. Use the pilot pin to position the machine in the correct position, with the tip of the pilot pin to meet the marked center of the hole; 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece;...
-
Page 22: Twist Drills
1. Fit the twist drill: a. Straight shank twist drills Use a Weldon drill chuck adapter (such as Euroboor IBK.14, adapter 19.05 mm (3/4") Weldon external to 1/2" x 20 UNF) to fit a drill chuck and straight shank twist drill accordingly;... -
Page 23: Countersinks
Weldon shank twist drills: Directly fit a Weldon shank twist drill (such as Euroboor SPI/SSPI-series) directly to the machine; [image 5-3] 2. Precisely mark the center of the hole, and use the tip of the twist drill to position the machine in the correct position, with the tip of the twist drill to meet the marked center of the hole. -
Page 24: Maintenance
6. Maintenance Your Euroboor magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 25 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by Euroboor or an Euroboor authorised dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 26: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 27 Frame under voltage - Damaged / defective wiring - Defective magnet - Motor seriously dirty Fuse blows when magnet switch is - Damaged or defective wiring turned on - Wrong value fuse - Defective magnet switch - Defective control unit - Defective magnet Fuse blows when motor is started - Damaged or defective wiring...
-
Page 28: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views... -
Page 31: Spare Parts List
8.2 Spare parts list No. Part no. Description No. Part no. Description ECO.40S+ motor unit 040S.1001Z 220V ext. cable ECO.40S+ motor unit 030E.5037 Spring set 040S.1001ZA 110V ext. cable 036.0043 Torx screw M4.8 x 55 032.0111Z End cover 110 - 220 Volt 42 020.0471 Screw Led indicator red alarm... - Page 32 No. Part no. Description No. Part no. Description 73 020.0257 Capacitance Case ECO.40S+ with 200 040S+.2010 sticker 74 020.0017 Fuse 5 x 20 F2A Coolant tank Quick 75 020.0206 LED indicator set 201 KSP.Q2 Connect 2015 76 020.0011-1 Magnet switch Pin and knob for cooling Motor switch 220V (5- 202 KSP.P...
-
Page 33: Wiring Diagram
8.3 Wiring diagram... -
Page 34: Warranty And Service
Service To maximize the lifetime of your Euroboor machine always use service and parts from an official Euroboor distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of Euroboor products in your country.
