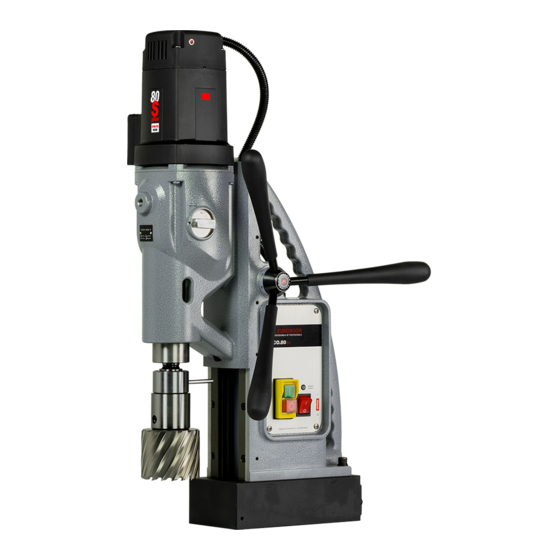

- Page 1 EUROBOOR FOR PROFESSIONALS BY PROFESSIONALS USER MANUAL ECO.80/4 Magnetic Drilling Machine SERIAL NO.____________ DATE OF PURCHASE __________...
- Page 2 Congratulations on your purchase of the Euroboor ECO.80/4 Portable Magnetic Drilling machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Euroboor BV is committed to provide you with metal cutting tools and products to help you be more productive.
- Page 3 Fig. 1 ISSUE 1/Original version/OCT 2013...
- Page 4 Symbol Term, meaning Explanation Be absolutely sure to read the enclosed Read documentation documentation such as the Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection during operation. Danger/warning/caution Observe the information in the adjacent text! European conformity symbol Confirms the conformity of the power tool with...
-
Page 5: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following. - Page 6 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Euroboor BV for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
-
Page 7: Residual Risks
ADDITIONAL SPECIFIC SAFETY RULES FOR MAGNETIC DRILLING MACHINES • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries;... - Page 8 Markings on Tool The following pictograms are shown on the tool: Read instruction manual before use. Wear ear protection in areas with noise emissions > 80 db(A). Wear eye protection. POSITION Serial number The Serial Number, which also includes the type of machine, the year and month of manufacturing and identification number, is engraved on the frame, magnet and the motor unit.
- Page 9 TECHNICAL DATA ECO.80/4 ANNULAR CUTTERS ø 12 - 80 mm TWIST DRILLS ø 1 – 31,75 mm LENGTH 365 mm WIDTH 190 mm HEIGHT 510 - 710 mm STROKE 260 mm WEIGHT 26 kg MAGNET (L x W x H)
-
Page 10: Description (Fig. 1)
Please make sure that the contacting surface for the magnet is level, clean and rust-free. Remove any varnish or primer. When working on materials that are not magnetizable, suitable fixation devices, obtainable as accessories from EUROBOOR, e. g. suction plate, vacuum plate or pipe-drilling device must be used. - Page 11 3. Fill the container with cutting fluid; 4. Screw the cap back on. WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste FITTING THE SAFETY CHAIN 1. Pass the safety chain through the opening near the grip;...
-
Page 12: Prior To Operation
Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. Euroboor magnets have 2 coils; make sure that both coils are in contact with the material. Do not connect any other machines to the electrical outlet the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force. -
Page 13: The Control Panel
TURNING MACHINE ON AND OFF THE CONTROL PANEL The control panel on your magnetic drilling machine is designed for maximum operating facility and safety. 1 - The Motor Switch: This switch is used to switch the motor unit ON and OFF; 2 - The Magnet LED Indicator: This LED indicator shows the generated magnetic force;... -
Page 14: Drilling A Hole
4-speed Manual Gearbox The ECO.80/4 is equipped with a 4-speed gearbox. The two gear switches makes it possible to choose 4 manual speeds. Important is that the closest mechanical gear is selected for the used cutter. 385 RPM: left switch up, right switch down... - Page 15 DRILLING WITH ANNULAR CUTTERS Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole.
-
Page 16: Maintenance
Consult your dealer for further information on the appropriate accessories. MAINTENANCE Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. - Page 17 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorized dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 18: Troubleshooting
TROUBLE SHOOTING Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work - Carbon brushes are stuck or worn out... -
Page 19: Protecting The Environment
Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your EUROBOOR product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. - Page 20 SPARE PART LIST AND EXPLODED VIEW of ECO.80/4 Part number Description Part number Description 080.1001 Motor unit 220-240V 080.1014 Gear box 220 v 080.1001A Motor unit 110-120V 080.1014A gear box 110 v 100.0306 Screw BK4,8x45 040.0286 Gear switch 100.0322 End Cover 100.0459...
- Page 21 Part number Description 020.1001 Fuse holder 5x20 93A 020.0017 Fuse 5x20 F2A 020.0257 Capacitance 080.0016BX.3A Front panel plate 020.0206 LED indicator set 020.0011 Magnet switch 030E.0091/Y Motor switch (5-pin) 220-240V 030E.0092/Y Motor switch (5-pin) 110-120V 020.0151 Magnet spring ball (set) 103 100.0006 Screw SSM8x25 104 020.0201/2...
- Page 22 EXPLODED VIEW of ECO.80/4 ISSUE 1/Original version/OCT 2013 22 22...
- Page 23 ISSUE 1/Original version/OCT 2013 23 23...
- Page 24 ISSUE 1/Original version/OCT 2013 24 24...
-
Page 25: Ce/Emc Declaration Of Conformity
Kryptonstraat 110 Zoetermeer The Netherlands that the following Appliance complies with the appropriate basic safety and health requirements of the EC Directives based on its design and type, as brought into circulation by EUROBOOR BV. Designation/ function Magnetic Drilling Machine Type ECO.80/4...
