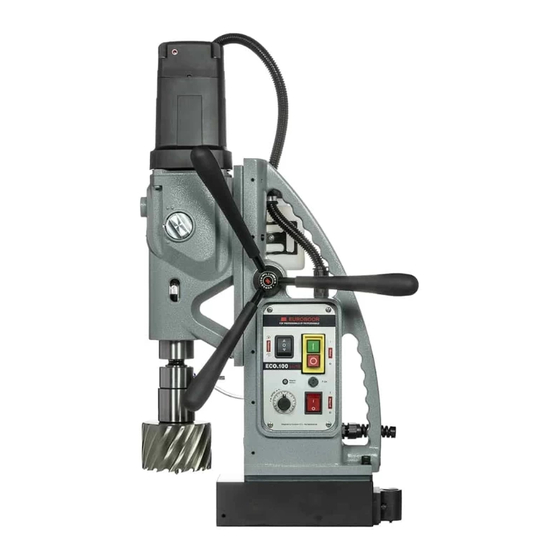

Euroboor ECO.100S+/T User Manual

Magnetic drilling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
V 1.2 EN | August 2020
Magnetic drilling machine
ECO.100

with fixed base

ECO.100

with swivel base

Serial number:
Date of purchase:
[ only when registered you benefit from extended warranty ]
/
Don't forget to register your machine at:
www.euroboor.com/register
/
S+/T
S+/TD
/
/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO.100S+/T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Euroboor ECO.100S+/T

Summary of Contents for Euroboor ECO.100S+/T

  • Page 1: Eco.100S+/T

    V 1.2 EN | August 2020 Magnetic drilling machine ECO.100 S+/T with fixed base ECO.100 S+/TD with swivel base Serial number: Date of purchase: Don’t forget to register your machine at: www.euroboor.com/register [ only when registered you benefit from extended warranty ]...
  • Page 2 Congratulations on purchasing this premium magnetic drilling machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.

  • Page 3: Table Of Contents

    Table of contents ECO.100S+/T ..........................1 with fixed base ..........................1 ECO.100S+/TD ..........................1 with swivel base ........................... 1 Table of contents ......................... 3 1. Safety ............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2.

  • Page 4: Safety

    1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION.
  • Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by EUROBOOR for your machine model. Accessories that are suitable for one machine may become hazardous when used on another...

  • Page 6: Specific Safety Information

    • Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. EUROBOOR offers a wide range of well-considered cooling and lubrication products to match your requirements;...
  • Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: Impairment of hearing; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...

  • Page 8: Description

    EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. 2.2 Description and features...

  • Page 9: Case Content

    Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and EUROBOOR to validate and identify the machine. For example:...

  • Page 10: Technical Data

    Ø 10 - 105 mm Ø 3/8" – 4 1/8" Length 365 mm 14 3/8" Width 310 mm 12 3/16" Height (ECO.100S+/T) 525 - 785 mm 20 11/16" - 30 15/16" 534 - 794 mm 21" - 31 1/4" Height (ECO.100S+/TD) Stroke 260 mm 10 1/4"...

  • Page 11: Symbols

    2.6 Symbols Symbol Term, meaning Explanation Be sure to read the documentation in this user Read documentation manual and specifically the “General safety instructions” and ‘’Specific safety information’’ Wear ear protection Use ear protection during operation Wear eye protection Use eye protection during operation Danger/warning/caution Read and apply the information in the adjacent text!

  • Page 12: Environmental

    2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

  • Page 13: Preparation & Adjustment

    3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn machine off and disconnect from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury.

  • Page 14: Prior To Use

    The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Your EUROBOOR magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required.
  • Page 15 Extension cable If an extension cable is required, use an approved 3-core extension cable suitable for the power input of this machine (see technical data).The minimum conductor size is 1.5 mm²; the maximum length is 30 metre. When using a cable reel, always unwind the cable completely. Useful tips –...

  • Page 16: Using The Machine

    4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum ease of use and safety.
  • Page 17 [image 4-2] The electromagnet will work best on surfaces of at least 10 mm (3/8") thickness. When the electromagnet is not able to create a good enough magnetic field, this may be caused by: Surface not being flat; Workpiece is not magnetisable (e.g. aluminium); Workpiece is coated or painted;...

  • Page 18: Morse Taper Spindle

    We want to point out that above mentioned precautions and indicators do not guarantee that the magnet will not release from the material. EUROBOOR accepts no liability when it comes to the magnet indicator not functioning or functioning poorly. Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine.

  • Page 19: 4-Speed Manual Gearbox

    4. To remove the Morse taper spindle: Switch of the motor; Rotate the mechanical gear switch to neutral (see paragraph 4.3 Gearbox); Rotate the output shaft until the slots on the shaft align with the slots on the gearbox; Gently tap the supplied drift into the slots to push the Morse taper arbor out. 4.3 4-Speed manual gearbox This machine is equipped with a 4-speed gearbox.

  • Page 20: Motor Rotation

    4.9 GYRO-TEC safety This EUROBOOR magnetic drilling machine is equipped with GYRO-TEC safety functionality. It features a gyroscopic sensor which detects acceleration and displacement in any direction. Whenever the machine recognises a sudden or unwanted movement the motor will be shut down automatically by the machine’s electronics.

  • Page 21: Power Surge And Fluctuation Protection

    * Disclaimer: EUROBOOR is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage and frequency spikes or fluctuations.

  • Page 22: Tool Lubrication

    WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use EUROBOOR cutting paste or spray. Make sure to use only suitable cutting lubricants. EUROBOOR offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and...

  • Page 23: Working With Drilling Accessories

    5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole.
  • Page 24 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece; 5. Fill the holes of the spindle with oil; 6. Switch the motor on and allow it to run at the required speed; 7.

  • Page 25: Twist Drills

    5.2 Twist drills 1. Remove the Morse taper arbor (see paragraph 4.3 Gearbox); 2. Fit the twist drill: a. Straight shank twist drills; [image 5-2] b. Morse taper shank twist drills; [image 5-3] Morse taper 2 [image 5-4] Morse taper 3 3.

  • Page 26: Machine Taps

    Steps 4-12: see paragraph 5.1 Annular cutters. Make sure the machine runs at maximum speed for twist drills! 5.3 Machine taps The ECO.55S+/T model is also suited for counter clockwise rotation and can therefore also be used for cutting threads. Proceed as follows for cutting threads: 1.

  • Page 27: Countersinks

    Switch on the machine again and allow the machine tap to come completely out of the work piece. Then guide the motor unit slide upwards with the feed handles to avoid damaging the start of the thread. Do not let your tap push up the motor unit by itself! Make sure to properly lubricate while performing tapping work, see paragraph 5.1 Annular cutters.

  • Page 28: Maintenance

    6. Maintenance Your EUROBOOR magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs.
  • Page 29 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.

  • Page 30: Trouble Shooting

    7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work...
  • Page 31 Frame under voltage - Damaged / defective wiring - Defective magnet - Motor seriously dirty Fuse blows when magnet switch is - Damaged or defective wiring turned on - Wrong value fuse - Defective magnet switch - Defective control unit - Defective magnet Fuse blows when motor is started - Damaged or defective wiring...

  • Page 32: Exploded Views & Spare Parts List

    8. Exploded views & spare parts list 8.1 Exploded views...
  • Page 38 8.2 Spare parts lists ECO.100S+/T 100.0571 Circlip 471 11 x 1 No. Part no. Description No. Part no. Description Motor 220V 100S.1001 100.0458 Gasket big ECO.100S+ Motor 110V 130.0065 Ring metal 100S.1001A ECO.100S+ 100S.1006 Clutch shaft 050.0106 Screw 4.8 x 45 100.0426...
  • Page 39 Slide No. Part no. Description No. Part no. Description 020.0146B Screw M6 x 35 Front panel 100S.0008X ECO.100S+/T 020.0146 Screw M6 x 25 R/L switch (push) Wool felt ring 45 x 100.0152 100S.0067 1800W 58 x 5 Motor switch 220V 100S.0066...
  • Page 40 ECO.100S+/TD No. Part no. Description No. Part no. Description 100.0458 Gasket big Motor 220V 100S.1001 ECO.100S+ 130.0065 Ring metal Motor 110V 100S.1006 Clutch shaft 100S.1001A ECO.100S+ 100.0426 Circlip 471 24 x 1.2 050.0106 Screw 4.8 x 45 080.4324 Spindle gear 38T 100.0322Z End cover 080.4411...
  • Page 41 No. Part no. Description No. Part no. Description 020.0146B Screw M6 x 35 Cable clamp 020.0146 Screw M6 x 25 020.0037 complete Wool felt ring 45 x 100S.0067 58 x 5 Front panel plate 100S.0008XD 100S.0066 Bearing NKX-45 ECO.100S+/TD 100S.0065 Bearing 35 x 42 x 8 Motor switch 220V 030E.0091/Y...
  • Page 42 No. Part no. Description No. Part no. Description 209 IMB.US4 Allen key 4.0 mm 214 DRIFT3 Drift MT3 210 IMB.US5 Allen key 5.0 mm Spindle MT3 19.05 215 100S.2002 mm Weldon (3/4") 211 IMB.US6 Allen key 6.0 mm Safety guard for 212 IMB.US8 Allen key 8.0 mm 216 SAF.MDM...

  • Page 43: Wiring Diagram

    8.3 Wiring diagram...

  • Page 44: Warranty And Service

    Service To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of EUROBOOR products in your country.
