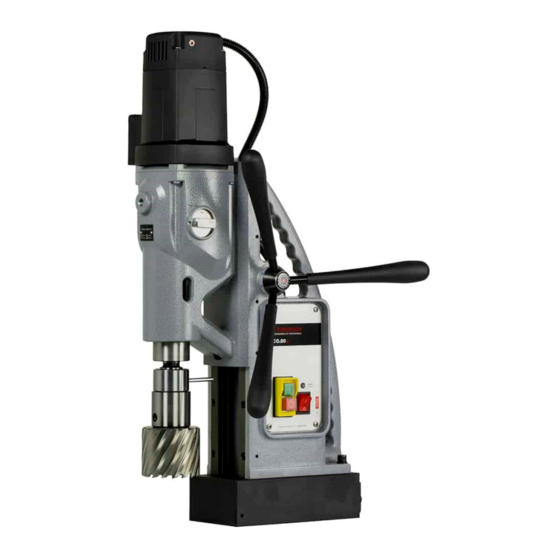

Page 1: Eco.80S
User manual V1.5 | EN | April 2021 Magnetic drilling machine ECO.80... - Page 2 Congratulations on purchasing this premium magnetic drilling machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 3: Table Of Contents
Table of contents ECO.80S+ ............................1 Table of contents ..........................3 1. Safety ............................. 4 1.1 General safety instructions ........................4 1.2 Specific safety information ........................6 2. Description ............................. 8 2.1 Intended use ............................8 2.2 Description and features ........................8 2.3 Case content ............................9 2.4 Serial number ............................9 2.5 Technical data............................ -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’ , including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury. - Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by EUROBOOR for your machine model. Accessories that are suitable for one machine may become hazardous when used on another machine.
-
Page 6: Specific Safety Information
• Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. EUROBOOR offers a wide range of well-considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: Impairment of hearing; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
This magnetic drilling machine is intended for commercial use as a drilling machine for drilling materials with a magnetisable surface using annular cutters and twist drills, and for countersinking in a weather- protected environment using the application tools and accessories recommended by EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. -
Page 9: Case Content
Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and EUROBOOR to validate and identify the machine. For example:... -
Page 10: Technical Data
2.5 Technical data Metric Imperial Ø 12 - 80 mm Ø 7/16" - 3 1/8" Annular cutting Twist drilling Ø 1 - 31.75 mm Ø 1/16" - 1 1/4" Tapping Countersinking Ø 0 - 85 mm Ø 3/8" - 3 3/8" 365 mm 14 3/8"... -
Page 11: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be sure to read the documentation in this user Read documentation manual and specifically the “General safety instructions” and ‘’Specific safety information’’ Wear ear protection Use ear protection during operation Wear eye protection Use eye protection during operation Read and apply the information in the adjacent Danger/warning/caution text! -
Page 12: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 13: Preparation & Adjustment
3.Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn machine off and disconnect from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. Fitting the feed handles 1. -
Page 14: Prior To Use
Your EUROBOOR magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. If the supply cord is damaged, it must be replaced by a specially prepared cord available at EUROBOOR or your EUROBOOR dealer. - Page 15 Extension cord If an extension cord is required, use an approved 3-core cable suitable for the power input of this machine (see technical data): The minimum conductor size is 1.5 mm² (for 220V) or 14 AWG (Amperage Wire Gauge for 110V) •...
-
Page 16: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. -
Page 17: Morse Taper Spindle
4.2 Morse taper spindle [image 4-2] [image 4-3] 1. Make sure the inside of the output shaft and the Morse taper spindle are clean and free of grease; 2. Position the lubrication ring rotation limiter behind the bridge between the output shaft and the frame;... - Page 18 [image 4-5] The electromagnet will work best on surfaces of at least 10 mm (3/8") thickness. When the electromagnet is not able to create a good enough magnetic field, this may be caused by: Surface not being flat; Workpiece is not magnetisable (e.g. aluminium); Workpiece is coated or painted;...
-
Page 19: Four-Speed Manual Gearbox
We want to point out that above mentioned precautions and indicators do not guarantee that the magnet will not release from the material. EUROBOOR accepts no liability when it comes to the magnet or indicators not functioning or functioning poorly. -
Page 20: Switching Motor On And Off
GREEN button with marking “I”. To switch the motor OFF, press the RED button with marking “O”. 4.6 GYRO-TEC safety This EUROBOOR magnetic drilling machine is equipped with GYRO-TEC safety functionality. It features a gyroscopic sensor which detects acceleration and displacement in any direction. Whenever the machine recognizes a sudden or unwanted movement the motor will be shut down automatically by the machine’s electronics. -
Page 21: Overheat Protection
*Disclaimer: Euroboor is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage spikes and/or frequency fluctuations. -
Page 22: Tool Lubrication
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use EUROBOOR cutting paste or spray. Make sure to use only suitable cutting lubricants. EUROBOOR offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and faster results, and... -
Page 23: Working With Drilling Accessories
5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. -
Page 24: Twist Drills
5.2 Twist drills Weldon shank 19.05 mm (3/4") Fit the twist drill with 19.05 mm (3/4") Weldon shank(EUROBOOR code SPI or SSPI) with adapter (code IBK.3219) into the provided MT3 to Weldon 31.75 mm (1 1/4") arbor (code 080.2009) and fasten the screws with the provided Allen key. - Page 25 1. Remove the Morse Taper 3 (MT3) arbor for Weldon shanks (see paragraph 4.2 Morse taper spindle) 2. Fit a MT3 arbor connection a. EUROBOOR code 1/2UNF-MC3 for 1/2" x 20 UNF drill chuck connections b. EUROBOOR code B16-MC3 for B16 drill chuck connections 3. Fit the appropriate twist drill chuck to the arbor 4.
-
Page 26: Countersinks
1. Remove the Morse Taper 3 (MT3) arbor for Weldon shanks (see paragraph 4.2 Morse taper spindle) 2. Fit a twist drill with a MT3 shank 3. For twist drills with a MT2 shank fit an MT3-MT2 adapter (EUROBOOR code IBK.MC3-MC2) before fitting the drill (see below) [image 5.3 | Fitting drill with MT3 shank] [image 5.4 | Fitting drill with MT3-MT2 adapter]... -
Page 27: Maintenance
6. Maintenance Your EUROBOOR magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. - Page 28 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
-
Page 29: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 30 Frame under voltage - Damaged / defective wiring - Defective magnet - Motor seriously dirty Fuse blows when magnet switch is - Damaged or defective wiring turned on - Wrong value fuse - Defective magnet switch - Defective control unit - Defective magnet Fuse blows when motor is started - Damaged or defective wiring...
-
Page 31: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views... -
Page 34: Spare Parts List
8.2 Spare parts list No. Part no. Description No. Part no. Description 080S.1001 Motor 220V ECO.80S+ Axle 1 (ECO.80 -> 38A 080.4321 1412) 080S.1001A Motor 110V ECO.80S+ 050.0106 Screw 4.8 x 45 38B 100.4350 Nut M10 100.0322Z End cover 38C 100.4351 Washer 12 x 18 x 1 LED indicator red 38D 100.4338... - Page 35 020.0081 201 100S.2019 Coolant tank 020.0077H End plate black 202 IBO.0.2L Bottle 0.2LTR 100S.1002 Frame PRM.61 EUROBOOR gloves M PRM.62 EUROBOOR gloves L 020.0516 Screw M5 x 10 PRM.63 EUROBOOR gloves XL 080.1010A Motor cable Safety chain (1 mtr) 88B CS100.0341/2 Cable set 1608 ->...
-
Page 36: Wiring Diagram
8.3 Wiring diagram... -
Page 37: Warranty And Service
[ only when registered you benefit from extended warranty ] Service To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or,...
