Summary of Contents for Euroboor ECO.55S/TA

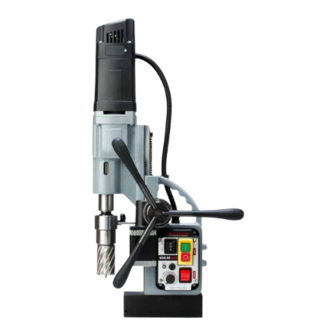

- Page 1 Operators manual V 1.5 EN Magnetic drilling machine ECO.55S/TA Serial number: Date of purchase: Don’t forget to register your machine at: www.euroboor.com/register [ only when registered you benefit from extended warranty ]...
- Page 2 Congratulations on your purchase of the Euroboor ECO.55S/TA portable magnetic drilling machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Euroboor is committed to provide you with metal cutting tools and products to help you be more productive.
-
Page 3: Table Of Contents
Table of contents 1. Safety 1.1 General safety instructions 1.2 Specific safety information 2. Description 2.1 Intended use 2.2 Description and features 2.3 Box contents 2.4 Serial number 2.5 Technical data 2.6 Symbols 2.7 Environmental 3. Preparation & adjustment 3.1 Assembly 3.2 Prior to use 4. -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following. - Page 5 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Euroboor for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
-
Page 6: Specific Safety Information
1.2 Specific safety information • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries;... -
Page 7: Description
EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. -
Page 8: Box Contents
2.3 Box contents 1 Carrying case 1 Magnetic drilling machine 1 Instruction manual 3 Handles 1 Drill guard + 2 bolts 1 Oil tank + attachment pin 1 Bottle cutting oil 3 Allen keys (2.5, 4, 5) 1 Safety chain 1 Morse Taper 3 spindle 1 Spindle drift 4 Tap collets (DIN 376 M10/M12/M14/M16) -
Page 9: Technical Data
2.5 Technical data ANNULAR CUTTERS Ø 12 – 55 mm Ø 1/2" – 2 3/16” TWIST DRILLS Ø 1 – 23 Ø 1/16” – 15/16” THREADING M3 – M20 M3 – M20 COUNTERSINKING Ø 10 – 60 mm Ø 3/8” – 2 3/8” LENGTH 345 mm 13 9/16”... -
Page 10: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be absolutely sure to read the enclosed Read documentation documentation such as the Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection during operation. Danger/warning/caution Observe the information in the adjacent text! European conformity symbol... -
Page 11: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 12: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 13: Prior To Use
Please make sure that the contacting surface for the magnet is level, clean and rust-free. Remove any varnish or primer. When working on materials that are not magnetizable, suitable fixation devices, obtainable as accessories from EUROBOOR, e. g. suction plate, vacuum plate or pipe-drilling device must be used. -
Page 14: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum operating facility and safety. -
Page 15: Morse Taper Spindle
4.2 Morse Taper spindle [image 2-3] [image 2-4] 1. Make sure the inside of the output shaft and the Morse Taper spindle are clean and free of grease 2. Align the coolant ring rotation limiter with the recess in the gearbox (A) 3. -
Page 16: Gearbox
4.3 Gearbox 1. To select the correct gear from neutral (horizontal) position: a. Rotate the switch counterclockwise to position o, this is gear 1 b. Rotate the switch clockwise to position oo, this is gear 2 2. A gear is only correctly selected when the gearbox switch is aligned with the indicators on the gearbox. -
Page 17: Electromagnet
We need to point out that this is only an indication and not a certainly that the magnet will not release from the material. Euroboor accepts no liability ensuring from the magnet indicator not functioning or functioning poorly. -
Page 18: Switching Motor On And Off
Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. Euroboor magnets have 2 coils; make sure that both coils are in contact with the material. Do not connect any other machines to the electrical outlet the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force. -
Page 19: Automatic Functionality
4.8 Automatic functionality 1. Feed handle positioning a. When the feed handles are folded flat against the machine (in a 90 degree angle to the workpiece), the machine is in manual standby position. In manual standby position it is possible to operate the machine for all suitable tasks (drilling with annular cutters &... -
Page 20: Led Display & Torque Control
WARNING: Always check if the situation before drilling in automatic mode is safe. Stay close by to the machine and keep a close eye to the automatic drilling process to be ready to switch of the machine whenever there is need to. 4.9 LED display &... -
Page 21: Temperature Control
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste Make sure to use only suitable cutting oil or fluid. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper cooling will help you create better and faster results,... -
Page 22: Working With Operating Tools
5 Working with operating tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. - Page 23 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece. 5. If your machine is equipped with a auto coolant system, put open the valve to release the oil. If your machine does not have an auto coolant system, fill the holes of the spindle with oil.
-
Page 24: Twist Drills
5.2 Twist drills 1. Remove the Morse Taper arbor (see chapter Gearbox) 2. Fit the twist drill a. Straight shank twist drills [image 3-2] b. Morse Taper shank twist drills [image 3-3] Morse Taper 2 [image 3-4] Morse Taper 3 3. -
Page 25: Machine Taps
WARNING: Do not use the automatic feed mode when drilling with twist drills. Manual feed only! 5.3 Machine taps The ECO.55S/TA model is equipped with a reversible direction of rotation and can also be used for cutting threads. Proceed as follows for cutting threads: 1. Install the tap [image 3-5] 2. -
Page 26: Countersinks
Switch on the machine again and allow the machine tap to come completely out of the work piece. Then guide the motor unit slide upwards at handles to avoid damaging the start of the thread. DO NOT LET YOUR TAP PUSH UP THE MOTOR UNIT BY ITSELF!! Make sure the properly lubricate while performing tapping work, see chapter Annular cutters WARNING: Do not use the automatic feed mode when using machine taps. -
Page 27: Maintenance
6. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 28 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorized dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 29: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 30 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Work piece is not bare metal - Work piece is not clean or flat - Work piece is less than 10 mm (too thin) - Defective Control Unit - Defective magnet Frame under voltage...
-
Page 31: Exploded View & Spare Part List
8. Exploded view & spare part list 8.1 Exploded views... -
Page 34: Spare Part Lists
Key 6 x 6 x 12 050T.0332 Screw for speed control unit 050.0461 Spindle drive shaft 34x146 055T.0011 ECO.55S/TA Control unit 2 - 230V 020.0086/Z Rail set Aluminium (L + R) Z-profile 64-65 055T.0011A ECO.55S/TA Control unit 2 - 110V 020.0063... - Page 35 055T.0049 Front panel plate CAS.55A Case 55 auto 055.0022 Screw M4x12 KSP.Q2 Coolant System Quick Connect 100.0152 R/L Switch (push) 1800 W IBO.10.200 Cutting Oil 200ml 030E.0091/Y Motor switch (5-pin) 220-240V SAF.300 Protective gloves 030E.0092/Y Motor switch (5-pin) 110-120V SAF.400 Safety chain (1 mtr) with lock 020.0017 Fuse 5x20 F2A...
-
Page 36: Wiring Diagrams
8.3 Wiring diagrams...
