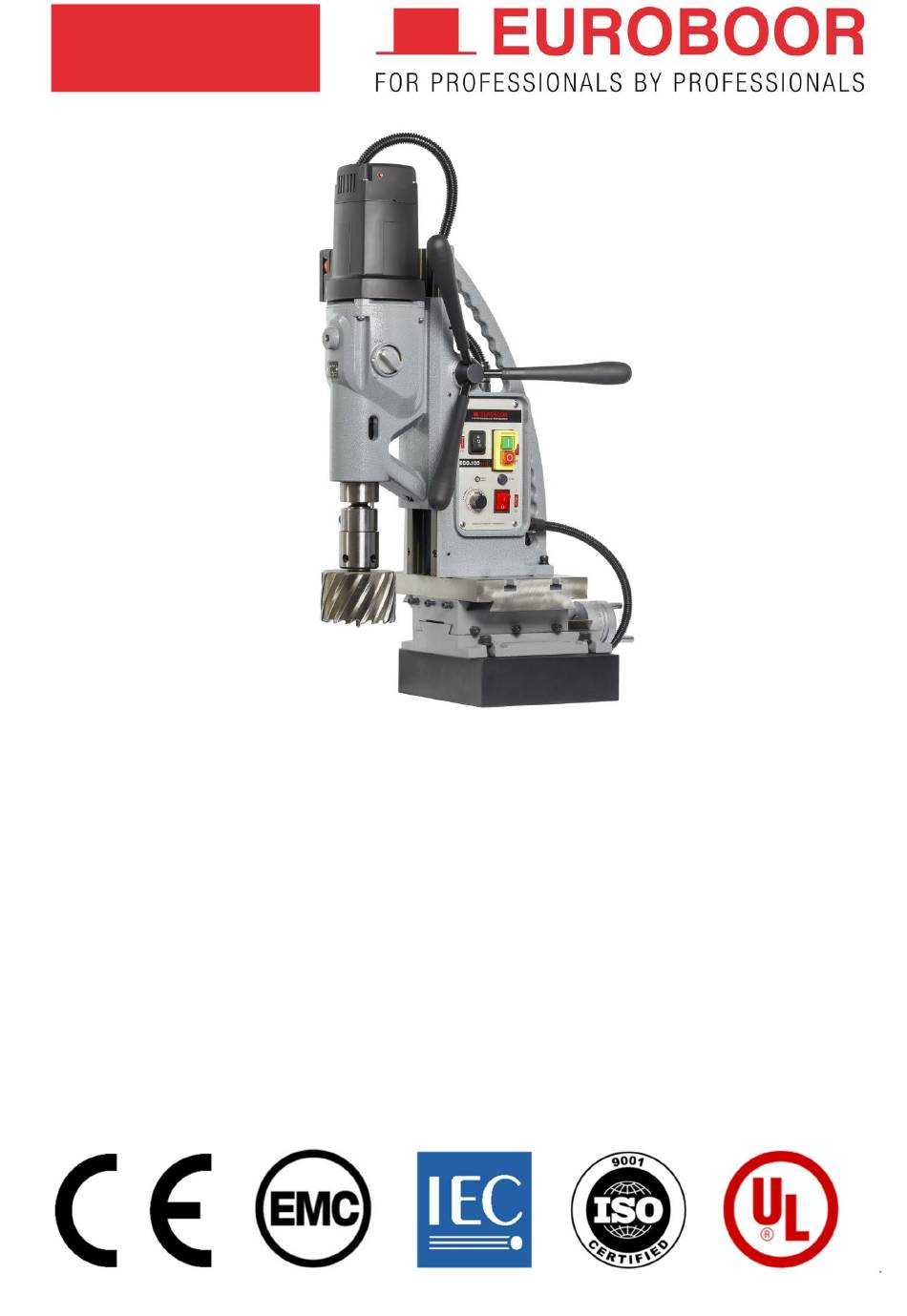

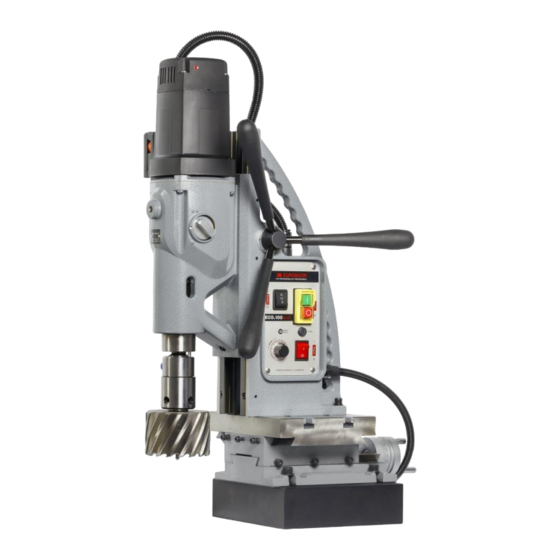

- Page 1 User manual V 1.0EN | Sept 2022 Magnetic drilling machine ECO.100 S+/CT with cross slide table...
- Page 2 Congratulations on purchasing this premium magnetic drilling machine. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 3: Table Of Contents
Table of contents ECO.100S+/CT ..........................1 with cross slide table ........................1 Table of contents ......................... 3 1. Safety ............................4 1.1 General safety instructions ......................4 1.2 Specific safety information ......................6 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Description and features ....................... -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. - Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 9. Only use accessories that are recommended by EUROBOOR for your machine model. Accessories that are suitable for one machine may become hazardous when used on another...
-
Page 6: Specific Safety Information
• Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. EUROBOOR offers a wide range of well-considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided. These are: • Impairment of hearing; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
EUROBOOR. The magnetic drilling machine can only be used horizontally or vertically. 2.2 Description and features [image 2-1] 1. -
Page 9: Case Content
Additional serial no. stickers are provided with the machine for your administration. The serial number will help you, your dealer and EUROBOOR to validate and identify the machine. For example:... -
Page 10: Technical Data
2.5 Technical data Metric Imperial Annular cutting Ø 12 - 100 mm Ø 7/16" - 4" Twist drilling Ø 1 - 31.75 mm Ø 1/16" - 1 1/4" Tapping M3 - M30 1/8" – 1 3/16" Countersinking Ø 10 - 105 mm Ø... -
Page 11: Symbols
Dimensions(inches) 2.6 Symbols Symbol Term, meaning Explanation Be sure to read the documentation in this user Read documentation manual and specifically the “General safety instructions” and ‘’Specific safety information’’ Wear ear protection Use ear protection during operation Wear eye protection Use eye protection during operation Danger/warning/caution Read and apply the information in the adjacent... -
Page 12: Environmental
Symbol Term, meaning Explanation International Electrotechnical Conformity with international electrotechnical Commission safety standards Certified in accordance with ISO9001:2015 quality ISO9001 management system Certified by Underwriters Laboratories (UL), a recognized laboratory for safety testing approved by US federal agency OSHA Millimeter Unit of measure for the dimensions "... -
Page 13: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn machine off and disconnect from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 14: Prior To Use
The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate. Your EUROBOOR magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. - Page 15 Extension cord If an extension cord is required, use an approved 3-core cable suitable for the power input of this machine (see technical data): • The minimum conductor size is 1.5 mm² (for 220V) or 14 AWG (Amperage Wire Gauge for 110V) for 7.5 m (±...
-
Page 16: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn the machine off and disconnect the machine from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum ease of use and safety. -
Page 17: Electromagnet
[image 4-3] [image 4-4] 4. To remove the Morse taper spindle: Switch off the motor; Rotate the mechanical gear switch to neutral (see paragraph 4.3 Gearbox); Rotate the output shaft until the slots on the shaft align with the slots on the gearbox; Gently tap the supplied drift into the slots to push the Morse taper arbor out. - Page 18 We want to point out that above mentioned precautions and indicators do not guarantee that the magnet will not release from the material. EUROBOOR accepts no liability when it comes to the magnet indicator not functioning or functioning poorly.
-
Page 19: Cross Slide Table
Always use the safety chain included. Drilling above your head is extremely dangerous and is not recommended. For the use of magnetic drilling machines on pipes, not-flat or non-magnetic materials, we refer to our catalogue or our website www.euroboor.com where several vacuum tightening systems, pipe clamping systems and Tube machines can be found. -
Page 20: Four-Speed Manual Gearbox
4.5 Four-speed manual gearbox This machine is equipped with a 4-speed gearbox. Gear switches on both sides make it possible to select 4 different speeds manually. Select the closest gear and speed for the intended operation. 1. To select the correct gear from neutral (horizontal) position: a. -
Page 21: Motor Speed Control
4.8 Motor speed control The speed control knob (potentiometer) allows you to electronically control the speed of the motor (in both clockwise and counter clockwise direction): The indicator of the potentiometer in bottom left corner is minimum speed; The indicator of the potentiometer in bottom right corner is maximum speed; The electronic motor speed control works for both mechanical gears. -
Page 22: Overheat Protection
*Disclaimer: Euroboor is not liable for any damage caused to the machine due to electrical problems in the workplace. Above mentioned protection is not guaranteed in all cases of voltage spikes and/or frequency fluctuations. Euroboor accepts no liability when it comes to the power protection not functioning or functioning poorly. -
Page 23: Tool Lubrication
WARNING: Do not use the lubrication system in vertical drilling applications. Instead use EUROBOOR cutting paste or spray. Make sure to use only suitable cutting lubricants. EUROBOOR offers a wide range of cutting lubricants for all tool and material combinations. Proper lubrication will help you create better and... -
Page 24: Working With Drilling Accessories
5. Working with drilling accessories 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. -
Page 25: Twist Drills
5.2 Twist drills Weldon shank 19.05 mm (3/4") Fit the twist drill with 19.05 mm (3/4") Weldon shank (EUROBOOR code SPI or SSPI) with adapter (code IBK.3219) into the provided MT3 to Weldon 31.75 mm (1 1/4") arbor (code 080.2009) and fasten the screws with the provided Allen key. - Page 26 1. Remove the Morse Taper 3 (MT3) arbor for Weldon shanks (see paragraph 4.2 Morse taper spindle) 2. Fit a twist drill with a MT3 shank 3. For twist drills with a MT2 shank fit an MT3-MT2 adapter (EUROBOOR code IBK.MC3-MC2) before fitting the drill (see below)
-
Page 27: Machine Taps
The machine is equipped with counter clockwise rotation and can therefore also be used for tapping. Drill tap combination with Weldon 19.05 mm (3/4") shank 1. Fit the drill tap (EUROBOOR code EDT) into a spindle with 19.05 mm (3/4") connection and fasten by tightening the screws with the provided Allen key;... -
Page 28: Countersinks
4. Fit the tap holder into a spindle with 19.05 mm (3/4") or 31.75 mm (1 1/4") Weldon connection (depending on tap size); [image 5-5] 5. Select the lowest gear and speed and set the direction of rotation to clockwise (right = R); 6. - Page 29 Using the feed handle to make the cutter at the correct height,then lock the sliding rail with the stop screws. Switch the motor on and allow it to run at the required speed. Guide the cutter by rotating the X- or Y-axis handwheel,to perform milling operation on the workpiece.
-
Page 30: Maintenance
6. Maintenance Your EUROBOOR magnetic drilling machine has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn the machine off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 31 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
-
Page 32: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 33 Frame under voltage - Damaged / defective wiring - Defective magnet - Motor seriously dirty Fuse blows when magnet switch is - Damaged or defective wiring turned on - Wrong value fuse - Defective magnet switch - Defective control unit - Defective magnet Fuse blows when motor is started - Damaged or defective wiring...
-
Page 34: Exploded Views & Spare Parts List
8. Exploded views & spare parts list 8.1 Exploded views... - Page 37 8.2 Sparepart lists ECO.100S+/T Part no. Description Part no. Description Friction clutch complete 100S.1001 Motor 220V ECO.100S+ 100.4312 assembly(7T) 100S.1001A Motor 110V ECO.100S+ 080.4321 Axle 1 (ECO.80 -> 1412) 050.0106 Screw 4.8 x 45 100.4350 Nut M10 100.0322Z End cover 100.4351 Washer 12 x 18 x 1 P020.0278...
- Page 38 100S.2019 Coolant tank 020.0036/AU Main cable 220V AU IBO.0.2L Bottle 0.2LTR 020.0036/UK Main cable 220V UK PRM.61 EUROBOOR gloves M 020.0036/UK Main cable 110V UK 32A PRM.62 EUROBOOR gloves L 110-32A 100.1016A Main cable 110V USA PRM.63 EUROBOOR gloves XL...
-
Page 39: Wiring Diagram
8.3 Wiring diagram... -
Page 40: Warranty And Service
[ only when registered you benefit from extended warranty ] Service To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or,...
