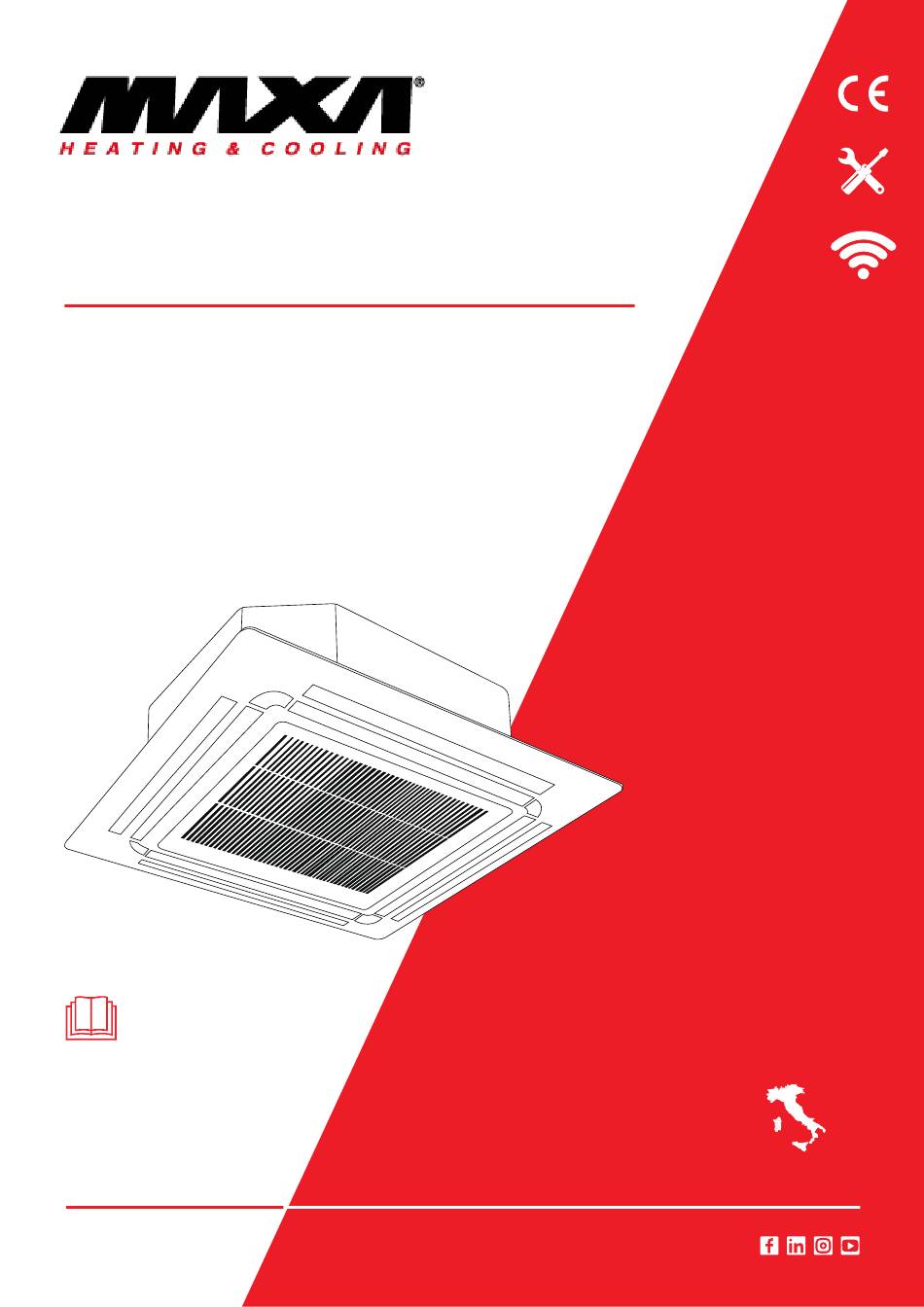

FOUR-WAY CASSETTE TYPE AIR CONDITIONER
Technical Manual
CCST26R1, CCST35R1, CCST53R1
Note
Read this manual and SAFETY MANUAL(if any)
carefully before installing or operating your new air
conditioning unit. Make sure to save this manual
for future reference.
Please check the applicable models, technical
data, F-GAS(if any) and manufacturer
information from the "Owner's Manual -
Product Fiche"
in the packaging of the outdoor unit.
(European Union products only)
www.maxa.it
Made in Italy
Advertisement
Table of Contents
Related Manuals for MAXA CCST26R1
Summary of Contents for MAXA CCST26R1
- Page 1 FOUR-WAY CASSETTE TYPE AIR CONDITIONER Technical Manual CCST26R1, CCST35R1, CCST53R1 Note Read this manual and SAFETY MANUAL(if any) carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Please check the applicable models, technical data, F-GAS(if any) and manufacturer information from the "Owner's Manual -...
- Page 2 2. Functions Functions CCSTR1 Model • Standard filter Flange Healthy filter • Drainage pump IDU auxiliary electric heater Infrared wired controller (KJR-12B, KJR-90A) Infrared wired controller (120L) 120M/120N(4-core/4-core+wifi) 120M/120N(2-core/2-core+wifi) 120M/120N(2+4-core+wifi) 485 wired controller (KJR-120C, KJR-120G2) 2 cores non-polarity wired controller (KJR-120G,KJR-120X) Wifi...
- Page 3 CCST26R1 CCST35R1 CCST53R1 Indoor model Power supply (Indoor ) V- Ph-Hz 220~240-1-50 220~240-1-50 220~240-1-50 Capacity Btu/h 9000 12000 18000 Cooling Input Current 0.75 Capacity Btu/h 10000 13000 19000 Heating Input current 0.75 Model ZKFN-45-8-2 ZKFN-45-8-2 ZKFN-45-8-2 Indoor fan motor Input...
-
Page 4: Dimensional Drawings
Dimensional Drawings CCSTR1... -
Page 5: Air Velocity And Temperature Distributions
Air Velocity and Temperature Distributions CCST26R1, CCST35R1 Discharge Angle 30° Cooling airflow velocity distributions Cooling temperature distributions... - Page 6 CCST26R1, CCST35R1 Heating airflow velocity distributions Heating temperature distributions...
- Page 7 CCST26R1, CCST35R1 Discharge Angle 60° Cooling airflow velocity distributions Cooling temperature distributions...
- Page 8 CCST26R1, CCST35R1 Heating airflow velocity distributions Heating temperature distributions...
- Page 9 CCST53R1 Discharge Angle 30° Cooling airflow velocity distributions Cooling temperature distributions...
- Page 10 CCST53R1 Heating airflow velocity distributions Heating temperature distributions...
- Page 11 CCST53R1 Discharge Angle 60° Cooling airflow velocity distributions Cooling temperature distributions...
- Page 12 CCST53R1 Heating airflow velocity distributions Heating temperature distributions...
- Page 13 Electrical Wiring Diagrams Indoor unit CCST26R1, CCST35R1, CCST53R1...
- Page 14 Noise Criterion Curves Indoor Unit CCST26R1 CCST35R1 CCST53R1...
-
Page 15: Electrical Characteristics
10. Electrical Characteristics Indoor Unit Power Supply Model Phase Voltage 0.045 0.327 CCST26R1 220-240 0.045 0.327 CCST35R1 0.045 0.327 CCST53R1... -
Page 16: Safety Features
Operation Modes and Functions • When the unit starts, the louver is automatically activated and the indoor fan will operate after a period of 7 seconds. Abbreviation • If the unit is in heating mode, the indoor fan is regulated by the anti-cold wind function. Unit element abbreviations Zero crossing detection error protection(For Forest Abbreviation... -
Page 17: Fan Mode
Fan Mode • When the compressor is on, the fan speed can be set to high, medium, low, or auto. And the anti-cold wind When fan mode is activated: function has the priority. • The auto fan acts according to the value of T1-Ts. •... - Page 18 Auto Mode • This mode can be selected with the remote controller and the temperature setting can be adjusted between 16°C~30°C • In auto mode, the machine selects cooling, heating or fan-only mode on the basis of T1,Ts and T4. ∆T Running mode ∆T>2°C...
-
Page 19: Forced Operation Function
• Timer On/Off. The machine turns on automatically at • When any one of indoor units runs in forced the preset On Time, and then turns off automatically defrosting mode, the indoor fan is off and at the preset Off Time. other indoor fans are off. - Page 20 • Heating mode has a priority. (1) Definition Cooling Heating mode Mode Cooling mode Heating Mode No: No mode conflict; Yes: Mode conflict Unit action • In case of one Indoor unit working in cooling mode or fan mode, and another indoor unit is set to heat- ing mode, the indoor unit working in cooling mode or fan mode will change to off.
- Page 21 Remote Controller Functions Model RG10A(B2S)/BGEF 3.0V (Dry batteries R03/ Rated Voltage LR03×2) Reaching Distance Environment Temperature -5℃~60℃(23℉~140℉) Range Buttons and Functions MODE ON/OFF Turns the unit on or o ff. Scrolls th rough operation modes as follows: AUTO COOL TEMP DRY ...
- Page 22 Accessories-Compact cassette Type: Name Shape Quantity Installation paper template Indoor unit installation (some models) Soundproof/insulation sheath Refrigeration Fittings (some models) Outlet pipe sheath(some models) Outlet pipe clasp(some models) Drainpipe Fittings Drain joint (some models) Seal ring (some models) Ceiling hook Copper nut(some units) Used to make the connective pipes Installation Accessory...
- Page 23 Installation Install the indoor unit Install the outdoor unit Install the drainpipe Evacuate the refrigeration system Connect the wires Connect the refrigerant pipes Install the front panel Perform a test run...
-
Page 24: Location Selection
Location selection Unit location selection can refer to installation manual. DO NOT install the unit in the following locations: • Where oil drilling or fracking is taking place. • Coastal areas with high salt content in the air. • Areas with caustic gases in the air, such as near hot springs. -
Page 25: Indoor Unit Installation
Indoor Unit Installation Length of A Length of H Length of B Service space for indoor unit (mm/inch) (mm/inch) (mm/inch) 245/9.6 >290/11.4 600/23.6 2. Drill 4 holes 5cm (2”) deep at the ceiling hook positions in the internal ceiling. Be sure to hold the drill at a 90° angle to the ceiling. - Page 26 Wall Compact Cassette Panel Installation Remove the front grille Main body 1.Push one side of the grille screw cover then remove the grid screw. 2. Push both of the tabs towards the middle simultaneously to unlock the hook on the grille. 24mm (0.9”) 3.
- Page 27 completely covered. Loosen upper nut Gap not allowed 2 Adjust lower nut If the unit is not hung correctly and a gap exists, the unit’s height must be adjusted to ensure proper function. The unit’s height can be adjusted by loosening the upper nut, and adjusting the lower nut.
- Page 28 For panels with vane control module, the display board CN1 is connected to the main control board CN10, the vane control motor cable is connected to the main control board CN66. The display board CN2 is connected to a connecting cable. Then connect the other side of the connecting cable to the optional wired controller.
- Page 29 Via San Giuseppe Lavoratore, 24 37040 Arcole, Verona +39 045 7636585 info@advantixspa.it www.maxa.it...
