and the ambient temperature. For optimum per‐
formance, note the recommended temperature
ranges, 19.7. The actual charging time may
differ from the specified charging time. Please
refer to www.stihl.com/charging-times for charg‐
ing times.
► Charge the battery as described in the instruc‐
tion manual for the STIHL AL 101, 301, 500,
501 charger.
6.3 Displaying the state of charge
1
► Depress the pushbutton (1).
The LEDs light up green for about 5 seconds
and indicate the state of charge.
► If the LED on the right flashes green: Charge
the battery.
6.4 LEDs on Battery
The LEDs can show the state of charge or mal‐
functions. The LEDs can glow or flash green or
red.
The state of charge is indicated when the LEDs
glow or flash green.
► If the LEDs glow or flash red: Troubleshooting,
18.
There is a malfunction in hedge trimmer or
battery.
6.5 LED on Charger
The LED indicates the operating status of the
charger.
If the LED glows green, the battery is being
charged.
► If the LED flashes red: Rectify the malfunction.
Malfunction in charger.

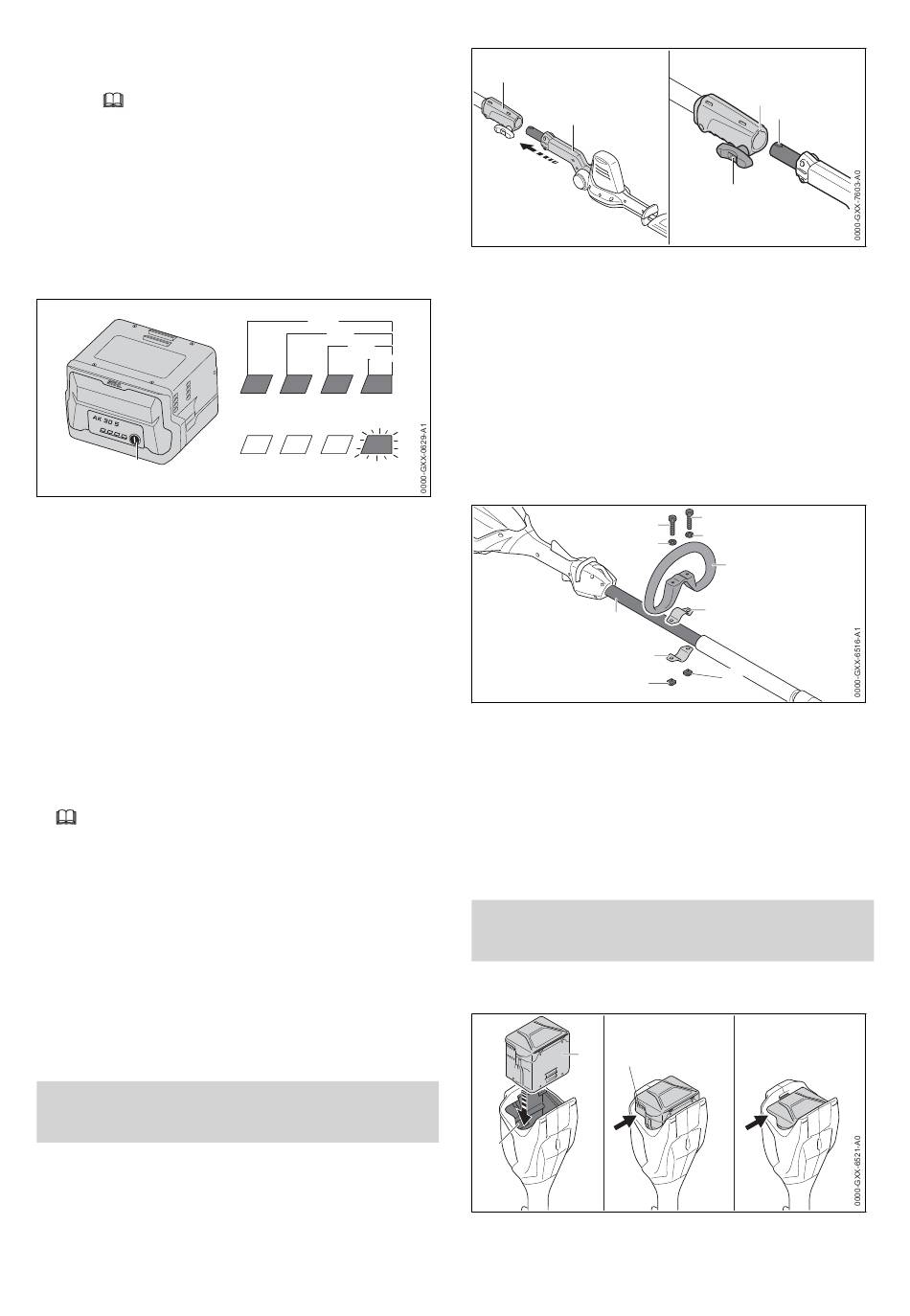

7 Assembling the Hedge
Trimmer
7.1 Mount the Cutter Bar
► Switch off the long-reach hedge trimmer and
remove the battery.
► Fit the blade scabbard so that it completely
covers the cutting blades.
34
► Line up the coupling sleeve (1) and cutter bar
► Push the cutter bar (2) into the coupling sleeve
80-100%
60-80%
40-60%
20-40%
► Turn the wing screw (5) clockwise and tighten
0-20%
7.2
► Switch off the long-reach hedge trimmer and
► Fit the clamp (4) in the loop handle (3).
► Place the loop handle (3) with clamp (4) on the
► Fit the washers (2) on the screws (1).
► Press the clamp (6) against the shaft (5).
► Insert the screws (1) through holes in the loop
► Screw on and firmly tighten the nuts (7).
8
8.1

7 Assembling the Hedge Trimmer

1
2
(2) so that the groove (3) and lug (4) face
upwards.
(1).
it until firm.
Mounting the Loop Handle
remove the battery.
1
2
5
6
7
shaft (5).
handle (3) and clamps (4 and 6).
Removing and Fitting the
Battery
Fitting the Battery
1
3
2
3
4
5
1
2
3
4
7
