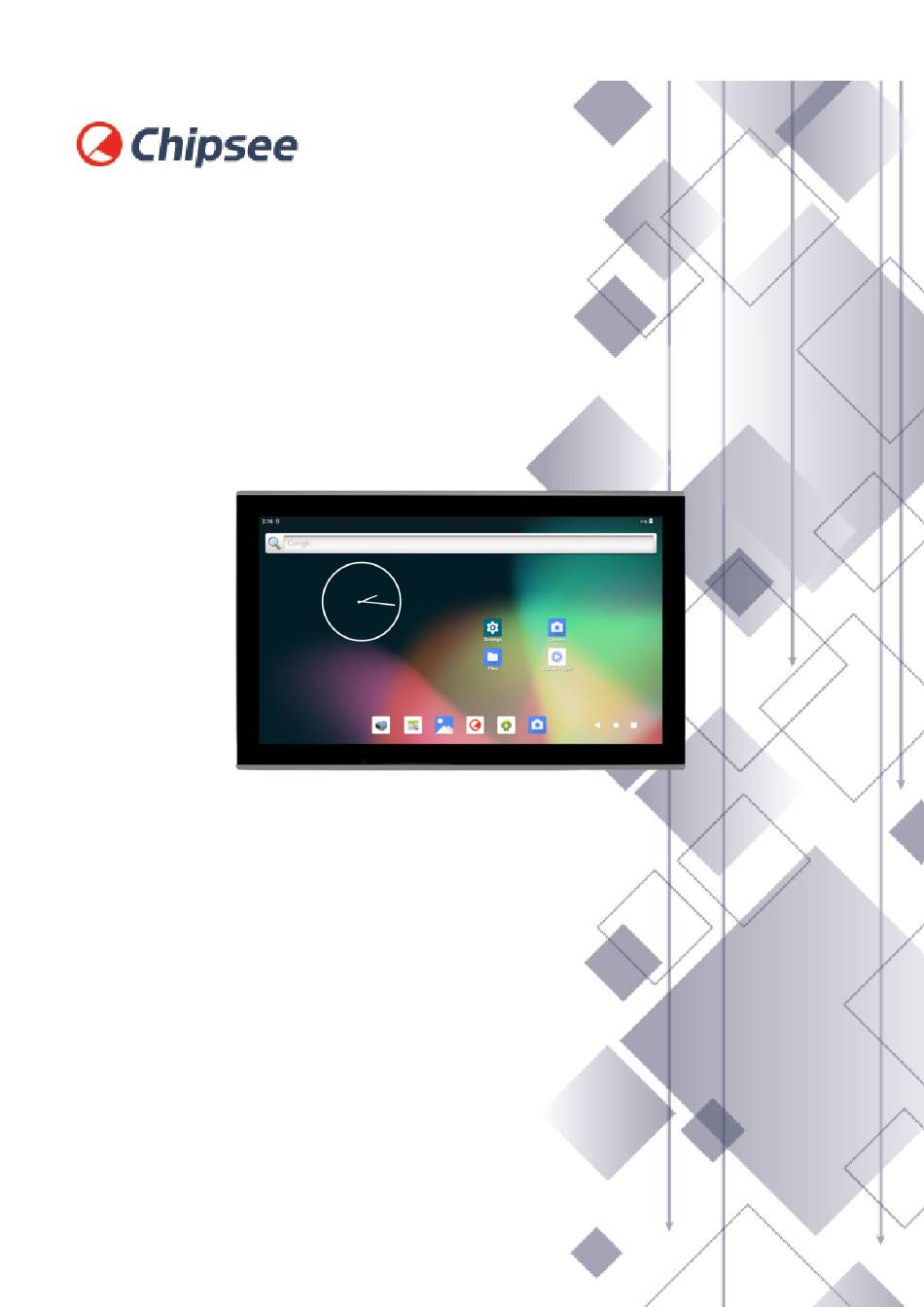

  • Page 1 Industrial PC PPC-A53-236 PN: CS19108-IMX8MP-236P Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
  • Page 2: Table Of Contents

    Contents PPC-A53-236 1. Product Overview 2. Ordering Options 2.1. Operating System 2.2. Optional Features 3. Hardware Features 4. Power Input 5. Touch Screen 6. Connectivity 6.1. RS232/RS485/CAN 6.2. USB Connectors 6.3. LAN Connectors 6.4. WiFi & BT Module 6.5. 4G/LTE Module 7.
  • Page 3: Ppc-A53-236

    PPC-A53-236 PPC-A53-236 Front View Chipsee Page 3 of 28...
  • Page 4 PPC-A53-236 Rear View Chipsee Page 4 of 28...
  • Page 5 PPC-A53-236 Side View 1 Chipsee Page 5 of 28...
  • Page 6 PPC-A53-236 Side View 2 Chipsee Page 6 of 28...
  • Page 7: Product Overview

    ATM… It is available as a device hosed in an aluminum casing with bezels. The PPC-A53-236 Industrial Panel PC is based around the powerful i.MX8MP System on Chip (SoC), powered by the NXP i.MX8MP low-power processor which integrates a quad-core ®...
  • Page 8: Ordering Options

    Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com...
  • Page 9: Optional Features

    Chipsee store during the ordering process.  Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Chipsee Page 9 of 28...
  • Page 10: Hardware Features

    PPC-A53-236 Hardware Features Hardware Features The PPC-A53-236 Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-A53-236 NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz)
  • Page 11 2 x RS232 and 2 x RS485, including 1 RS232 debug port. This product has 2 x CAN by default, all of them can be configured to RS232 (USB UART). UART can be swapped between RS232 and RS485 modes easily, if you need a different RS232/RS485/CAN configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com...
  • Page 12: Power Input

    Power Input Power Input The PPC-A53-236 Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is shown in the figure below.
  • Page 13: Touch Screen

    Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A53-236 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.
  • Page 14: Connectivity

    Connectivity Connectivity There are many connectivity options available on the PPC-A53-236 industrial PC. It has 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C (USB3.0 and USB-C share one node); 1 x RJ45, GbE (default), Power over Ethernet(PoE) (optional); up to 6 x UART terminals (RS232/ RS485), up to 2 x CAN.
  • Page 15 PPC-A53-236 RS232/RS485/CAN RS232 / RS485 / CAN / GPIO Pin Definition: Pin 6 Isolated Input 4 Pin 7 RS485_4+ USB UART1, RS485 +(A) signal Pin 8 Isolated Input 3 Pin 9 RS485_3- CPU UART3, RS485 -(B) signal Pin 10 Isolated Input 2...
  • Page 16: Usb Connectors

    PPC-A53-236 USB Connectors USB Connectors There are 2 x USB HOST and 1 x USB DEVICE (for flashing OS) ports onboard: 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C, as shown in the figures below.
  • Page 17 PPC-A53-236 USB Connectors USB 3.0 HOST Port USB Type-C Port  Warning Be careful not to touch surrounding electronic components accidentally while plugging USB devices into the embedded IPC version. Chipsee Page 17 of 28...
  • Page 18: Lan Connectors

    PPC-A53-236 LAN Connectors LAN Connectors LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated 1 x RJ45, GbE (default), Power over Ethernet(PoE) (optional) interface supports up to 1 Gbps data throughput.
  • Page 19: Wifi & Bt Module

    WiFi/BT module which supports BT/BLE 2.1/3.0/4.2, as well as 802.11ac/abgn 433Mbps 2.4/5.8 GHz Wireless LAN (WLAN). Figure 399: RTL8821CS WiFi/BT Module The PPC-A53-236 includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below. WiFi+BT Antenna SMA...
  • Page 20: 4G/Lte Module

    4G/LTE Module 4G/LTE Module The PPC-A53-236 Industrial Panel PC is equipped with a mini-PCIe connector that can connect a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A53-236. SIM card does NOT support hot plug.
  • Page 21 PPC-A53-236 4G/LTE Module SIM Card Direction (Micro SIM Card)  Attention The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module option when placing an order, we will install all the necessary components.
  • Page 22: Tf Card Slot

    PPC-A53-236 TF Card Slot TF Card Slot The PPC-A53-236 Industrial Panel PC features 1 x TF Card (micro SD) slot. TF Card can address up to 128GB of storage. TF (micro SD) Card Slot  Note The product does not come shipped with the TF Card by default.
  • Page 23: Audio Connectors

    PPC-A53-236 Audio Connectors Audio Connectors The PPC-A53-236 Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer. Audio Connector The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds.
  • Page 24: Hdmi Connector

    PPC-A53-236 HDMI Connector HDMI Connector The PPC-A53-236 Industrial Panel PC is equipped with 1 x HDMI OUT connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. HDMI Connector Chipsee Page 24 of 28...
  • Page 25: Prog Button

    PROG Button PROG Button The PPC-A53-236 Industrial Panel PC has one button on the board marked as PROG, as shown in the figure below. It controls how the device will be booted. To boot from SD card, press and hold the PROG button, then connect the power supply, after a few seconds, you can see the system boot from SD card, then you may release the button.
  • Page 26: Mounting Procedure

    PPC-A53-236 Mounting Procedure Mounting Procedure You can mount PPC-A53-236 with VESA mounting (guide): 100 x 100 mm, 4 x M4 (6mm) screws, enabling simplified installation onto any standard mounting fixture. You can also mount PPC-A53-236 with panel mounting method (guide).
  • Page 27: Mechanical Specifications

    PPC-A53-236 Mechanical Specifications Mechanical Specifications For PPC-A53-236, the outer mechanical dimensions are 595 x 374 x 57.25mm (W x L x H). Chipsee Page 27 of 28...
  • Page 28: Disclaimer

    If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
