Industrial PC
PPC-A72-150-C
PN: CS10768R150
Content can change at anytime, check
documentation website
for latest information.
www.chipsee.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-A72-150-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chipsee PPC-A72-150-C

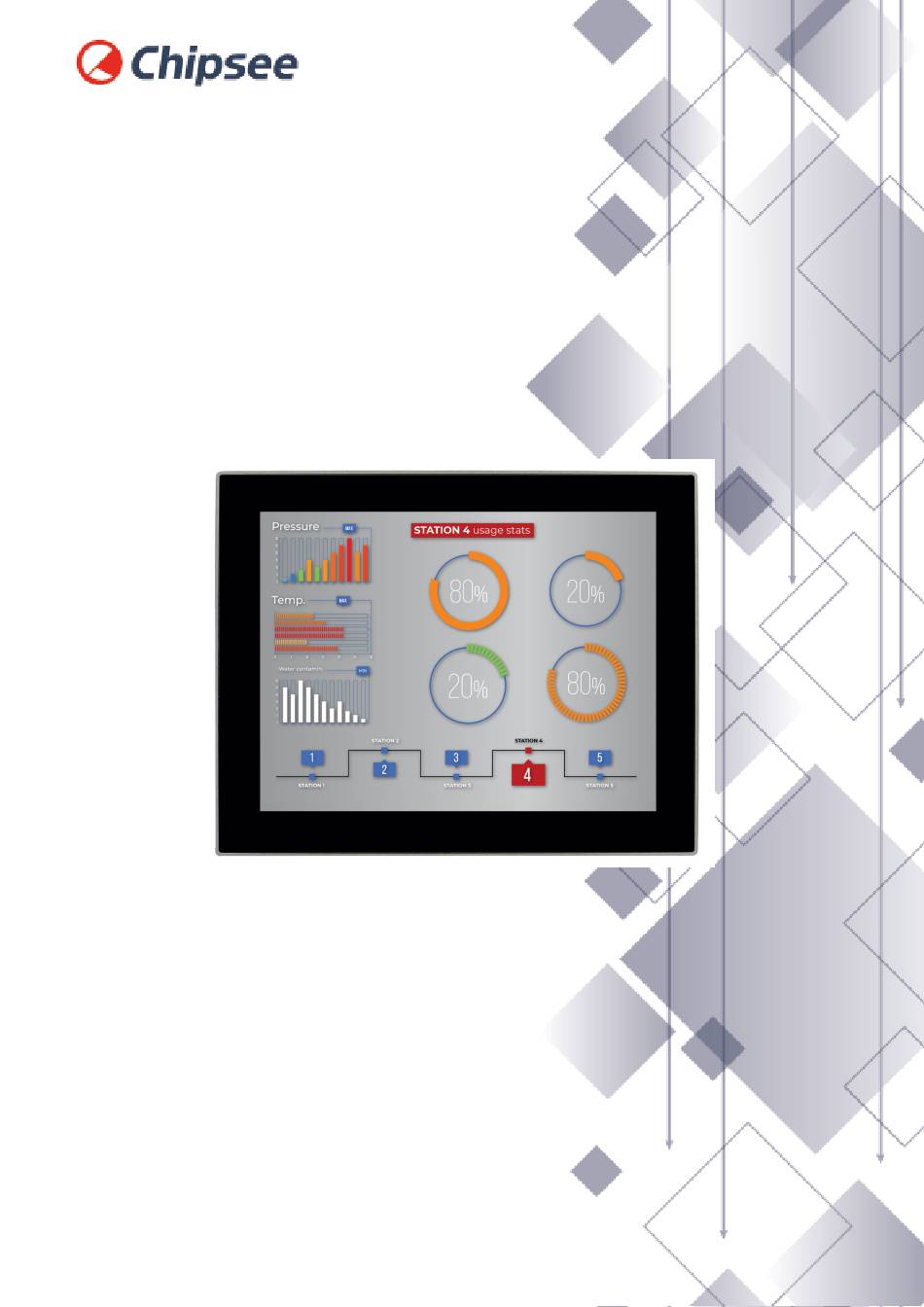

  • Page 1 Industrial PC PPC-A72-150-C PN: CS10768R150 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
  • Page 2: Table Of Contents

    Contents 1. PPC-A72-150-C 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. DB9 Connectors 1.6.2. RS232+RS485 Connector 1.6.3. USB Connectors 1.6.4. LAN Connectors 1.6.5. WiFi & BT Module 1.6.6.
  • Page 3: Ppc-A72-150-C

    PPC-A72-150-C PPC-A72-150-C Front View Rear View Chipsee Page 3 of 24...
  • Page 4: Product Overview

    Side View 2 Product Overview ® The Cortex -A72/53 series PPC-A72-150-C (PN: CS10768R150) is a high-quality industrial panel PC. It features a 15” ten-point capacitive touch screen with a resolution of 1024 x 768 pixels and brightness of 350 cd/m .
  • Page 5: Ordering Options

    It also provides a complete set of peripheral interfaces. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The...
  • Page 6: Optional Features

    Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com...
  • Page 7: Power Input

    Power Input The PPC-A72-150-C Industrial Panel PC can be powered by a wide range of input voltages: From 12V to 36V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the product as shown on the figure below.
  • Page 8: Touch Screen

    Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A72-150-C Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely.
  • Page 9: Rs232+Rs485 Connector

    PPC-A72-150-C RS232+RS485 Connector Figure 518: DB9 Connector RS232+RS485 Connector The serial communication interfaces (RS485 and RS232) are routed to a 16-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS422 interfaces can reach up to 115200 kbps.
  • Page 10 PPC-A72-150-C RS232+RS485 Connector Figure 519: Serial pins connector The table below offers more detailed description of every pin and its definition: RS232 / RS485 / CAN Pin Definition: Pin Number Definition Description Pin 1 RS232_4_RXD USB RS232 4 RXD signal...
  • Page 11: Usb Connectors

    Table 124 Connectivity Section  Note If you need different RS232/RS485 configuration, contact the Chipsee Technical Support at support@chipsee.com. USB Connectors There are 4 x dual USB 2.0 HOST connectors onboard, as shown on the figure below. Figure 520: USB 2.0 HOST Connectors There is also 1 x USB 3.0 HOST connector and 1 x USB Type-C connector, as shown below.
  • Page 12: Lan Connectors

    Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). WiFi & BT Module The PPC-A72-150-C Industrial Panel PC is equipped with the popular Realtek RTL8723 WiFi/ BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN).
  • Page 13: 4G/Lte Module

    Figure 524: WiFi+BT Antenna 4G/LTE Module The PPC-A72-150-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE Antenna Connector to ensure 4G/LTE works on the PPC-A72-150-C.
  • Page 14: Expansion Connector

    Expansion Connector Expansion Connector The PPC-A72-150-C Industrial Panel PC has 1 x Expansion Connector (closed by default), as shown on the figure below. This connector has connected to isolated GPIO signals. The table below gives details about the definition of every Pin.
  • Page 15: Tf Card Slot

    Take all the necessary precautions while working with electrostatic-sensitive equipment. TF Card Slot The PPC-A72-150-C Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 32GB of memory. Figure 527: TF (micro SD) Card Slot ...
  • Page 16: Power Button

    Figure 530: Power button Measurements and Mounting Procedure The outer mechanical dimensions of PPC-A72-150-C are 377 x 307 x 58mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements.
  • Page 17 PPC-A72-150-C Measurements and Mounting Procedure Figure 532: Panel Mounting-1 Figure 533: Panel Mounting-2 Chipsee Page 17 of 24...
  • Page 18 PPC-A72-150-C Measurements and Mounting Procedure Figure 534: Panel Mounting-3 Figure 535: Panel Mounting-4 Chipsee Page 18 of 24...
  • Page 19 PPC-A72-150-C Measurements and Mounting Procedure Figure 536: Panel Mounting-5  Note Please make sure the display is not exposed to high pressure when mounting into an enclosure. VESA Mounting Chipsee Page 19 of 24...
  • Page 20 PPC-A72-150-C Measurements and Mounting Procedure Figure 537: VESA Mounting-1 Figure 538: VESA Mounting-2 Chipsee Page 20 of 24...
  • Page 21 PPC-A72-150-C Measurements and Mounting Procedure Figure 539: VESA Mounting-3 Chipsee Page 21 of 24...
  • Page 22 PPC-A72-150-C Measurements and Mounting Procedure Figure 540: VESA Mounting-4 You can find detailed information about mounting in the Mount IPC Guide. Chipsee Page 22 of 24...
  • Page 23: 3D Model

    PPC-A72-150-C 3D Model 3D Model PPC-A72-150-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. Chipsee Page 23 of 24...
  • Page 24: Disclaimer

    If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
