Front I/O Device - Compaq dc5800 - Microtower PC Reference Manual

Front I/O Device

You do not have to remove the fan/outer baffle to remove the front I/O device.
1. Prepare the computer for disassembly
2. Remove the access panel
3. Remove the front bezel
4. Disconnect the front I/O cable (FRONT_AUD, P23) from the blue connector on the system board
and the USB cable (FRONT_USB, P24) from the yellow connector on the system board.
5. Rotate the drive cage to its upright position.

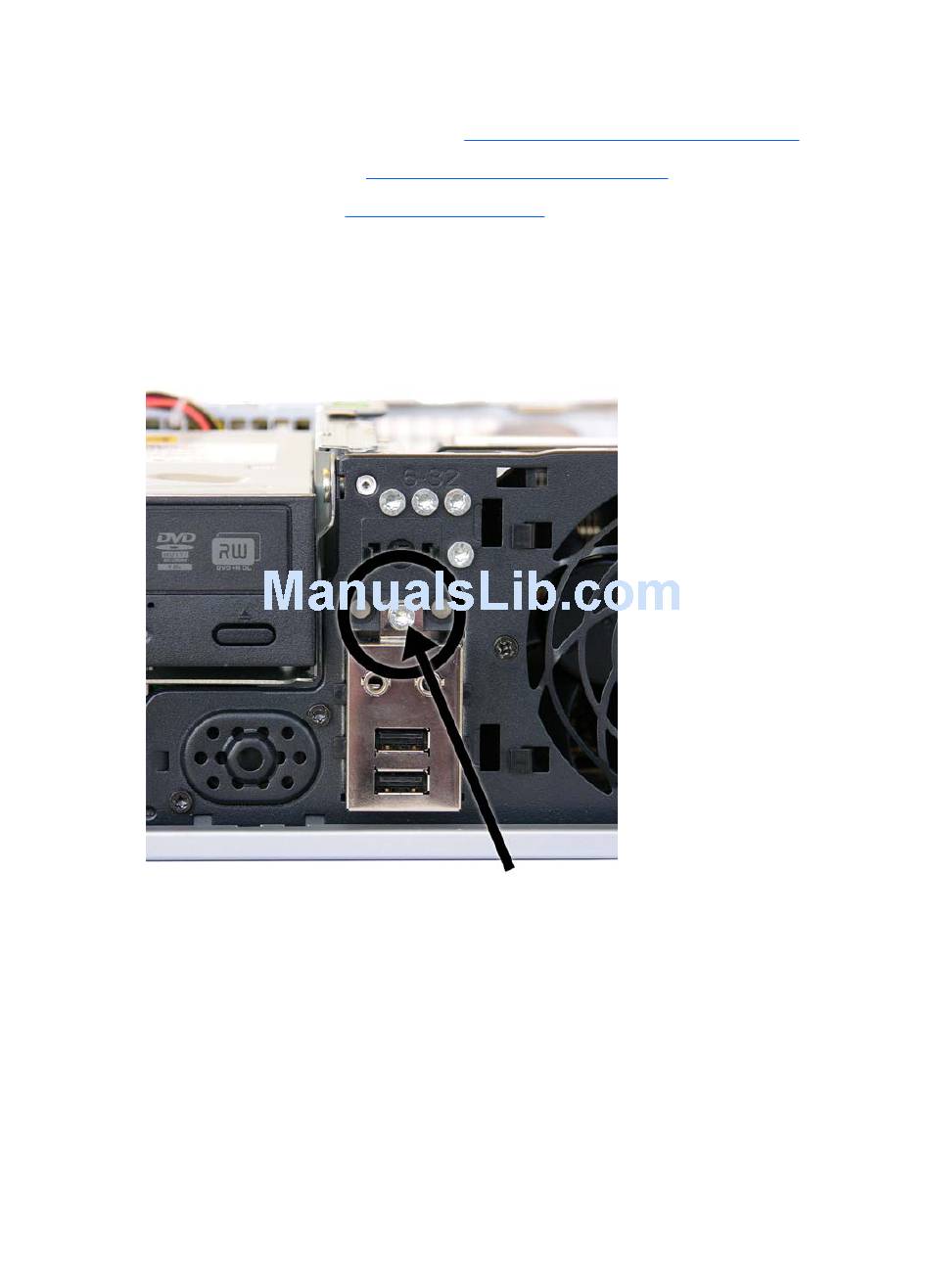

6. Remove the silver T15 screw that secures the front I/O device to the chassis.
7. Pull the device from the chassis and guide the cables through the hole to remove them from the
chassis.
To reinstall the front I/O device, reverse the removal procedure.
When reinstalling the front I/O device, be sure to guide the cables through the opening in the drive cage
directly behind the front I/O device slot in the front of the chassis.
(Preparation for Disassembly on page
(Computer Access Panel on page
(Front Bezel on page 117).
110).
116).
Front I/O Device 157
