Inner Baffle
1.
Prepare the computer for disassembly
2.
Remove the access panel
3.

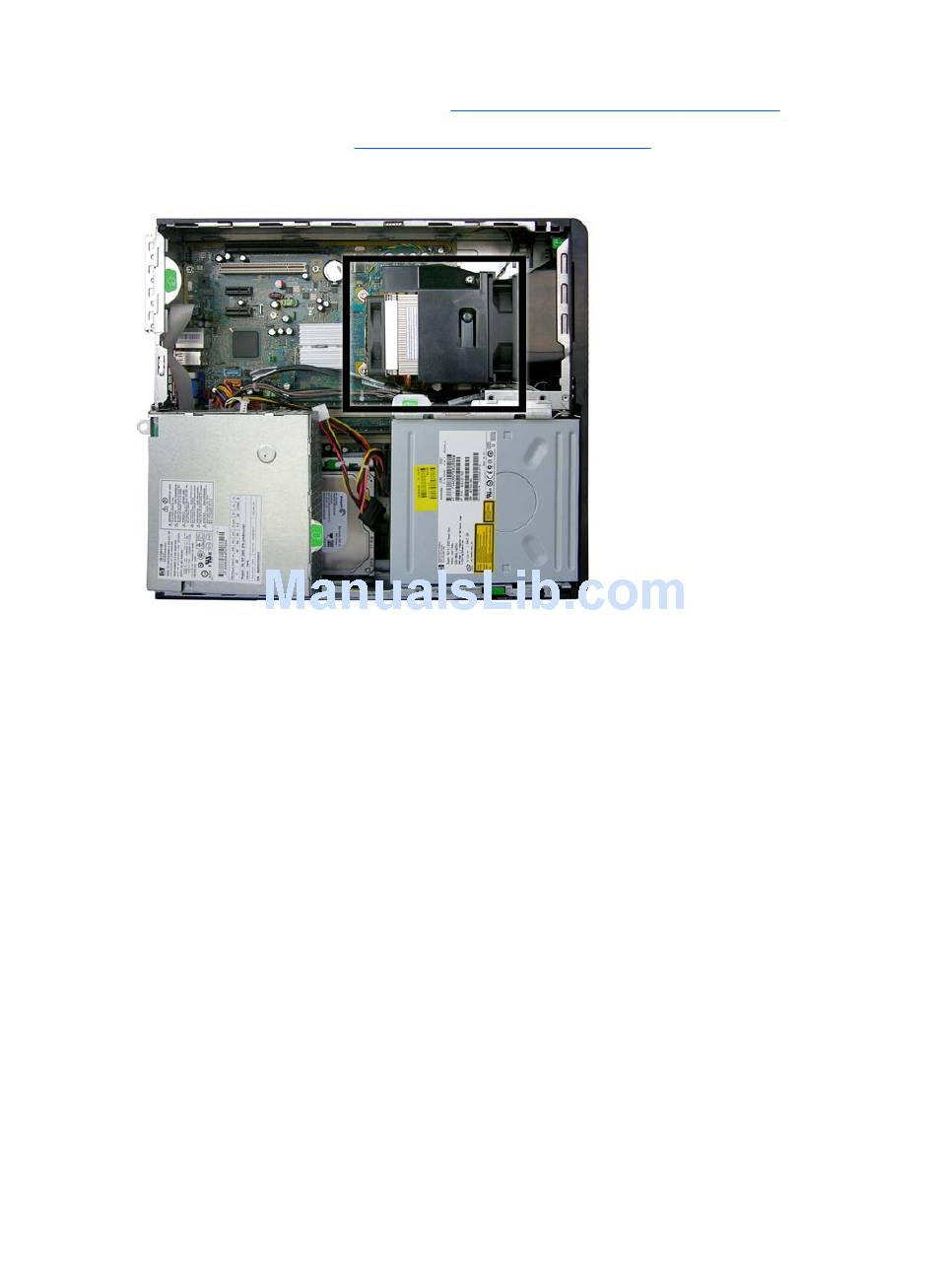

Lift the inner baffle straight up out of the chassis.
To install the inner baffle, reverse the removal procedure.
When reinstalling the inner baffle, be careful of the location of the power switch wire.
154 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
(Preparation for Disassembly on page
(Computer Access Panel on page
110).
116).
