Power Supply
1.
Prepare the computer for disassembly
2.
Remove the computer access panel
3.
Disconnect all power cables from the drives and from the system board.
4.

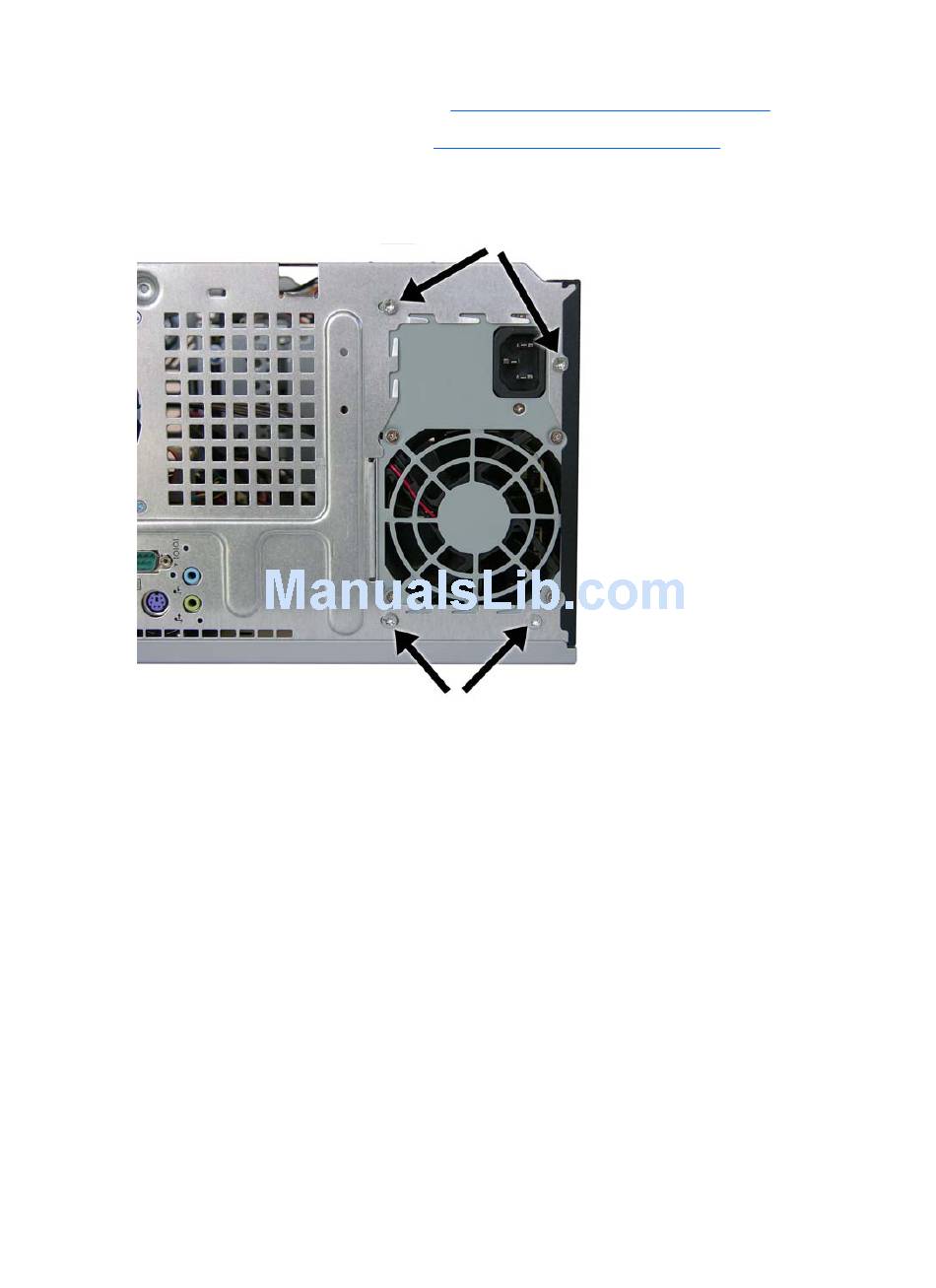

Remove the four silver T15 screws that connect the power supply to the chassis.
104 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
(Preparation for Disassembly on page
(Computer Access Panel on page
61).
66).
