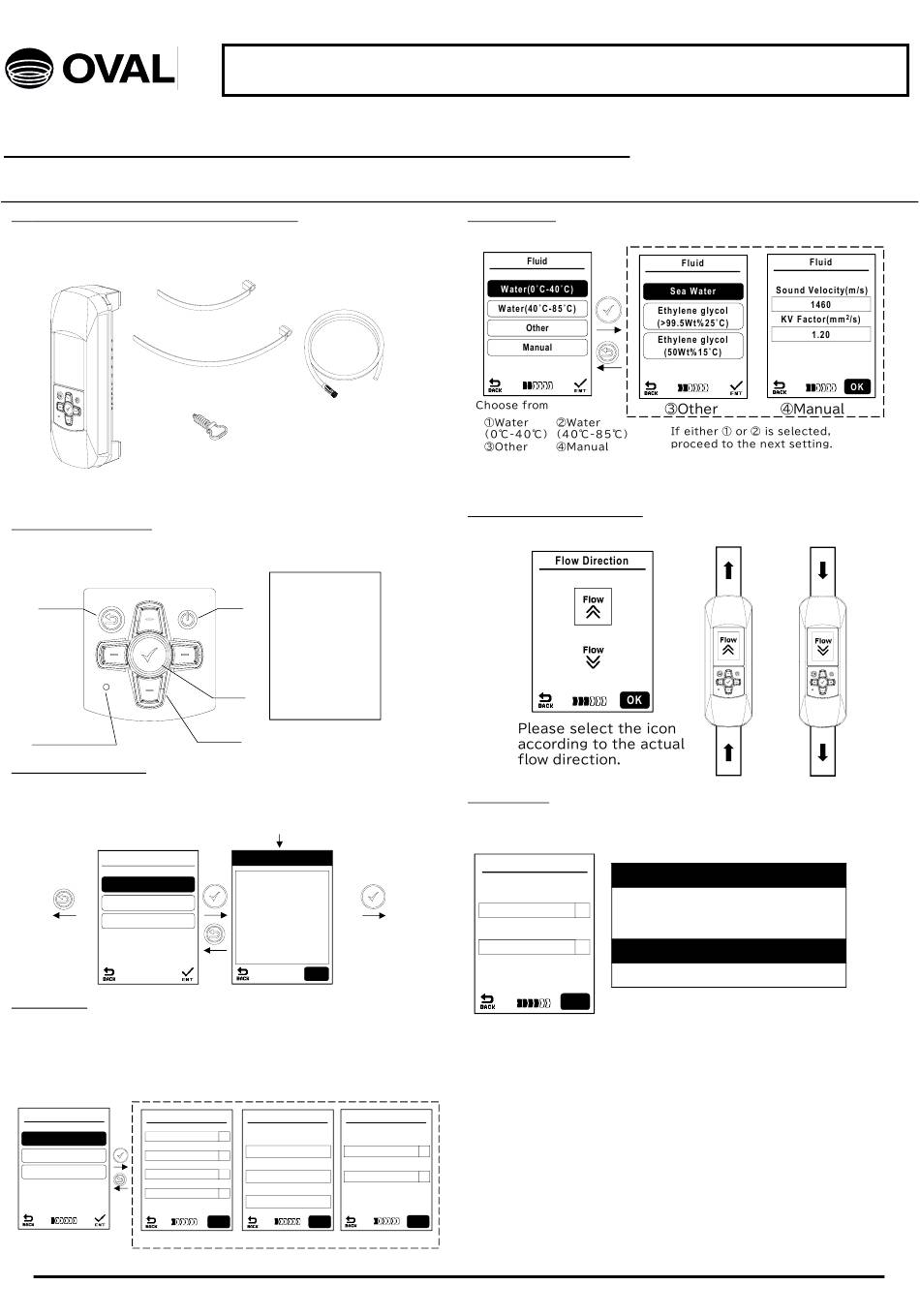

Battery-powered Clamp-on Type Ultrasonic Flowmeter for Liquid
Startup Guide for UC-1
Read this instruction carefully to use the device correctly. For detailed information, please refer to the instruction manual
(U-501)
1. Checking the delivered items
Components of this product are shown below.
After opening the box, please check that these items are
included.
Resin bands (Short)
Resin bands (Long)
Resin wing screws
Flowmeter
2. Powering ON
Turn on the flowmeter by pressing the power key about
three seconds.
Return
key
Indicator lamp
(LED)
3. Quick Setup
After powering on, "Quick Setup" will start.
Please make settings for measurement at each step.
Setup
Quick Setup
Advanced Setup
Parameter List
8.Menu
3-1.Pipe
Select the pipe where the flowmeter will be installed and
set its parameters.
(*)Select pipe that is always full of water, has no
disturbances in the flow, and is clean inside and out.
For details, please refer to section 5 and the manual.
Pipe
ASME
Standard
Manual
B36.10
Simple Setup
Sch. 5S
①Standard
Thank you very much for purchasing OVAL's Battery-powered Clamp-on Type Ultrasonic Flowmeter for
Liquid UC-1. This instruction provides summarized the precautions for using the Battery-powered Clamp-
on Type Ultrasonic Flowmeter for Liquid UC-1 safely and correctly.
×2
×2
Output cable
*No-voltage
contact output
type only
×4
Power
key
UC-1
F/W: V□.□.□
Enter
key
Direction
Screen After Powering ON
key
Powering ON
Quick Setup
Follow the steps to
set up the items
required for
measurement.
Next
Pipe
Pipe
Outer Diameter(mm)
33.4
Thickness(mm)
1.7
Sound Velocity(m/s)
1"
3200
OK
Next
②Manual
③Simple Setup
3-2. Fluid
Set the information about the fluid to be measured.
(*) KV Factor:Kinematic Viscosity Factor
3-3. Flow Direction
Set the flow direction.
3-4. Unit
Set the units for instantaneous flow rate (Flow rate) and
totalized flow rate (Total).
Unit
Flowrate
m
3
Total
3-1.Pipe
m
Pipe
Material
Metal
Nominal Diameter
25A (1")
OK
(1)
Flowrate
L/s, L/min, m
/h
bbl/min, bbl/h, gal/min, gal/h,
3
3
ft
/min, ft
/h
3
Total
3
L, m
, bbl, gal, ft
OK
The above units can be selected.
Ins.No.U-501-SU-1-E
3
3
3
/min, m
/h, m
/day,
3

Advertisement

loading
Need help?

Need help?

Do you have a question about the UC-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oval UC-1

  • Page 1 Ins.No.U-501-SU-1-E Thank you very much for purchasing OVAL’s Battery-powered Clamp-on Type Ultrasonic Flowmeter for Liquid UC-1. This instruction provides summarized the precautions for using the Battery-powered Clamp- on Type Ultrasonic Flowmeter for Liquid UC-1 safely and correctly. Battery-powered Clamp-on Type Ultrasonic Flowmeter for Liquid Startup Guide for UC-1 Read this instruction carefully to use the device correctly.
  • Page 2 Ins.No.U-501-SU-1-E 3-5.Output 3-6.Parameter List Each product model has different output settings. Check the setting information. If there are no problems, Please refer to the appropriate section. press the Confirm key and proceed to step 4. If there are problems, press the Return key to go back to Model Section No.
  • Page 3 Check the signal. If successful, start measuring. ②Wrap bands around the pipe and tighten by hand. Signal Check Signal Check Signal Check Installation Strength Strength Strength Fix the UC-1 to the pipe. Be sure to adjust. Success Start Start Start Measure Screen Measure Screen Measure Screen ①Start...
  • Page 4 Manual No. "U-501." In addition, be sure to read the Simulation Mode precautions for handling the product (Manual No. “G-001”). Simulation Mode SIMULATED FLOW ▼ https://www.oval.co.jp/manual/ ON, OFF Flowrate Simulated Flow(%) Indicator (Initial value:OFF) during operation...
