Icom IC-M9 Instruction Manual page 8

EEE

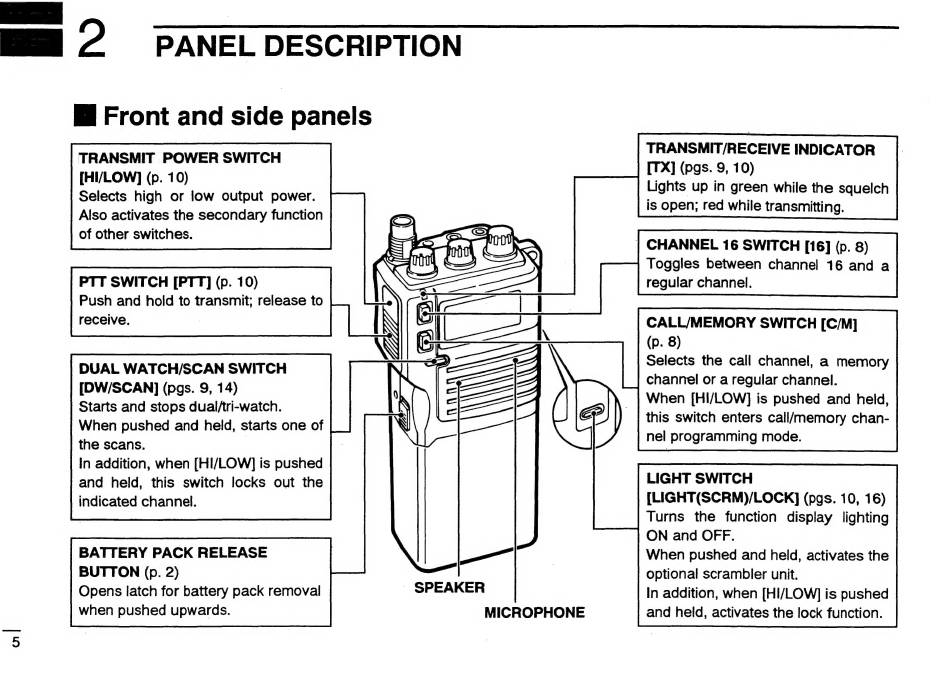

ma 2 PANEL DESCRIPTION
Mi Front and side panels
TRANSMIT POWER SWITCH
[HI/LOW] (p. 10)
Selects high or low output power.
Also activates the secondary function
of other switches.
PTT SWITCH [PTT] (p. 10)
Push and hold to transmit; release to
receive. :
CALL/MEMORY SWITCH [C/M]
(p. 8)
Selects the call channel, a memory
channel or a regular channel.
When [HI/LOW] is pushed and held,
this switch enters call/memory chan-
nel programming mode.
DUAL WATCH/SCAN SWITCH
[DW/SCAN] (pgs. 9, 14)
Starts and stops dual/tri-watch.
When pushed and held, starts one of
the scans. |
In addition, when [HI/LOW] is pushed
and held, this switch locks out the
indicated channel.
LIGHT SWITCH
[LIGHT(SCRM)/LOCK] (pgs. 10, 16)
Turns the function display lighting
ON and OFF.
on |
