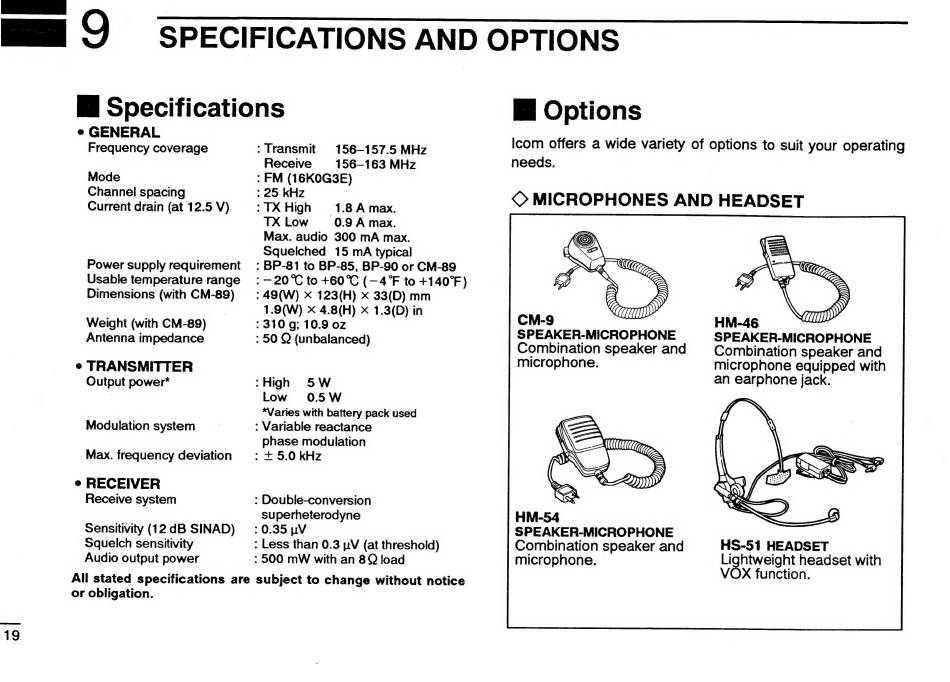

9 SPECIFICATIONS AND OPTIONS
e GENERAL l
Frequency coverage : Transmit 156-1575 MHz
Icom offers a wide variety of options to suit your operating
Receive 156-163 MHz needs.
Mode : FM (16KOG3E)
OS Sede © MICROPHONES AND HEADSET
Current drain (at 12.5 V) : TX High 1.8 A max.
TX Low 0.9 A max.
Max. audio 300 mA max.
Squelched 15 mA typical
Power supply requirement
: BP-81 to 88-05, BP-90 or CM-89
Usable temperature range
:—20°C to +60 (—4°F to +140F)
Dimensions (with CM-89)
: 49(W) x 123(H) x 33(D) mm
| 1.9(W) x 4.8(H) x 1.3(D) in
Weight (with CM-89) : 310 g; 10.9 oz
phase modulation
Max. frequency deviation : + 5.0 kHz
e RECEIVER
Receive system : Double-conversion
superheterodyne
Sensitivity (12 dB SINAD)
: 0.35 uV
SPEAKER-MICROPHONE
Squelch sensitivity
: Less than 0.3 uV (at threshold)
Combination speaker and
HS-51 HEADSET
:
Audio output power
: 500 mW with an 8Q load
microphone.
Von headset with
unction.
