Icom IC-M9 Instruction Manual page 7

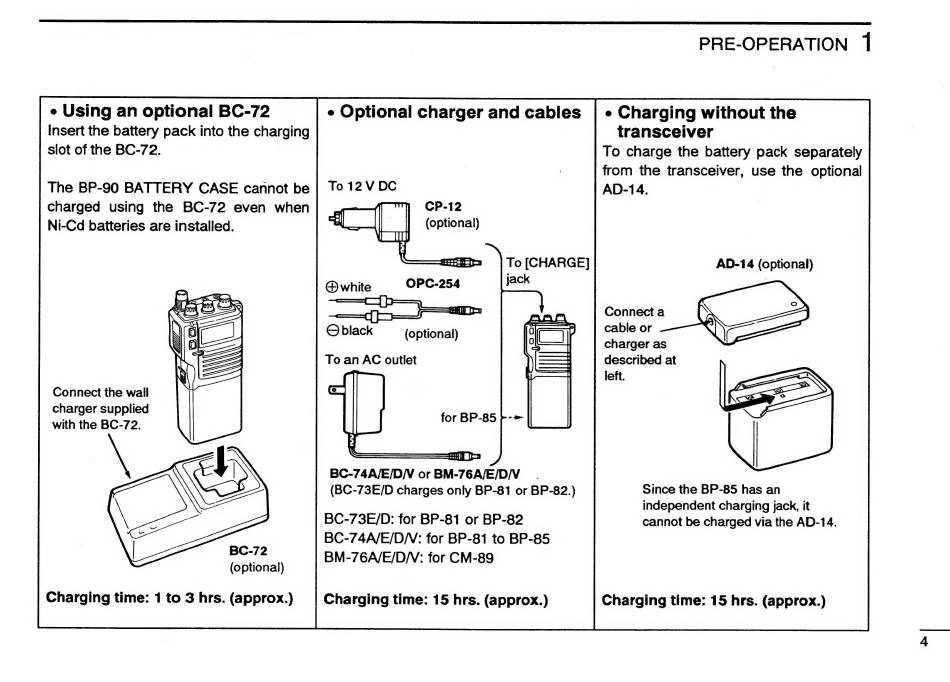

PRE-OPERATION 1
e Charging without the
transceiver
To charge the battery pack separately
from the transceiver, use the optional
AD-14.
e Using an optional BC-72 e Optional charger and cables
Insert the battery pack into the charging
slot of the BC-72.
The BP-90 BATTERY CASE cannot be | To 12V DC
charged using the BC-72 even when
Ni-Cd batteries are installed.
(optional)
Connect a
cable or
charger as
described at
left.
© black (optional)
To an AC outlet
Connect the wall
charger supplied
with the BC-72.
BC-74A/E/D/V or BM-76A/E/D/V_ .
(BC-73E/D charges only BP-81 or BP-82.)
BC-73E/D: for BP-81 or BP-82
BC-74A/E/D/V: for BP-81 to BP-85
BM-76A/E/D/V: for CM-89
Since the BP-85 has an
independent charging jack, it
cannot be charged via the AD-14.
(optional)
