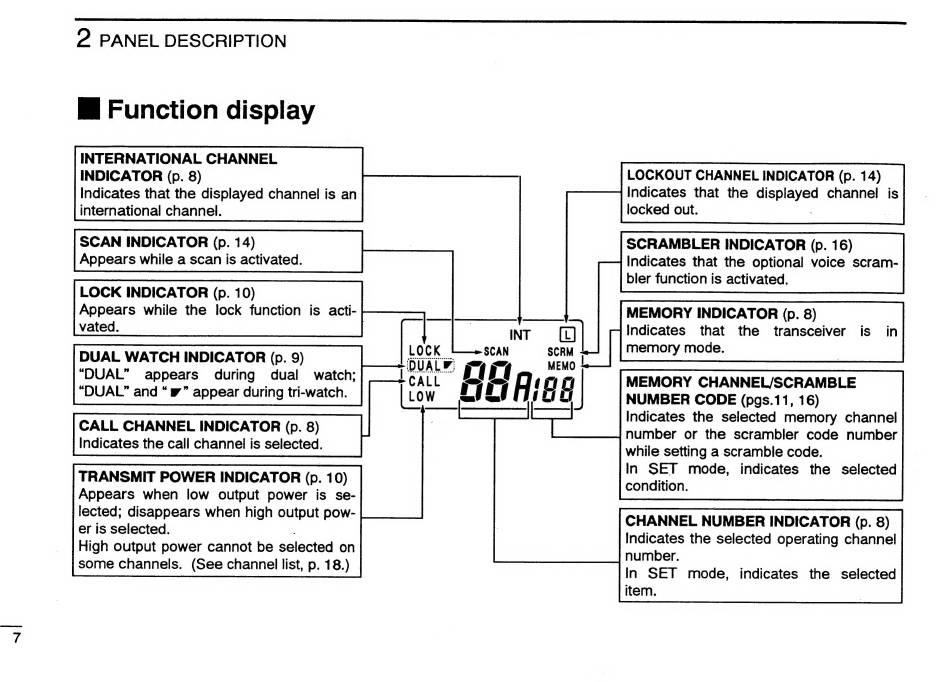

2 PANEL DESCRIPTION
W Function display
INTERNATIONAL CHANNEL
INDICATOR (p. 8)
Indicates that the displayed channel is an
international channel.
SCAN INDICATOR (p. 14)
Appears while a scan is activated.
LOCK INDICATOR (p. 10)
Appears while the lock function
is acti-
vated.
LOCKOUT CHANNEL INDICATOR (p. 14)
Indicates that the i
a channel
is
locked out.
.:
SCRAMBLER INDICATOR (p. 16)
Indicates that the optional voice scram-
bler function is activated.
MEMORY
INDICATOR (p. 8)
Indicates
that
the
transceiver
is
in
memory mode.
MEMORY
CHANNEL/SCRAMBLE
NUMBER CODE (pgs.11, 16)
Indicates the selected memory
channel
number
or the scrambler code number
while setting a scramble code.
In SET
mode,
indicates
the
selected
condition.
CALL CHANNEL INDICATOR (p. 8)
Indicates the call channel is selected.
TRANSMIT POWER INDICATOR (p. 10)
Appears when
low output power
is se-
lected; disappears when high output pow-
er is selected.
High output power cannot be selected on
some channels.
(See channel list, p. 18.)
CHANNEL NUMBER INDICATOR (p. 8)
Indicates the selected operating channel
number.
In SET
mode,
indicates
the
selected
item.
sl
