Instruction Manual
1035 Bed
NV VERMEIREN BELGIUM
Vermeirenplein 1/15
2920 Kalmthout
Tel: 00 32 (0)3 620 20 20
Fax: 00 32 (0)3 666 48 94

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1035 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vermeiren 1035

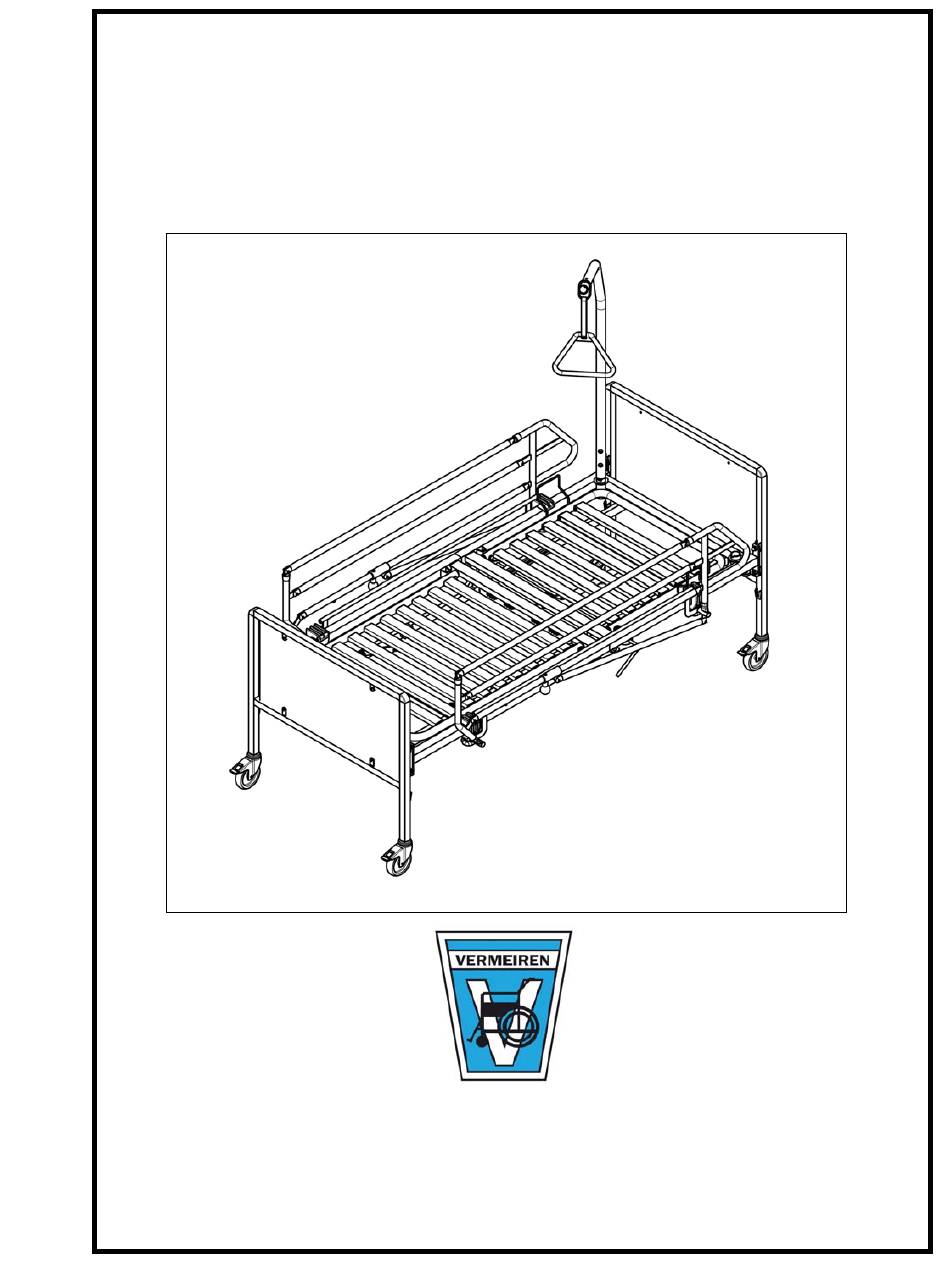

  • Page 1 Instruction Manual 1035 Bed NV VERMEIREN BELGIUM Vermeirenplein 1/15 • 2920 Kalmthout Tel: 00 32 (0)3 620 20 20 • Fax: 00 32 (0)3 666 48 94...
  • Page 2 Instructions for use of the care bed First and foremost, we'd like to congratulate you on your choice of a Vermeiren care bed. Vermeiren NV strives to provide good products and services supported by the quality system that complies with the EN ISO 9001:2000 norm.
  • Page 3: Table Of Contents

    CONTENTS 1. General Information …. 1.1 Mattress information 2. Product information 2.1 General …. 2.2 Parts of the care bed …. 2.3 Colour specifications …. 3. Safety regulations …. 4. Instructions for assembly 4.1 Slatted base …. 4.2 Anterior and posterior frames …. 4.3 Agitation rails ….
  • Page 4: General Information

    1. General information First read the instructions carefully. References to left and right are to be understood as if one is lying on the back in the bed. The instructions for assembly of the care bed refer to images and item numbers. For questions or comments, contact your local dealer.
  • Page 5: Colour Specifications

    Slatted bases All our slatted bases can be provided with wood or PVC slats. Type 978BH slatted base: 2-part slatted base with a hydraulic head frame and a foot frame to be operated manually. Type 989 side rails – per pair (fig. 2) Fig.2 Type 968 self hoist 2.3 Colour specifications...
  • Page 6: Safety Regulations

    3. Safety regulations The brakes on the care bed must be blocked during care of a patient. No one may be under the bed at any time. To avoid pinching of the fingers, always use the designated strap when adjusting the head- and foot ends of the slatted base. 4.
  • Page 7 4.2 Type 666 anterior and posterior frames Slide the attachment pieces of the slatted base into the grooves of the anterior and posterior slats (fig. 4). Press on the outside of the wheel to engage the brake system on the anterior and posterior frames. Warning: Incline the frames of the bed slightly to ease attachment with the slatted base.
  • Page 8: Slatted Base

    Distance ≥ 250 mm Distance ≤ 60 mm Fig.5 4.4 Type 968 self hoist (fig. 6) Place the hoist in the designated assembly position (A) at the head of the slatted base. Insert the ring in 1 of the 2 holes of the self hoist. (B) Attach the plastic hand grip with the strap through the ring.
  • Page 9 Fig.6 5. Operation of the care bed 5.1 Foot of type 978B H slatted base If the strap on the lower part of the foot is pulled up, the foot frame can be placed in 6 different positions. You will hear a clear click at each position. To return the foot frame to the lowest position, pull the strap completely up.
  • Page 10: Disassembly Of The Care Bed

    To completely lower the head frame, pull up on the handle and place downward pressure on the head frame at the same time. 5.3 Type 989 metal agitation rails To lower the agitation rail, pull out the knob and at the same time push down on the horizontal pipes at the head end.
  • Page 11: Weight

    9. Weight Weight of the parts Anterior frame 666 10.8 kg/piece Posterior frame 666 10 kg/piece Head end 978B H Without PVC slats 19.57 kg/piece With wooden slats 21.65 kg/piece Foot end 978B H Without PVC slats 15.5 kg/piece With wooden slats 18.6 kg/piece PVC slat set for slatted base 4.54 kg/15 pieces...
  • Page 12 Belgium Germany N.V. VERMEIREN N.V. Vermeiren Germany Co. Ltd. Vermeirenplein 1 / 15 Wahlerstr. 12 a B-2920 Kalmthout D-40472 Düsseldorf Fon: +32(0)3 620 20 20 Fon: +49(0)211 94 27 90 Fax: +32(0)3 666 48 94 Fax: +49(0)211 65 36 00 website: www.vermeiren.com...
