Summary of Contents for Harman DigiTech JamMan Express XT

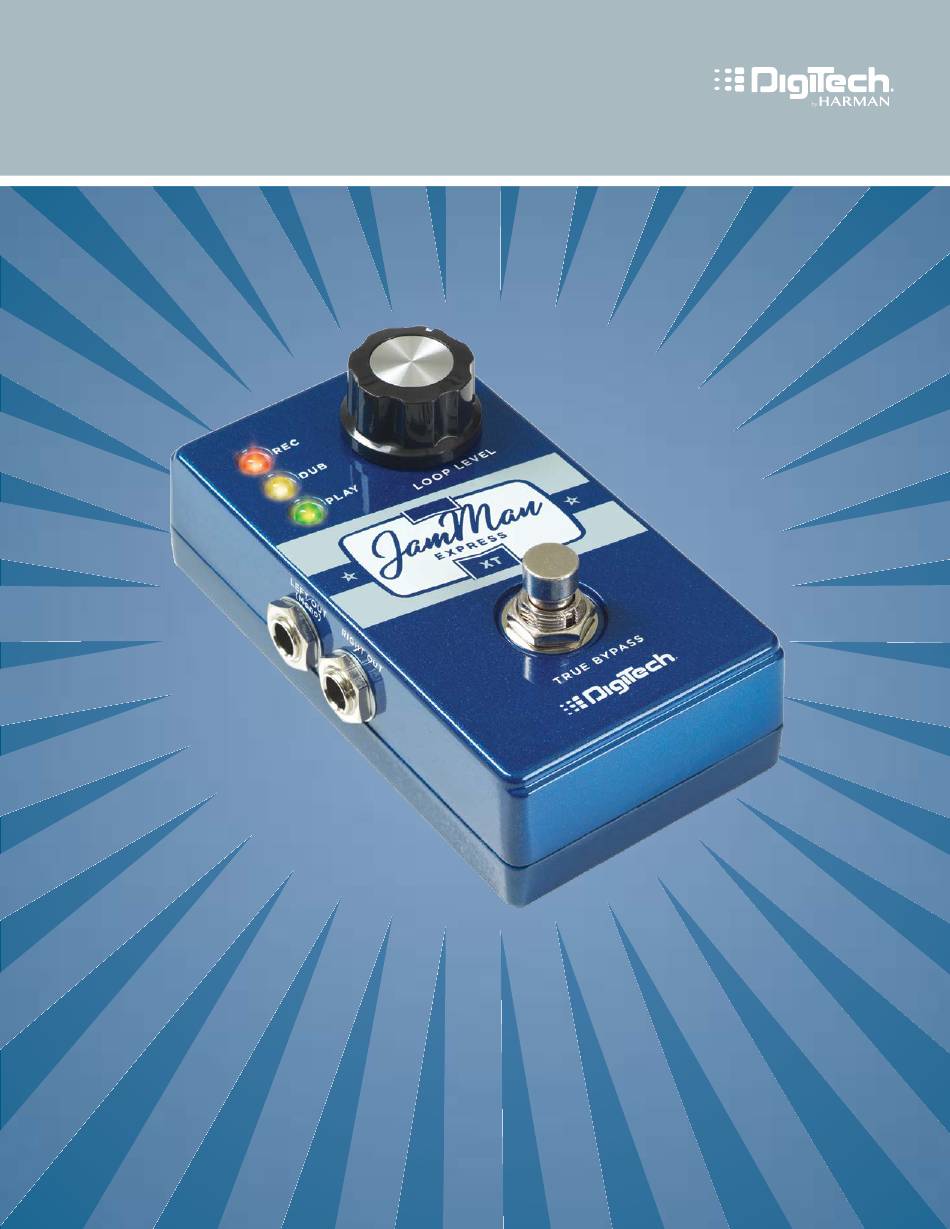

  • Page 1 JamMan Express XT S t e r e o L o o p e r w /J a m S y n c Owner’s Manual...
  • Page 2: Warranty

    Warranty We at DigiTech® are very proud of our products and back-up each one we sell with the following warranty: 1. Please register online at digitech.com within ten days of purchase to validate this warranty. This warranty is valid only in the United States.
  • Page 3: Table Of Contents

    Table of Contents Overview ���������������������������������������������������������������������� 1 Introduction ��������������������������������������������������������������������������������1 Features ����������������������������������������������������������������������������������������1 9V Battery Installation ����������������������������������������������� 1 The User Interface & Connectors ����������������������������� 2 The User Interface ��������������������������������������������������������������������2 Connectors ���������������������������������������������������������������������������������3 Connection Diagrams ������������������������������������������������� 4 Standard Looping �����������������������������������������������������������������������4 Multi-Track Looping Using JamSync ���������������������������������������4 Multi-Player/Multi-Track Looping Using JamSync ����������������5 Operation ���������������������������������������������������������������������...
  • Page 4: Overview

    Overview Introduction The JamMan Express XT is a versatile, yet simple to operate stereo looper� With stereo inputs/outputs, three LEDs to indicate looping status, and true bypass operation, the JamMan Express XT allows you to record mono or stereo loops with ease and without compromising your tone when bypassed�...
  • Page 5: The User Interface & Connectors

    The User Interface & Connectors The User Interface 1� LOOP LEVEL Knob This knob controls the output level of the loop� 2� Status LEDs These LEDs indicate the status of the pedal as shown in the below table� Status Loop is being recorded. Loop is playing.
  • Page 6: Connectors

    Connectors 4� Power Jack Connect an optional PS0913DC power supply to this jack� 5� JAMSYNC OUT Connect this jack to the JAMSYNC IN jack on another JAMSYNC compatible device for host control over loop playback and stop functions� 6� JAMSYNC IN Connect this jack to the JAMSYNC OUT jack on another JAMSYNC compatible device to client loop...
  • Page 7: Connection Diagrams

    Connection Diagrams Standard Looping HARMAN PS0913DC AMP 1 POWER SUPPLY GUITAR Out 1 (Mono) In 1 (Mono) Out 2 In 2 AMP 2 Optional Multi-Track Looping Using JamSync AMP 1 JAMSYNC HARMAN PS0913DC POWER SUPPLIES GUITAR Out 1 (Mono) In 1 (Mono)
  • Page 8: Multi-Player/Multi-Track Looping Using Jamsync

    Multi-Player/Multi-Track Looping Using JamSync HARMAN PS0913DC AMP 1 POWER SUPPLY GUITAR Out 1 (Mono) In 1 (Mono) Out 2 In 2 host AMP 2 HARMAN PS0913DC AMP 1 POWER SUPPLY BASS Out 1 (Mono) In 1 (Mono) client 1 DI 1...
  • Page 9: Operation

    Operation The JamMan Express XT was designed to be very simple to use right out of the box� This section of the manual describes how to perform the basic looping functions� Recording a Phrase The JamMan Express XT records a single phrase and then plays it back as a continuous loop� To record a phrase: 1�...
  • Page 10: Recording Overdubs

    Recording Overdubs Once a phrase has been recorded, overdubs can be added on top of the phrase� To record overdubs: 1� Press the to start loop playback� The will light solid green and FOOTSWITCH PLAY LED the phrase will begin playing� 2�...
  • Page 11: Using Jamsync

    Using JamSync Connection & Record Sequence JamSync allows you to synchronize multiple JamSync compatible devices using optional 1/8” mini stereo (TRS) cables (see below cable diagram)� This allows a JamSync host to control the loop playback and stop functions for all connected JamSync clients, providing multi-track 1/8”...
  • Page 12 record to the client and instead wish to record to the client at a later time in the song� When using this method, you must arm the client to record before the host device reaches its loop start point� It’s at this loop start point that the host will send the record command to the client device(s), so the client device must be armed in advance to receive the record command�...
  • Page 13 4� Play your part� 5� When finished recording to the client, press theclient’s once to set FOOTSWITCH loop end point� The phrase will automatically begin playing back along with the host loop and the will light solid green� PLAY LED 6�...
  • Page 14: Specifications

    112 mm (L) x 65 mm (W) x 33 mm (H) Product Weight: 0�6 lb / 0�27 kg Shipping Weight: 0�75 lb / 0�32 kg Product specifications are subject to change without notice. DigiTech, Silent Clear, and JamSync are trademarks of HARMAN�...
  • Page 15 PHONE: (801) 566-8800 WEB: digitech�com SUPPORT: digitech�com/en-US/support JamMan Express XT Owner's Manual 5038282-C © 2017 HARMAN� All rights reserved� DigiTech is a registered trademark of HARMAN�...
