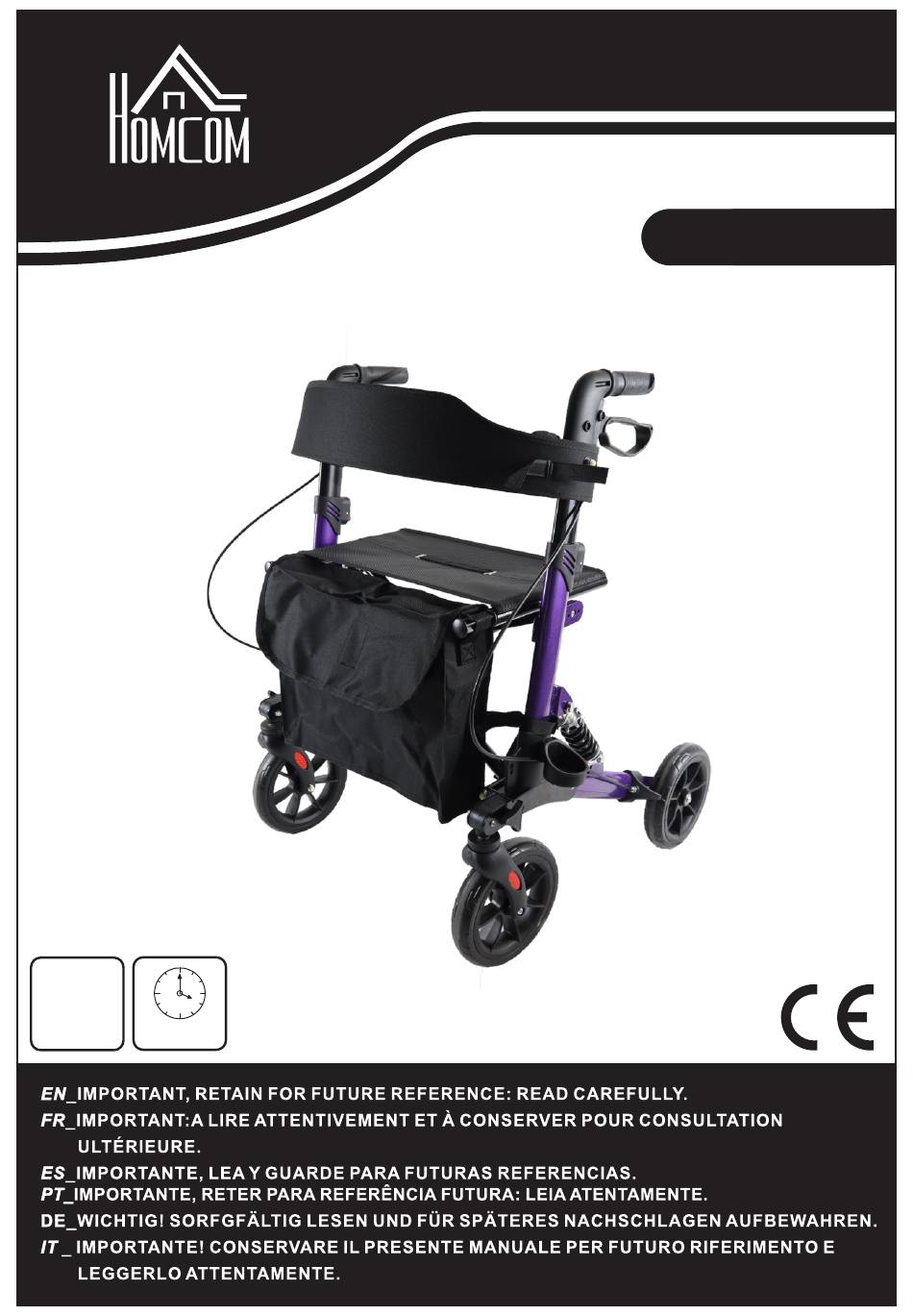

- Page 1 IN240800492V01_UK IN240800492V01_UK_712-066V00 STEPS 0.5 HR US_CA...
- Page 2 INTRODUCTION The rollators are manufactured from high-quality materials and include a seat, bag, and locking brakes. The hand-bar are adjustable in height and the rollator folds easily for transport or storage. • INTENDED USE Designed to assist the user to walk, rest and carry small items of shopping for both indoor and outdoor use on flat surfaces by a single individual with limited mobility with a maximum weight as shown.
- Page 3 1. Handle 2. Adjustable parking/running brake 3. Backrest 4. Seat area 5. Height adjustable spring button 6. Shock absorbing spring 7. Bag holder 8. Brake adjustment 9. Rear wheels 10.Front w wheels 11.Cane holder Figure 1 Your rollator is equipped with various components, you should know these components and parts before proceeding to read this user manual.
- Page 4 2.Take out the fastening knob that has been inserted on the front wheels tube, unfold the front wheels, then insert the fastening knob again into the front wheels tube and turn clockwise until it locks, as shown in Figure 2. Figure 2 3.Unfold rear wheels and install Shock absorbing spring as shown in Figure 3 and Figure 4.
- Page 5 Figure 5 5. Press the both sides of the seat, then the seat was secured at a click. 6.Attach the bag. Hook the tabs of the bag into the hooks provided and use the adhesive tape on the bag to tie the rollator, so that the bag is more stable. 1.
- Page 6 Brake adjustment is carried out as follows: The brakes must always be adjusted so that they are the same on both wheels Braking effect is achieved. If the rear brake is set too light or too tight, it will affect the Function of the brake! Turn the adjusting screw anti-clockwise to increase the tension, then lock the...
- Page 7 Folding and storing the rollator Complete! Step 4: Remove the fastening knobs and fold the front wheels upward . MAINTENANCE Over a period of time, the brake cables may stretch, and if no further adjustments can be made, the cables should be replaced. Seek the help of the manufacture when replacing brake cables.
