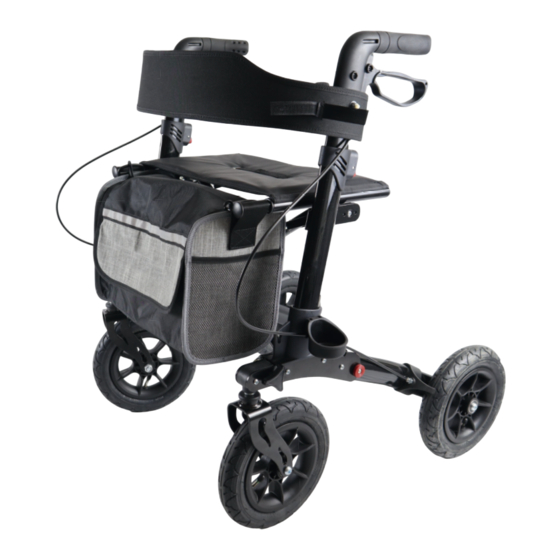

HOMCOM 712-069V00 Instructions Manual

HOMCOM 712-069V00 Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
IN240800495V01_UK
IN240800495V01_UK_712-069V00
9
STEPS
0.5 HR
US_CA

Advertisement

loading
Need help?

Need help?

Do you have a question about the 712-069V00 and is the answer not in the manual?

Questions and answers

Related Manuals for HOMCOM 712-069V00

Summary of Contents for HOMCOM 712-069V00

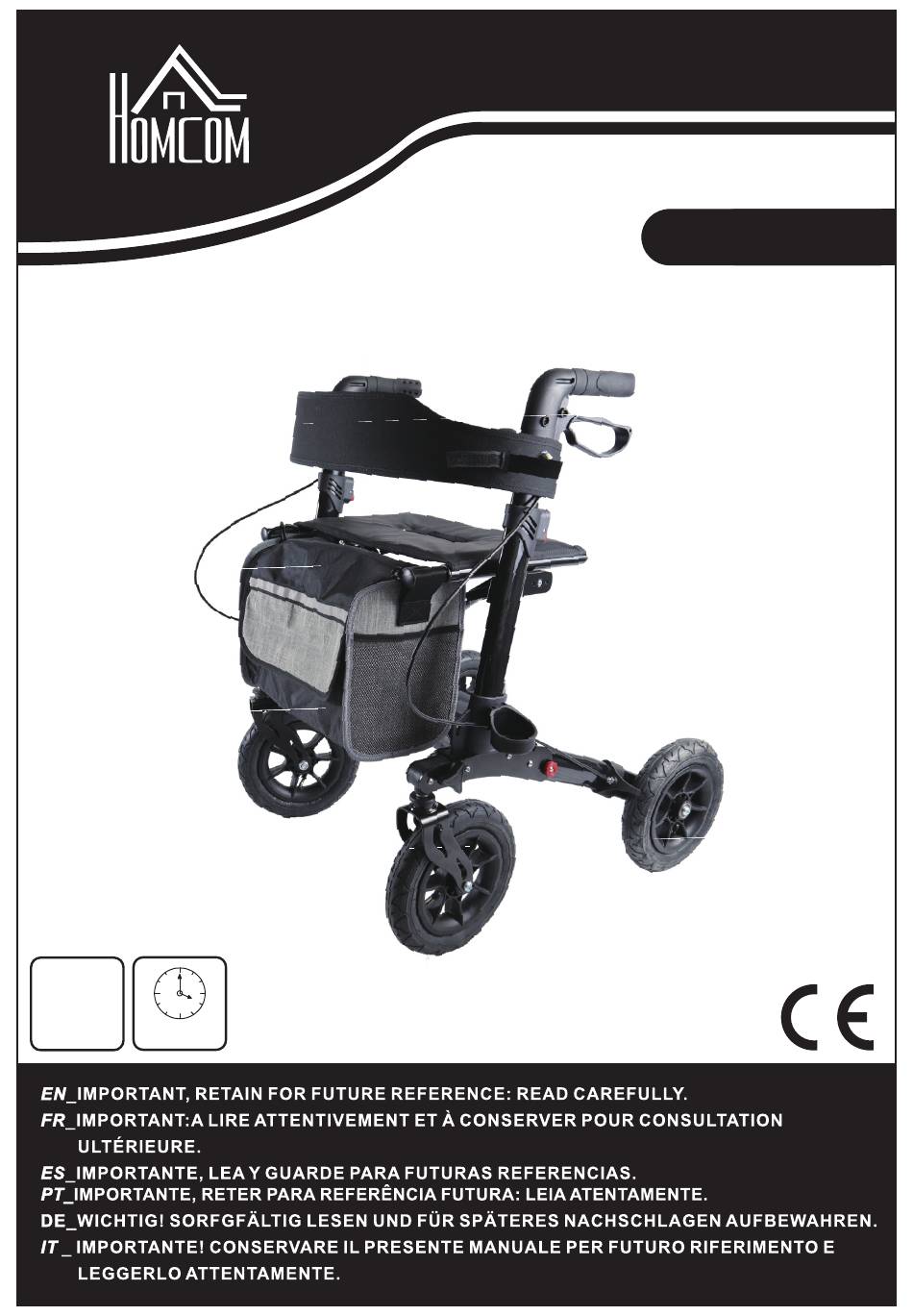

  • Page 1 IN240800495V01_UK IN240800495V01_UK_712-069V00 STEPS 0.5 HR US_CA...
  • Page 2 INTRODUCTION The rollators are manufactured from high-quality materials and include a seat, bag, and locking brakes. The hand-bar are adjustable in height and the rollator folds easily for transport or storage. • INTENDED USE Designed to assist the user to walk, rest and carry small items of shopping for both indoor and outdoor use on flat surfaces by a single individual with limited mobility with a maximum weight as shown.

  • Page 3: Specification

    1. Handle 2. Adjustable parking/running brake 3. Backrest 4. Seat area 5. Height adjustable spring button 6. Shock absorbing spring 7. Bag holder 8. Brake adjustment 9. Rear wheels 10.Front w wheels 11.Cane holder Figure 1 Your rollator is equipped with various components, you should know these components and parts before proceeding to read this user manual.
  • Page 4 2.Take out the fastening knob that has been inserted on the front wheels tube, unfold the front wheels, then insert the fastening knob again into the front wheels tube and turn clockwise until it locks, as shown in Figure 2. Figure 2 3.Pull up the quick-fold screw and unfold rear wheels as shown in Figure 3.
  • Page 5 Figure 5 5.Attach the bag. Hook the tabs of the bag into the hooks provided. Brake 1. Pull the brake handles up to brake the rollator. 2. Push the brake handles down to lock the rear wheels. In this, position, the parking brake of the, rollator is active.
  • Page 6 Removable cane holder Attach the cane holder to the side of the frame in the provided position. To do this, slide the cane holder onto the holder from above. Folding and storing the rollator Step 1: Step 2: Step 3: Pull the handle in the Continue to push the Pull up the quick-fold screw...

  • Page 7: Maintenance

    MAINTENANCE Over a period of time, the brake cables may stretch, and if no further adjustments can be made, the cables should be replaced. Seek the help of the manufacture when replacing brake cables. The castors should be checked that they are secure each time before using the rollator.
