Summary of Contents for HOMCOM 712-050

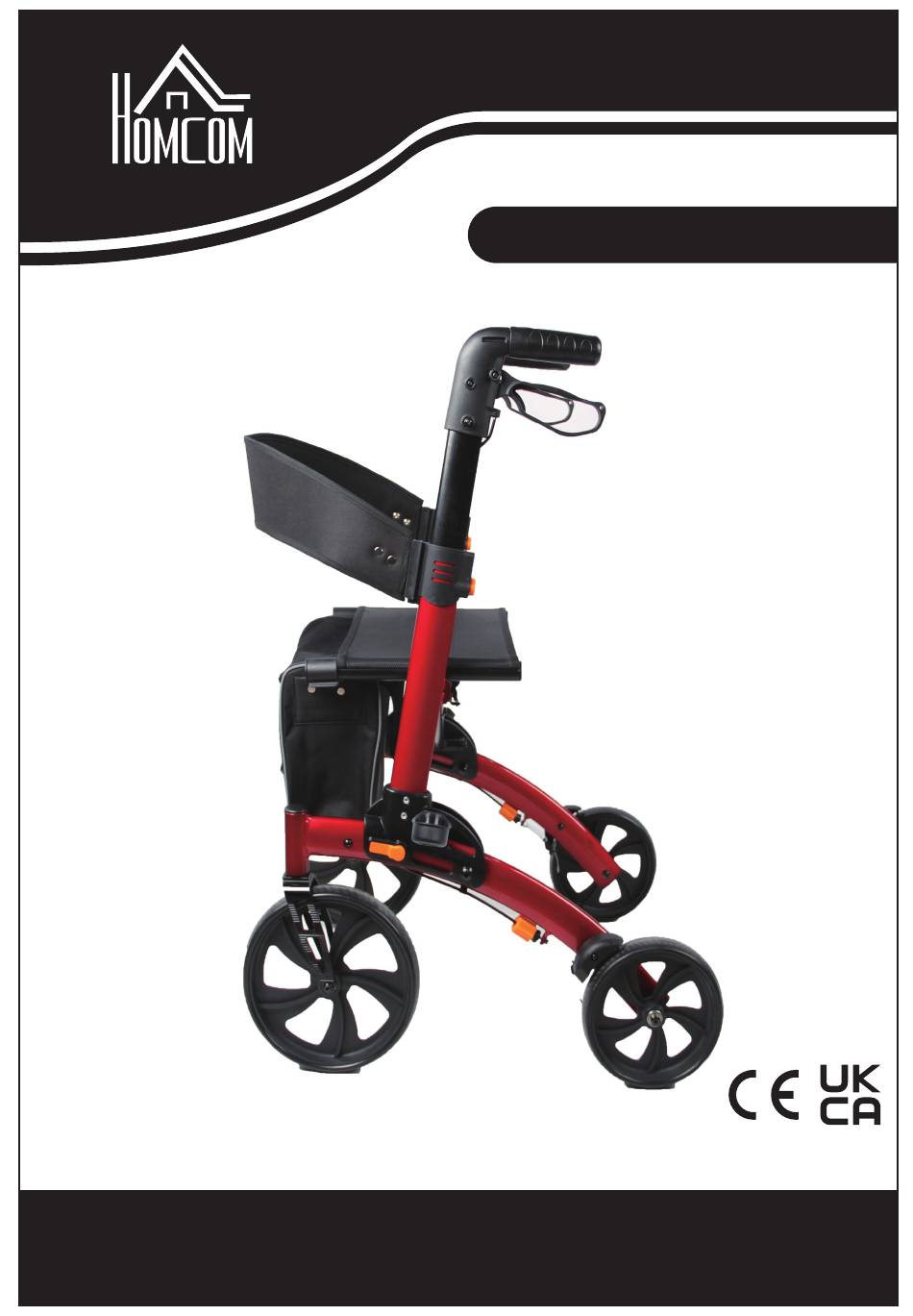

- Page 1 INcwb075_UK 712-050_712-050V01 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY & INSTRUCTION MANUAL...
-
Page 2: Safety And Warning Instructions
SAFETY AND WARNING INSTRUCTIONS DO NOT exceed 300 lb. weight capacity. DO NOT use as a wheelchair or to transport someone DO NOT self-propel or scoot around while seated. Care should be taken to ensure that all moving parts are in good working order before operation. -
Page 3: Product Features

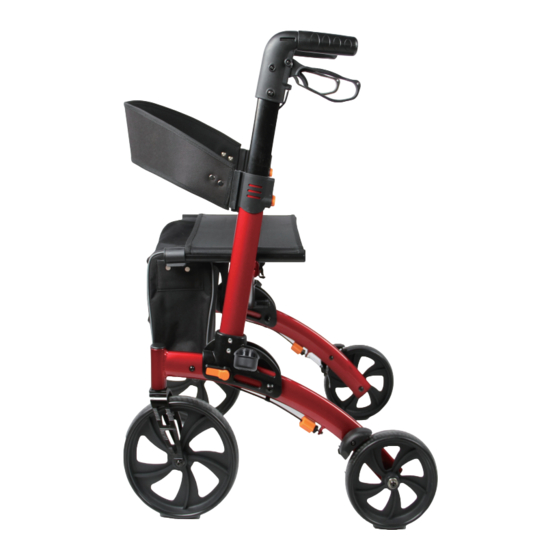

PRODUCT FEATURES ① ② ⑪ ③ ④ ⑨ ⑩ ⑫ ⑬ ⑦ ⑧ ⑥ ⑤ Handgrip Front wheel Parking/hand brake Seat Height adjustment tube Seat rail Height adjustment lock Backrest Fold Adjustment Lock Personal item bag Rear wheel Cane Holder Brake adjustment knob... - Page 4 ASSEMBLY INSTRUCTIONS Carefully remove the accessories from the box and remove all protective- packaging. ● Unfold the rollator base 1.Unfold and Stand the rollator Base on all four wheels. 2.Hold the handle and push it upward to make the folding device buckle with the main frame.
- Page 5 ASSEMBLY INSTRUCTIONS ● Handle and forearm adjustment Press the orange release button and push the armrest tube downward to your desired height. There should be an audible "click" to signal that the orange release button is fully engaged.Repeat the steps for the other arm rest. The armrests should be set at a height that is high enough that you feel support under your forearms when standing upright, but not so high as it may cause your shoulders to “hunch.”...
- Page 6 ATTACHING / REMOVING THE PERSONAL ITEM BAG The personal item bag has plastic clips which go over the seat rail extension on the front end of the Rollator(located at front end of the seat) , slide the clips over the right and left seat rail extensions. ATTACHING/ REMOVING THE BACKREST With the logo side of the backrest upright and facing the front of the Rollator, slide the T-slot on the end of the backrest onto the respective mating T-ridge...
- Page 7 USING BRAKES /PARKING BRAKES To apply the brakes while walking with the Rollator, pull both brake handles evenly toward you. To set the parking brakes, while using one hand to hold the handgrip use the other hand to push the brake handle forward until it clicks in locked position. ADJUSTINGBRAKES Basic Adjustments: To tighten the brakes if too loose, locate the orange screw knob under the...
- Page 8 How to Properly Fit Your Rollator Rollators are not One Size Fits All, and it is very important to choose a rollator that fits your height. Two things to consider are 1(handle height for proper walking posture and 2) seat height - which should allow you to sit safely and comfortably on the rollator with your back resting on the backrest, your feet flat on the ground and your legs at a 90 degree angle.
-
Page 9: Maintenance
How to walk with a rollator 1. Move between the arm pads, while standing in an upright position with good posture. 2. Hold the brake handles with your hands while your forearms rest on the platform. 3. This position will allow you to quickly stop the rollator or control your speed if necessary by squeezing the handbrake.
