Installation

Placement

!
NOTE: It is recommended that the bottom of the unit be mounted between 127 mm and 1016 mm from the
ground to maintain an optimized viewing angle of the flame.
WARNING: The top of the fireplace must be installed a minimum of 610 mm from the ceiling.
The fireplace must be installed a minimum of 127 mm from the ground.
Wi-Fi
For installations where the use of the Flame Connect app is desired, ensure the fireplace is located within range of a
Wi-Fi network.
Installation Recommendations for Overhanging Objects
For overhanging temperature-sensitive objects, such as a television, a mantel, or artwork, always follow the
recommendations provided by its manufacturer for installation over a heater.

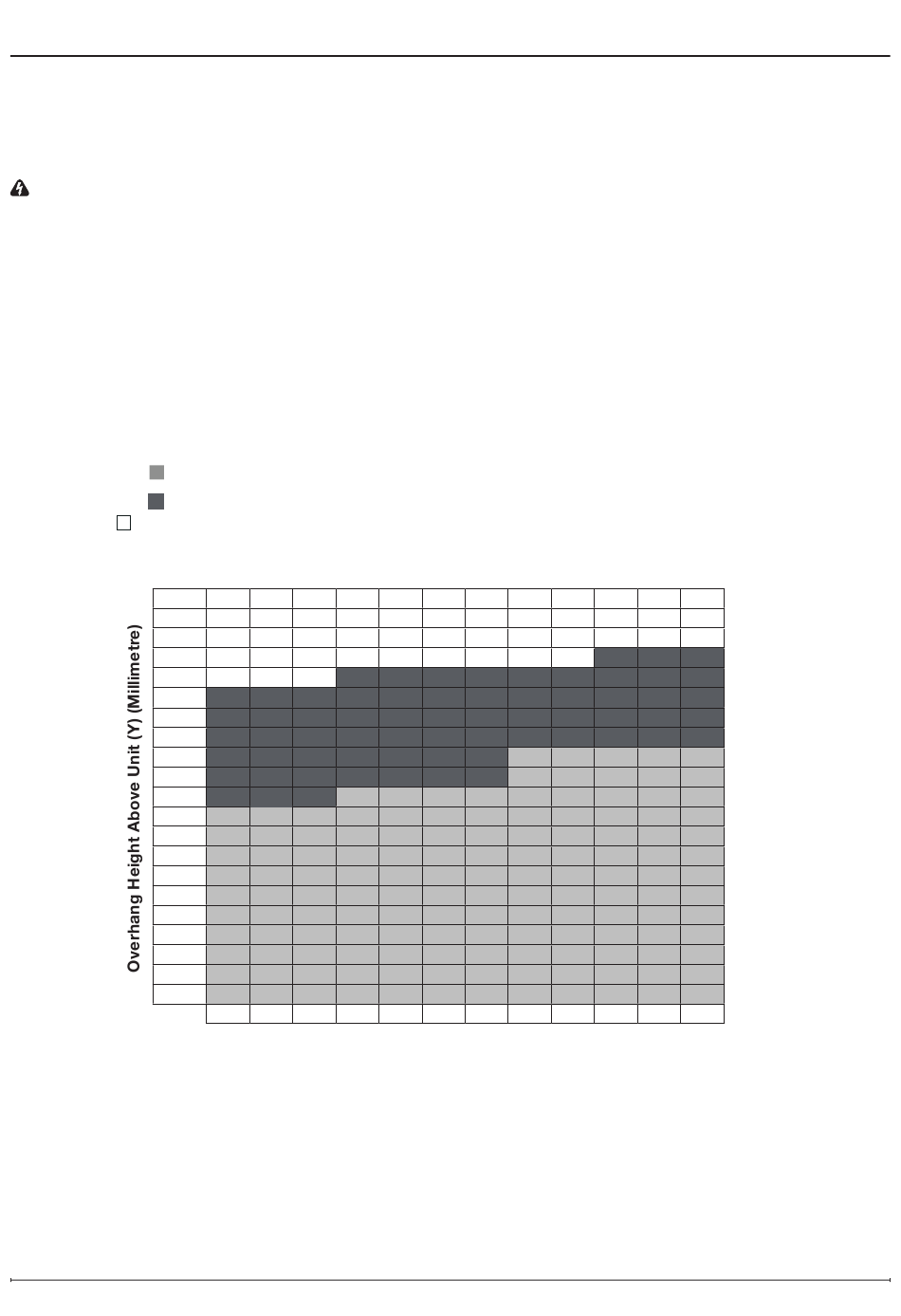

Figure 2 provides the overhang clearance recommendations for the fireplace. Areas above the fireplace are marked
as follows:
• Light grey box ( ) is subject to temperatures greater than 65°C.
• Dark grey box ( ) is subject to temperatures greater than 40°C
• Clear box ( ) is subject to temperatures less than 40°C
Figure 2
500
475
450
425
400
375
350
325
300
275
250
225
200
175
150
125
100
75
50
25
0
25 50 75 100
Overhang Depth (X) (Millimetre)
125 150 175 200 225 250 275 300
