Summary of Contents for Compliance West MegaPulse Defib-5PF-003

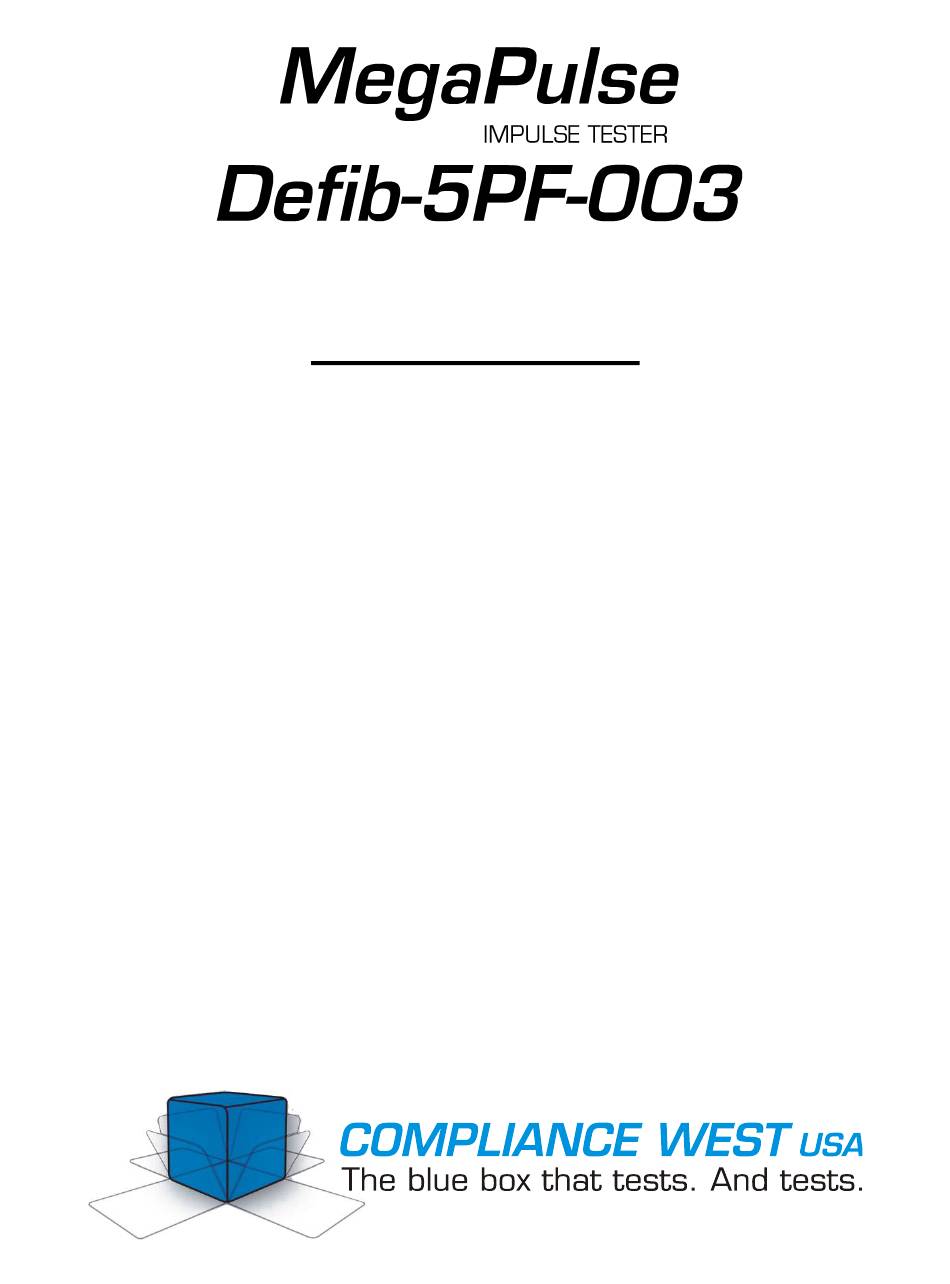

  • Page 1 Instruction Manual...
  • Page 3: Dear Customer

    To fully appreciate all the features of your new instrument, we suggest that you take a few moments to review this manual. Compliance West USA stands by your instrument with a full one-year warranty. If the need arises, please don't hesitate to call on us.
  • Page 5: Table Of Contents

    Table of Contents Section 1 ..............................1 Introduction to Impulse Testing with the MegaPulse PF series tester ............1 Safety Precautions ........................1 Test Personnel ..........................1 Testing Area ..........................1 Safety Techniques ........................2 Safety Markings ...........................2 Using the MegaPulse Impulse Tester ...................3 Section 2 ..............................4 Getting Started ............................4 Unpacking and Inspection ......................4 Packaging ........................4...
  • Page 7: Section 1

    Section 1 Introduction to Impulse Testing with the MegaPulse PF series tester The impulse test is designed to simulate impulse surges which occur in everyday life due to nearby lightning strikes, switching transients, and other high-frequency faults on the power distribution network. Impulse testing is the fundamental method for empirical verification of the adequacy of insulation.
  • Page 8: Safety Techniques

    Safety Techniques The high voltage circuit of the MegaPulse Defib-5PF-003 can be shut off at any time by turning OFF the rear power switch. Always press TRIGGER to discharge the tester before turning OFF. The MegaPulse tester is provided with a digital VOLTAGE ADJUST knob on the front panel. This should always be adjusted to the minimum position at the start of testing.
  • Page 9: Using The Megapulse Impulse Tester

    Using the MegaPulse Impulse Tester The impulse test involves high voltage and caution should be exercised when using the tester. The RETURN lead is referenced to building ground when properly connected. However, both the OUTPUT and RETURN leads must always be treated as Hazardous whenever the power switch of the MegaPulse is in the ON position.
  • Page 10: Section 2

    Check the shipping order against the contents of the container and report any damage or short shipment to Compliance West USA. Please save the shipping carton and packing material for the carrier’s inspection. Our customer support department will assist you in the repair or replacement of your instrument.
  • Page 11: Ac Line Voltage Requirements

    AC Line Voltage Requirements AC line voltage requirements for your Tester are noted on the rear panel of the instrument. Do not connect the instrument to a different voltage source. The cord packaged with your MegaPulse Tester is for use in the United States.
  • Page 12: Section 3

    Section 3 Specifications and Controls Specifications for the MegaPulse Defib-5PF-003 are listed in the table below and the component designations are shown in Figure 1. Table 1 Defib-5PF-003 Tester Specifications ELECTRICAL Output Voltage: 0 - 5100 V tolerance ±1% Main Capacitance: 32µF ±10%...
  • Page 13 50Ω 25MΩ 500µH 25MΩ 5100V 100Ω 32µF 100kΩ Ground 500:1 Figure 1 Defib-5PF-003 General Circuit Wiring...
  • Page 14: Front And Rear Panel Features

    The front panel features of the MegaPulse are shown in Figure 2and described in Table 2. The rear panel features of the MegaPulse are shown in Error! Reference source not found. and described in Table 2. Figure 2 MegaPulse Defib-5PF-003 Front Panel...
  • Page 15 Table 2 MegaPulse Defib-5PF-003 Front Panel Features ITEM NAME FUNCTION Adjust the digital voltage set point in the tester. Press the voltage knob to display the voltage set point. This setting will blink for a few VOLTAGE Adjust seconds on the front meter.
  • Page 16 Figure 3 MegaPulse Defib-5PF-003 Rear Panel Table 3 MegaPulse Defib-5PF-003 Rear Panel Feature ITEM NAME FUNCTION INPUT Switch The switch allows the selection of 115V or 230V input The fuse B is to protect the unit when supplying 230V. Fuse B...
  • Page 17: Section 4

    Section 4 Operating Instructions The Defib-5PF-003 tester consists of two parts; the pulse generation portion and the measurement portion. Please refer to the general electric circuit shown in Figure 1 to show the function of the Defib-5PF-003. The following procedure will explain how to generate a high voltage pulse with the MegaPulse unit. External Interlock The external interlock is a two position terminal block located on the rear panel.
  • Page 18: Voltage Set Point Adjustment

    Voltage Set Point Adjustment NOTE If the front display shows the word “Off” when trying the adjustment, it means the front Voltage knob had been disabled by the testminder software. See section “Front Keyboard and Voltage Knob Enable” To adjust the Voltage Set Point: Press the VOLTAGE Adjust knob one time to enable the adjustment mode, digits for thousands and hundreds will start blinking for a few seconds.
  • Page 19: Testing

    Testing The following procedure will verify that the MegaPulse Defib-5PF-003 tester is working correctly. We recommend that this procedure be conducted periodically to ensure proper operation of the tester. The following items are needed to conduct this procedure: A measuring instrument to monitor the output waveform.
  • Page 20: Section 5

    PERSONNEL ONLY. TO AVOID ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING OTHER THAN THE CONTAINED IN THE OPERATING INSTRUCTIONS. This section of the manual contains maintenance information for the MegaPulse Defib-5PF-003 impulse tester. A 1-year calibration cycle is recommended to maintain the specifications of the factory. The test equipment required for the performance test is a digital oscilloscope, high voltage oscilloscope probe, digital meter and a high voltage probe.
  • Page 21 Voltage Stop Disable / Keyboard Enable by Keyboard. If the MegaPulse Code 360 tester includes TestMinder option and has the Voltage Stop by the PC command activated, it is possible to disable it using the next keyboard sequence: Note: Disabling Voltage Stop enables the keyboard. Turn OFF the MegaPulse tester.
  • Page 22: Section 6

    Section 6 Technical Assistance Technical Assistance from Compliance West USA is available: Phone: (800) 748-6224 Hours: 8:30 AM - 4:30 PM Pacific Time. Also available on our web site at: www.compwest.com Contact: Compliance West USA 650 Gateway Center Way Suite D San Diego, CA 92102 USA.
  • Page 23: A.1 Commands List

    Appendix A A.1 Commands List All the commands are 4 bytes in size. The first two bytes identify the type of command and the third and fourth bytes are the data for the specific command. For example “1102” select the polarity for the surge test, where “11” is the type of command and “02”...
  • Page 24: A.2 Return Numbers

    A.2 Return Numbers The information returned is divided in ten different groups of four bytes. To read each group it is necessary to know the position of each group and count the number of bytes. The positions are: • Group 1 (from 1 to 4 byte) •...
  • Page 25: A.3 Custom Commands

    A.3 Custom Commands Bytes --> xxxx - xxxx - xxxx - xxxx - xxxx - xxxx - xxxx - xxxx - xxxx - xxxx Group--> 32 bit word Return Numbers High Item Description Group 1& 2 Reset Reset 2nd group of four digits to "0000" 1011-0000 Trigger 1 Duration Set Trigger 1 Time Duration (from 1mS to 9999 mS)
  • Page 26: A.4 How To Send Commands

    A.4 How to send commands All the commands showed in this document don't have any security redundancy, the user needs to make sure that every command that is sent is received by the MegaPulse unit. We have an in-house sotfware called Testminder and we will use it as an example of how to write your own scripts when you use our command set.
  • Page 27: Defib-5Pf-003 Schematics

    Appendix B Defib-5PF-003 Schematics Figure 5 Defib-5PF-003 General Wiring Diagram...
  • Page 28 Figure 6 Defib-5PF-003 Bottom Board...
  • Page 29 Figure 7 Defib-5PF-003 Top Board...
  • Page 30 Figure 8 Defib-5PF-003 MUX Control Board Part 1...
  • Page 31 Figure 9 Defib-5PF-003 MUX Control Board Part 2...
  • Page 32 Figure 10 Defib-5PF-003 500:1 Voltage Divider...
  • Page 33: Defib-5Pf-003 Bill Of Materials

    Appendix C Defib-5PF-003 Bill of Materials BOM for 60-739-A Defib-5PF-003 Bottom Board Schematic: 60-739-A Item Reference Description Comments 60-739- PCB1 Defib-5PF-003 Bottom Board 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132...
  • Page 34 BOM for 60-645-C5 Defib-5PF-003 Top Board Schematic: 60-645-C5 Item Reference Description Comments PCB1 60-645-C D5-PF Top Board 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132 Spade Lug, Male, .250 60-132...
  • Page 35 BOM for 60-704-A2 6CH Mux Board Schematic: 60-704-A2 Item Reference Description Comments PCB1 60-704-A GE U-RE Mux board 20-706 Capacitor, .1 uf, monolithic 20-707 Capacitor, 47 uF 16V 20-706 Capacitor, .1 uf, monolithic 20-707 Capacitor, 47 uF 16V 20-706 Capacitor, .1 uf, monolithic 20-706 Capacitor, .1 uf, monolithic 20-775...
  • Page 36 20-223 Resistor, 47 1/4w 1% 20-223 Resistor, 47 1/4w 1% 20-223 Resistor, 47 1/4w 1% 20-217 Resistor, 0 ohm 1/4w 20-217 Resistor, 0 ohm 1/4w 20-217 Resistor, 0 ohm 1/4w 20-217 Resistor, 0 ohm 1/4w 20-217 Resistor, 0 ohm 1/4w 20-217 Resistor, 0 ohm 1/4w 20-217...
