  • Page 1 MegaPulse IMPULSE TESTER Defib-5PF-002 Instruction Manual...
  • Page 2 To fully appreciate all the features of your new instrument, we suggest that you take a few moments to review this manual. Compliance West USA stands by your instrument with a full one-year warranty. If the need arises, please don't hesitate to call on us.

  • Page 4: Table Of Contents

    AC Line Voltage Requirements ....................12 Fuse Replacement ........................12 Front and Rear Panel Features ....................13 Figure 5. MegaPulse Defib-5PF-002 Front Panel ............13 Table 1. MegaPulse Defib-5PF-002 Front Panel ............14 Figure 6. MegaPulse Defib-5PF-002 Rear Panel ............15 Table 2.

  • Page 6: Section 1

    Section 1 Introduction to MegaPulse The impulse test is designed to simulate impulse surges which occur in everyday life due to nearby lightning strikes, switching transients, and other high-frequency faults on the power distribution network. Impulse testing is the fundamental method for empirical verification of the adequacy of insulation.

  • Page 7: Safety Techniques

    Safety Techniques The high voltage circuit of the MegaPulse Defib-5PF-002 can be shut off at any time by turning OFF the rear power switch. Always press TRIGGER to discharge the tester before turning OFF. The MegaPulse tester is provided with a digital VOLTAGE ADJUST knob on the front panel.
  • Page 8 Note that the voltage meter may indicate that some residual voltage is present on the main storage capacitor, even when the tester is first turned ON. This is due to inherent charging of the internal capacitors. Pressing the TRIGGER switch will discharge the capacitors (be sure not to touch the output and return leads when pressing the trigger switch).

  • Page 9: Section 2

    Your tester is warranted for a period of one year upon shipment of the instrument to the original purchaser. Specifications Specifications for the MegaPulse Defib-5PF-002 are listed in the table below and the component designations are shown in Figure 1 and Figure 2. For impulse waveform look at Figure 3 and Figure 4.
  • Page 10 Figure 1. Type A Diagram. Figure 2. Type B Diagram.
  • Page 11 Figure 3. Impulse waveform type A. Figure 4. Impulse waveform type B.

  • Page 12: Section 3

    Your Tester is shipped in a special protective container that should prevent damage to the instrument during shipping. Check the shipping order against the contents of the container and report any damage or short shipment to Compliance West USA. The container should include the following: •...

  • Page 13: Front And Rear Panel Features

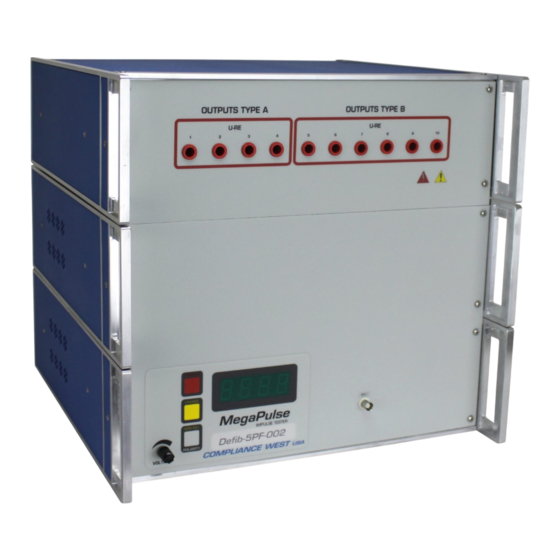

    The front panel features of the MegaPulse are shown in Figure and described in Table 1. The rear panel features of the MegaPulse are shown in Figure and described in Table 2. Figure 5. MegaPulse Defib-5PF-002 Front Panel...
  • Page 14 500:1 BNC 500:1 reference to verify delivery of pulse 10 Channel multiplexer outputs, each channel capable of delivering the pulse, channel 10-19 OUTPUTS activation is via commands on the back of the unit. Table 1. MegaPulse Defib-5PF-002 Front Panel...
  • Page 15 The switch allows the selection of 115V or 230V input Fuse B The fuse B is to protect the unit when supplying 230V. Use supplied cordset to connect the MegaPulse Defib-5PF-002 tester to an Appliance Inlet appropriate source of supply.

  • Page 16: Initial Checkout Procedure

    Initial Checkout Procedure The following procedure will verify that the MegaPulse Defib-5PF-002 tester is working correctly. We recommend that this procedure be conducted periodically to ensure proper operation of the tester. The following items are needed to conduct this procedure: A measuring instrument to monitor the output waveform.

  • Page 17: Testing

    Figure 7. Waveform Measurement Setup Testing This section describes how the MegaPulse Defib-5PF-002 tester is used to conduct a test. The test can be stopped immediately at any time by turning OFF the rear-panel power switch. Select the input voltage (115V or 230V) from the switch on the back and connect the tester to a proper source of supply using the included 18AWG power supply cord.

  • Page 18: Section 4

    Section 4 Technical Assistance Technical Assistance from Compliance West USA is available: Phone: (800) 748-6224 Hours: 8:30 AM - 4:30 PM Pacific Time. Also available on our web site at: www.compwest.com Contact: Compliance West USA 650 Gateway Center Way, Suite D San Diego, CA, 92102 United States of America.

  • Page 19: Section 5

    INSTRUCTIONS. Introduction This section of the manual contains maintenance information for the MegaPulse Defib-5PF-002 impulse tester. A 1-year calibration cycle is recommended to maintain the specifications of the factory. The test equipment required for the performance test is a digital oscilloscope, high voltage oscilloscope probe, digital meter and a high voltage probe.

  • Page 20: Calibration Information

    Compliance West USA. Voltage Stop Disable / Keyboard Enable by Keyboard. If the MegaPulse Defib-5PF-002 tester includes TestMinder option and has the Voltage Stop by the PC command activated, it is possible to disable it using the next keyboard sequence: Note: Disabling Voltage Stop enables the keyboard.

  • Page 21: Commands Table

    Appendix 1 Commands table...
