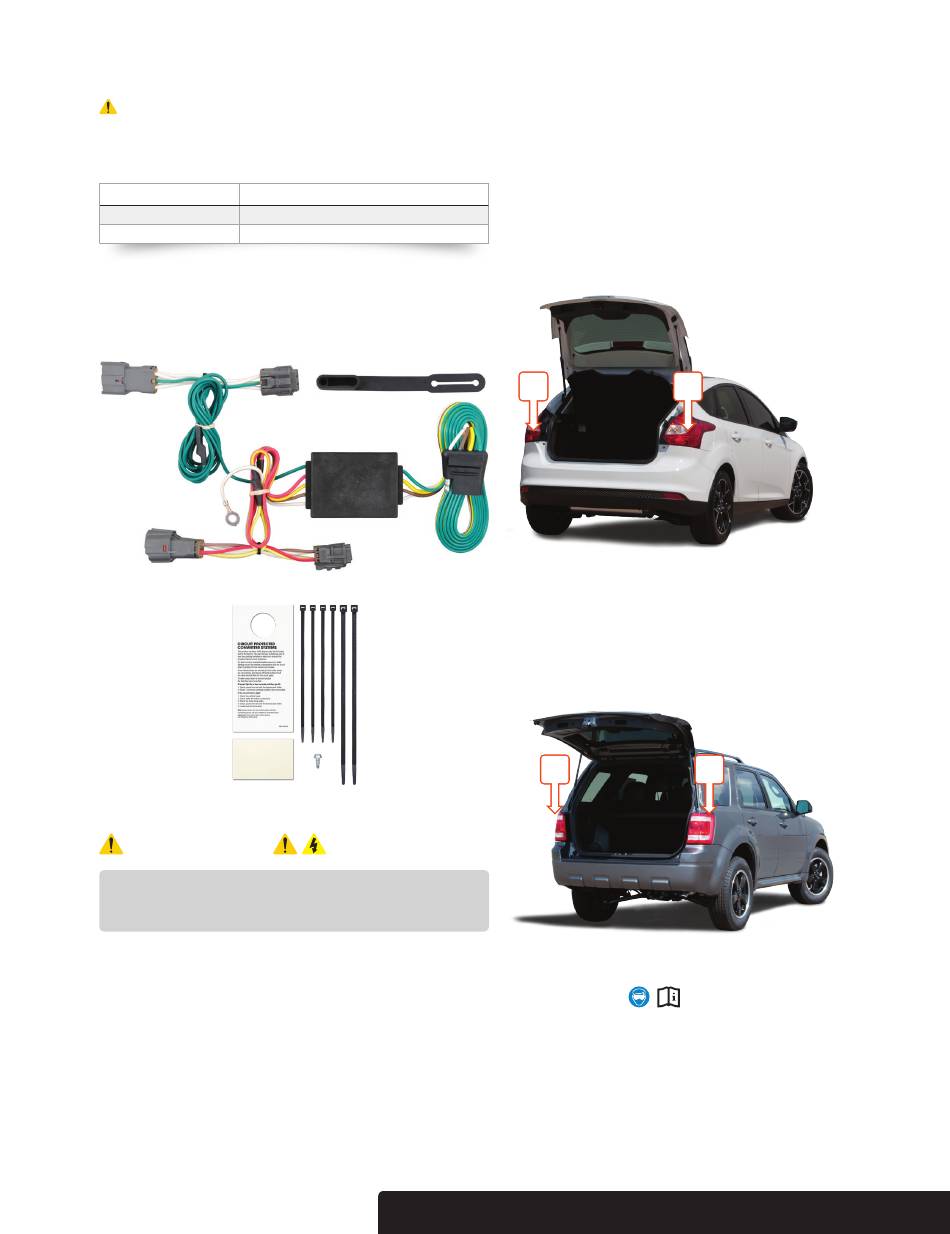

Curt Manufacturing 56222 Installation Instructions

INSTALLATION INSTRUCTIONS
WARNING: DO NOT EXCEED PRODUCT RATING OR TOW VEHICLE LAMP LOAD RATING, WHICHEVER IS LOWER
APPLICATIONS
Make Model
Kia Rondo (excluding LED taillights)
Kia Soul (excluding LED taillights)
CUSTOM WIRING HARNESS
WARNING
Exceeding the product rating can cause loss of warranty,
overheating and potential fire. Do not exceed product rating
or tow vehicle lamp load rating, whichever is lower.
Signal Circuits - 3.0 amps per side
Tail / Running Circuits - 5.0 amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.
WIRING LOCATION GUIDE
PASSENGER CARS ( P )
Representative vehicle shown below
P1 - Behind driver side taillight housing, outside of trunk
P2 - Behind passenger side taillight housing, outside of trunk
P1 P2
SUVS, MINI & FULL-SIZED VANS ( S )
Representative vehicle shown below
S1 - Behind driver side taillight housing
S2 - Behind passenger side taillight housing
S1
NOTICE
All steps must be followed to ensure the wiring harness
will function properly. Once installed, test for proper function
by using a test light or connecting a properly wired trailer.
TOOLS NEEDED
10mm socket
Ratchet
S2
Phillips screwdriver
PAGE 1 • 56222-INS-RC
