INSTALLATION MANUAL

Level of Difficulty

Moderate
Wiring Location(s)
S1 and S2

Wiring Location Guide*

for SUVs and Vans (S)
S1 Behind driver side taillight housing
S2 Behind passenger side taillight housing
S3 Behind driver side rear access panel
S4 Behind passenger side rear access panel
S5 Behind driver side rear bumper
S6 Behind center of rear bumper
S7 Behind passenger side rear bumper
S8 Under rear floor panel
S9 Behind driver side rear access panel
S10 Behind passenger side rear access panel
S10
S9
S1 S2
S3 S4
S8
S5 S6 S7
* Representative vehicle shown

Tools Required

Socket, 1/4" Ratchet
Socket, 10 mm Torx bit, T-27
Socket, 13 mm Fish wire
Socket extension Electrical tape
58963-INS-RB • PAGE 1

WARNING

Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.

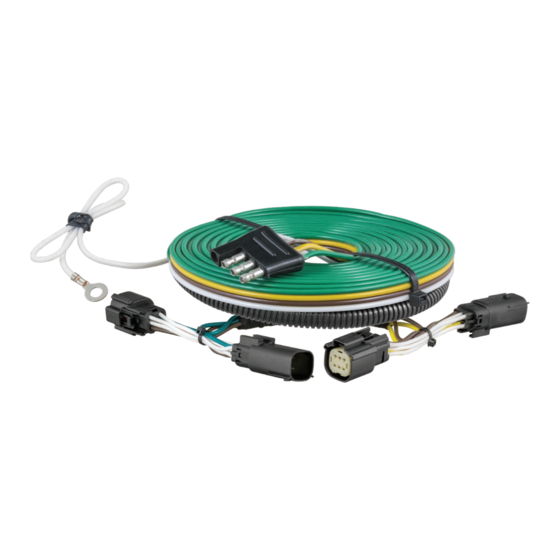

Product Photo
Included Parts
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.

Maintenance

Periodic inspection of all wires and connections should be performed
to ensure there is no visible damage or loose connections.

Product Registration and Warranty

CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
