INSTALLATION INSTRUCTIONS
WARNING: DO NOT EXCEED PRODUCT RATING OR TOW VEHICLE LAMP LOAD RATING, WHICHEVER IS LOWER
APPLICATIONS
Make
Model
Toyota
Rav4

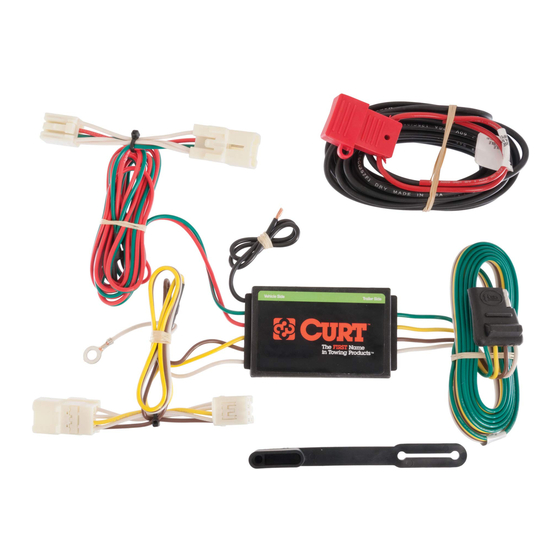

CUSTOM WIRING HARNESS
WIRING LOCATION GUIDE
SUVS, MINI & FULL-SIZED VANS ( S )
Representative vehicle shown below
S3 - Behind driver side rear access panel
S4 - Behind passenger side rear access panel
S3
S4
NOTICE
All steps must be followed to ensure the wiring harness
will function properly. Once installed, test for proper function
by using a test light or connecting a properly wired trailer.
TOOLS NEEDED
Ratchet
10mm socket
WARNING
The battery connection must be fuse-protected, 10-amp max.
Exceeding the product rating can cause loss of warranty,
overheating and potential fire. Do not exceed product rating
or tow vehicle lamp load rating, whichever is lower.
Signal Circuits - 3.0 amps per side
Tail / Running Circuits - 6.0 amps total
Check vehicle owner's manual or contact
the vehicle manufacturer for more information.
Phillips screwdriver
Panel trim removal tool
PAGE 1 • 56165-INS-RB
Advertisement
Related Manuals for Curt Manufacturing 56165
Summary of Contents for Curt Manufacturing 56165
-
Page 1: Installation Instructions
Signal Circuits - 3.0 amps per side Tail / Running Circuits - 6.0 amps total Check vehicle owner's manual or contact the vehicle manufacturer for more information. PAGE 1 • 56165-INS-RB... - Page 2 Secure the white ground wire using the ring terminal and provided screw. WARNING: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and / or personal injury. 56165-INS-RB • PAGE 2...
