INSTALLATION INSTRUCTIONS
51451 & 51452 APPLICATIONS
Make
Model
Cadillac
Escalade
Chevrolet
Silverado
Chevrolet
Suburban
Chevrolet
Tahoe
GMC
Sierra
GMC
Yukon

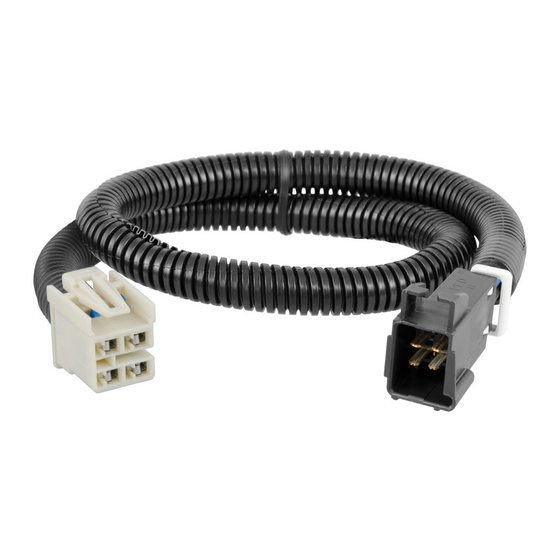

BRAKE CONTROL HARNESS
LOCATION GUIDE
Representative vehicle shown below
BH1 - Under dash, left of steering column, near emergency brake pedal
BH3 - Under dash, in junction box left of steering column
BH3
BH1
E-brake
Brake
NOTICE
All steps must be followed to ensure the CURT brake control
harness will function properly. Once installed, test for proper
function by following the brake control unit instruction manual.
Gas
PAGE 1 • RA • NEED ASSISTANCE? • 1.800.798.0813
Scan for helpful
installation tips
• CURTMFG.COM
Advertisement
Table of Contents
Related Manuals for Curt Manufacturing 51451
Summary of Contents for Curt Manufacturing 51451
- Page 1 Scan for helpful installation tips INSTALLATION INSTRUCTIONS 51451 & 51452 APPLICATIONS Make Model Cadillac Escalade Chevrolet Silverado Chevrolet Suburban Chevrolet Tahoe Sierra Yukon BRAKE CONTROL HARNESS NOTICE All steps must be followed to ensure the CURT brake control harness will function properly. Once installed, test for proper function by following the brake control unit instruction manual.
- Page 2 INSTALLATION / SAFETY INSTRUCTIONS Step 1 Locate the black electrical junction box under the dash, to the left of the steering column. Remove the box cover and locate the empty vehicle connection point (A,B). Step 2 Insert the connector on the CURT brake control harness into the vehicle connection point.
