INSTALLATION INSTRUCTIONS
51453 APPLICATIONS
Make
Model
Ram
1500
Ram
2500
Ram
3500

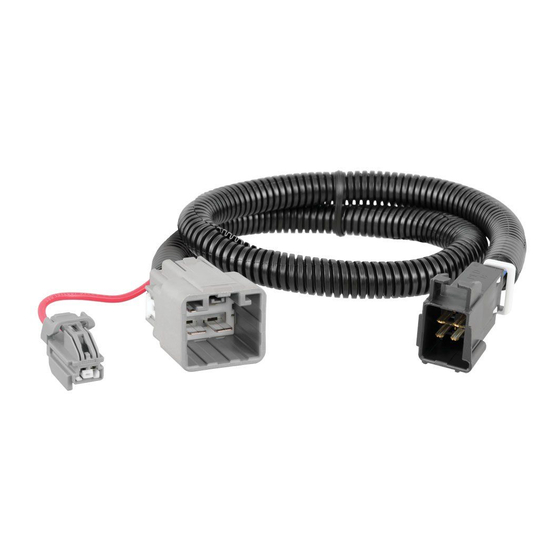

BRAKE CONTROL HARNESS
LOCATION GUIDE
Representative vehicle shown below
BH8 - Under dash, to right of emergency brake pedal
BH8
E-brake
Brake
NOTICE
All steps must be followed to ensure the CURT brake control
harness will function properly. Once installed, test for proper
function by following the brake control unit instruction manual.
Gas
PAGE 1 • 51453-INS-RA • NEED ASSISTANCE? • 1.800.798.0813
Scan for helpful
installation tips
• CURTMFG.COM
Advertisement
Table of Contents
Related Manuals for Curt Manufacturing 51453
Summary of Contents for Curt Manufacturing 51453
-
Page 1: Installation Instructions
Once installed, test for proper function by following the brake control unit instruction manual. LOCATION GUIDE Representative vehicle shown below BH8 - Under dash, to right of emergency brake pedal E-brake Brake • CURTMFG.COM PAGE 1 • 51453-INS-RA • NEED ASSISTANCE? • 1.800.798.0813... -
Page 2: Safety Instructions
Complete the installation using the brake control instructions. will be similar to that on the CURT brake control harness. Mount the unit as directed and perform test procedures as instructed in the brake control user manual. CURTMFG.COM • NEED ASSISTANCE? • 1.800.798.0813 • 51453-INS-RA • PAGE 2...
