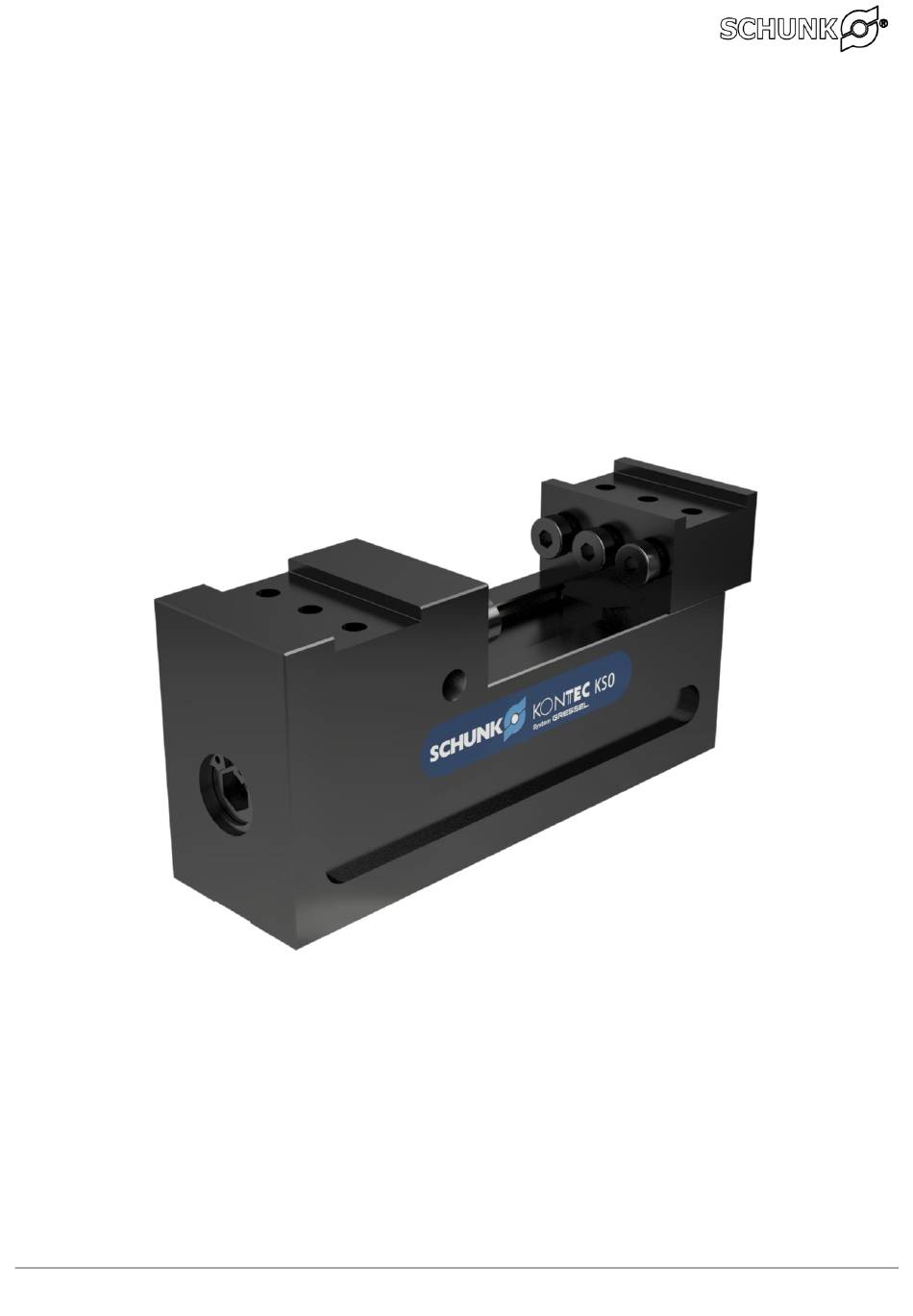

Montage- und Betriebsanleitung
Installation- and operating instruction
Einfachspanner mechanisch
Single vice, mechanical
KSO 40
H.-D. SCHUNK GmbH & Co.
Spanntechnik KG
Lothringer Strasse 23
D-88512 Mengen
schunk.com
XND.00014.008_A – 10/2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSO 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SCHUNK KSO 40

  • Page 1 _________________________________________________________________________________________ Montage- und Betriebsanleitung Installation- and operating instruction Einfachspanner mechanisch Single vice, mechanical KSO 40 H.-D. SCHUNK GmbH & Co. Spanntechnik KG Lothringer Strasse 23 D-88512 Mengen schunk.com XND.00014.008_A – 10/2018...
  • Page 2: Table Of Contents

    Generelle Reinigung / Schmierung ................9 Fehlersuche, Störungsbeseitigung ............9 Demontage, Montage ................10 7.1.1 Demontage der Spindel ....................10 7.1.2 Komplettzerlegung ......................10 Montage ........................10 Zusammenbauzeichnung ................ 11 Stückliste ........................11 Ausserbetriebnahme ................12 schunk.com XND.00014.008_A – 10/2018...
  • Page 3: Benutzerhinweise

    Hinweis auf grössere Sachschäden (alternativ) VORSICHT Bezeichnet eine möglicherweise gefährliche Situation. Wenn die Information nicht befolgt wird, sind Sachschäden die Folge. … weist auf eine möglicherweise gefährliche Situation hin, die zu Sachschäden führen kann, wenn sie nicht vermieden wird. schunk.com XND.00014.008_A – 10/2018...
  • Page 4: Allgemeine Sicherheitshinweise

    Beanspruchungen über dem max. Anzugsmoment führen zu Schäden an der Spindel. Gewicht: solinos 40: 1.7 kg Weitere Daten siehe aktueller Katalog >> SCHUNK stationäre Spanntechnik << 2.2 Vernünftigerweise vorhersehbare Fehlanwendung Eine andere als die unter „Bestimmungsgemässe Verwendung“ festgelegte oder über diese hinausgehende Benutzung gilt als nicht bestimmungsgemäss und ist verboten.
  • Page 5: Ersatz-, Verschleissteile Und Hilfsstoffe

     die mit den grundlegenden Vorschriften über Arbeitssicherheit und Unfallverhütung vertraut sind.  die in die Arbeiten an der Maschine eingewiesen sind.  die diese Betriebsanleitung gelesen und verstanden haben. Die Anforderungen der EG-Richtlinie zur Benutzung von Arbeitsmitteln 2007/30/EG sind einzuhalten. schunk.com XND.00014.008_A – 10/2018...
  • Page 6: Verpflichtung Des Personals

     Beachtung der Umgebungs- und Einsatzbedingungen.  Beachtung der vorgeschriebenen Wartungs- und Schmierintervalle.  Beachtung der maximalen Laufleistung. Werkstück berührende Teile und Verschleissteile sind nicht Bestandteil der Gewährleistung. Gewährleistung – Maximale Laufleistung Gewährleistungsdauer 24 Monate Maximale Laufleistung [Spannzyklen] 50‘000 schunk.com XND.00014.008_A – 10/2018...
  • Page 7: Beschreibung Des Spannmittels

    Der KSO kann mit wenigen Handgriffen montiert und demontiert werden. 3.1 Funktion Der ist ein Direktspanner mit einem mechanischen Antrieb der über ein hermetisch abgedichtetes Gewinde erfolgt. Der Kraftaufbau ist direkt, ohne Kraftverstärker und linear. Die Spannkräfte sind Drehmoment abhängig. schunk.com XND.00014.008_A – 10/2018...
  • Page 8: Betrieb (Normalbetrieb)

    Das Anzugsmoment der Zyl.-Schrauben beträgt 8 Nm. Die Aufsatzbacke Grip VS horizontal muss mit 3 Zyl.-Schrauben befestigt werden. Selbst angefertigte horizontale Aufsatzbacken dürfen nicht höher als 12 mm sein und müssen auf der Hinterseite abgestützt werden. schunk.com XND.00014.008_A – 10/2018...
  • Page 9: Wartung, Reinigung, Instandhaltung

     Anschlagschraube (Pos. 80) lösen  Spindel (Pos. 40) drehen bis der Schieber (Pos. 20) gelöst ist  Gewinde schmieren  Spindelkopf ölen  Laufflächen ölen Fehlersuche, Störungsbeseitigung Spanner ist schwergängig Demontieren, reinigen und beschädigte Flächen vorsichtig abziehen. schunk.com XND.00014.008_A – 10/2018...
  • Page 10: Demontage, Montage

    7.2 Montage Die Montageschritte werden in umgekehrter Reihenfolge zur Demontage ausgeführt. Achten Sie bei der Montage darauf, dass der Dichtungsring (Pos. 100) im Bereich des Spindelkopfs korrekt eingesetzt wird. Bei der Montage die Spindeleinheit ausreichend schmieren. schunk.com XND.00014.008_A – 10/2018...
  • Page 11: Zusammenbauzeichnung

    KLM.040.003.11 Schieber KLM.040.004.11 Niederzugblech XNN.10312.529 Zyl-Schr In-6kt M10x70 8.8 eco-lubric XNN.18650.170 Sicherungsring Bohrung Ø 17 XNN.10361.358 Zyl-Schr In-6kt NK M6x10 8.8 KLH.065.328.11 Markenschild XNN.10301.307 Zyl-Schr In-6kt M5x8 8.8 XNN.10705.508 Gew-Stift In-6kt M12x10 XNN.61071.565 O-Ring NBR/70 15.60x1.78 schunk.com XND.00014.008_A – 10/2018...
  • Page 12: Ausserbetriebnahme

    _________________________________________________________________________________________ 9 Ausserbetriebnahme Das Spannmittel und alle Zubehörteile können gefahrlos als Altmetall entsorgt werden. schunk.com XND.00014.008_A – 10/2018...
  • Page 13 Troubleshooting, eliminating faults ............20 Removing and replacing parts ............... 21 7.1.1 Removing the spindle ..................... 21 7.1.2 Complete dismantling ....................21 Assembly ........................21 Assembly drawing .................. 22 Parts list ........................22 Taking out of service ................23 schunk.com XND.00014.008_A – 10/2018...
  • Page 14: User Information

    Important for preventing more extensive material damage (alternative) CAUTION Indicates a potentially dangerous situation. If the information is ignored, material damage will result. … points out a potentially dangerous situation that can lead to material damage if it is not avoided. schunk.com XND.00014.008_A – 10/2018...
  • Page 15: General Safety Instructions

    Weight: solinos 40: 1.7 kg For further data, please see the current catalogue >> Schunk stationary Workholding << 2.2 Reasonably foreseeable misapplication Any application that is not in accordance with the "Intended use" or exceeds such intended use is considered not in accordance with the regulations, and is forbidden.
  • Page 16: Spare And Wear Parts And Auxiliary Material

     who have completed appropriate induction for working with the machine.  who have read and understood these operating instructions. The requirements of the EG Directive 2007/30/EG on the use of work machinery must be complied with. schunk.com XND.00014.008_A – 10/2018...
  • Page 17: Operator Duties

     Observance of the maximum service life. Parts in contact with the workpiece and wear parts are not covered by the warranty. Warranty – Maximum service life Period of warranty 24 months Maximum service life [clamping cycles] 50,000 schunk.com XND.00014.008_A – 10/2018...
  • Page 18: Description Of The Clamping Device

    3.1 Function The is a direct vice with a driven mechanically via a hermetically sealed thread. The clamping force is generated directly in a linear manner, without a force amplifier. The clamping forces depend on the torque. schunk.com XND.00014.008_A – 10/2018...
  • Page 19: Operation (Standard Operation)

    The torque of the cylinder screws is 8 Nm. The grip VS horizontal jaw must be fixed with 3 cylinder screws. Third-party horizontal jaws must not be taller than 12 mm and must be supported at the rear. schunk.com XND.00014.008_A – 10/2018...
  • Page 20: Servicing, Cleaning, Maintenance

     Lubricate the thread  Oil the spindle head  Oil the contact surfaces Troubleshooting, eliminating faults Vice is hard to operate Dismantle, clean and the damaged surfaces must be carefully levelled off with a honing stone. schunk.com XND.00014.008_A – 10/2018...
  • Page 21: Removing And Replacing Parts

    Carry out assembly in the reverse order. During assembly it is important to ensure that the sealing ring (pos. 100) is correctly fitted near the head of the spindle. Apply sufficient grease when assembling the spindle unit. schunk.com XND.00014.008_A – 10/2018...
  • Page 22: Assembly Drawing

    XNN.10361.358 Int. hex. cyl. screw Nk M6 x 10 8.8 KLH.065.328.11 Type plate XNN.10301.307 Int. hex. cyl. screw M5 X 8, 8.8 XNN.10705.508 Int. hex. threaded pin M12 x 10 XNN.61071.565 O-ring NBR/70 15.60 x 1.78 schunk.com XND.00014.008_A – 10/2018...
  • Page 23: Taking Out Of Service

    _________________________________________________________________________________________ Taking out of service The clamping device and all accessories can be disposed of as scrap metal without any risk. schunk.com XND.00014.008_A – 10/2018...
  • Page 24 _________________________________________________________________________________________ H.-D. Schunk GmbH & Co. Spanntechnik KG Lothringer Strasse 23 D-88512 Mengen Tel.: +49-7572-7614-0 Fax: +49-7572-7614-1099 info@de.schunk.com schunk.com schunk.com XND.00014.008_A – 10/2018...
