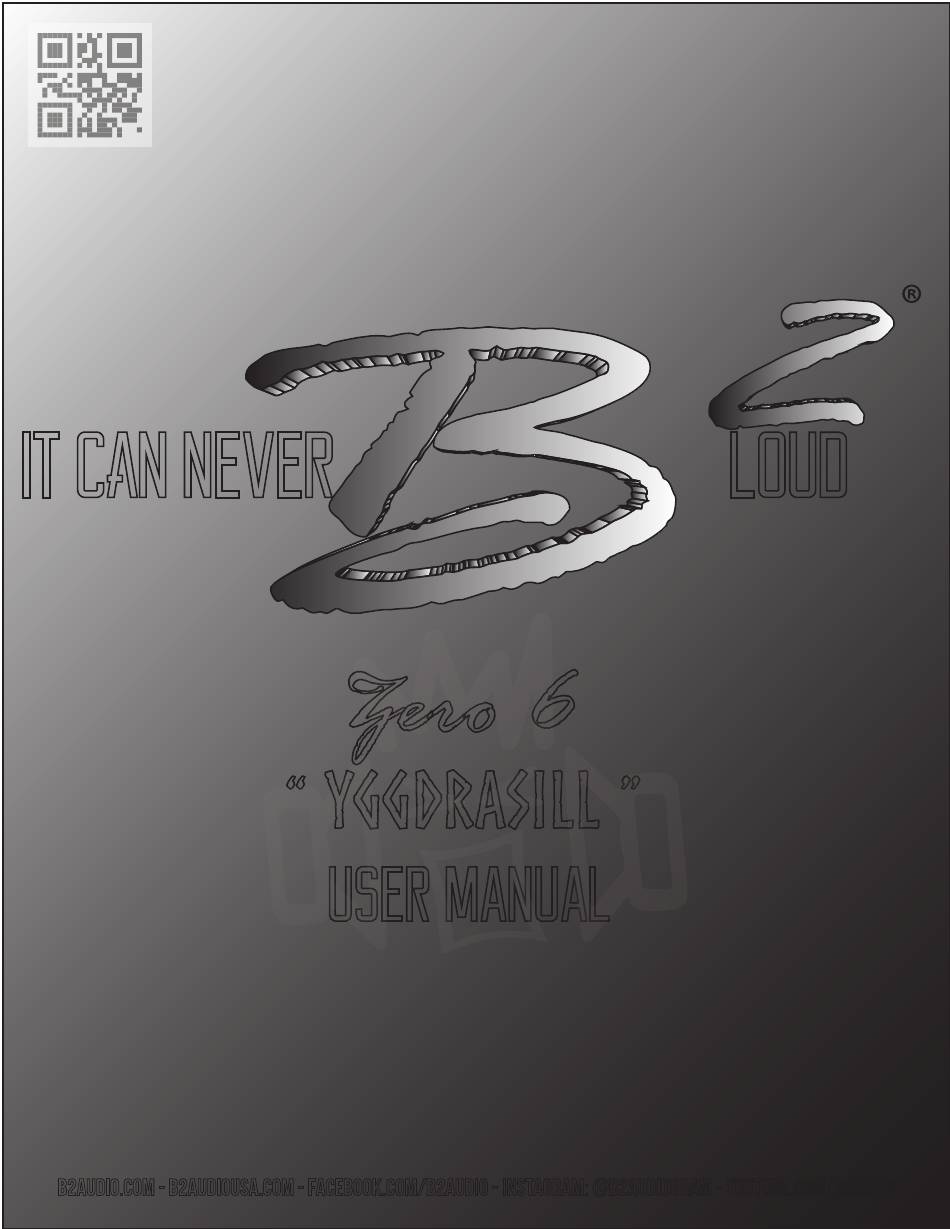

- Page 1 IT can NEVER LOUD Zero 6 “ yggdrasill” USER MANUAL #ITCANNEVERB2LOUD B2AUDIO.COM - B2AUDIOUSA.COM - FACEBOOK.COM/B2AUDIO - INSTAGRAM: @B2AUDIOGRAM - youtube.com/b2audio...
- Page 2 Welcome to the forefront of audio innovation with the B2 Audio Zero series. These ampli ers represent a signi cant advancement in the realm of high-performance audio, setting a new benchmark for precision, power, and reliability. At B2 Audio, we are committed to excellence. The Zero ampli ers embody this commitment, integrating state-of-the-art technology and superior engineering.
-
Page 3: Design Specifications
▪ design specifications model: zero 6 - yggdrasill circuit configuration: hi-ef class d frequency response: 10 hz-300 hz signal to Noise Ratio: >95 db input sensitivity: 5 v-0.2 v crossover circuit: 24 db/oct low pass crossover: 35 hz-250 hz subsonic crossover: 10 Hz - 50 hz damping factor: >400... - Page 4 Panel layout INPUT REMOTE GAIN GAIN SUBSONIC Master Daisy DAISY POWER CLIP Slave PROTECT 0.2V 10Hz 50Hz 35Hz 250Hz -5% +5% SPEAKER OUTPUT power & protection indicator LPF (LOW PASS FILTER 35 Hz ~250 Hz, 24 dB/oct) Power LED, blue light shows correct operation, Adjusts the cut o point for the low pass crossover Protect LED, red light shows general malfunction, faulty at the frequency chosen.
- Page 5 Power terminals +12 V +12 V +12 V ground 500 A fuse rating power terminal GND (Ground connection) +12v (Power connection) Connects to the vehicle’s chassis. Keep as short as Connects to the positivie terminal of the battery. possible (< 20” / 50 cm). Use minimum 0AWG cable For speci ed performance 0AWG cable is required.
-
Page 6: Installation Considerations
installation Installation Considerations Installing an ampli er on your own can be a rewarding project, but it's important to approach it with caution and thorough preparation. Reading the owner's manual thoroughly will provide you with the necessary knowledge and precautions to take before beginning the installation process. If you nd yourself uncertain at any point, seeking assistance from authorized distributors or dealers is a wise choice to ensure that your setup is correctly con gured and your warranty remains valid. - Page 7 speaker connection INPUT REMOTE GAIN GAIN SUBSONIC Master Daisy DAISY POWER CLIP Slave PROTECT 0.2V 10Hz 50Hz 35Hz 250Hz -5% +5% SPEAKER OUTPUT Speaker impedance 1 Ohm ~ 8 Ohm will reach thermal at a faster rate & will eventually go into protect. Impedance load under 1 ohm is not warranted! We recommend using minumum 8 Ga speaker cables to acquire the intended performance &...
- Page 8 Linking master and slaves in the steps below Keep in mind both ampli ers need to be switched o before any connection is initiated. If you are unsure of the process, get the ampli er installed/tuned by an authorized B2 audio installer. step 1.
- Page 9 master / daisy connection master INPUT REMOTE GAIN GAIN SUBSONIC Master Daisy DAISY POWER CLIP Slave PROTECT 0.2V 10Hz 50Hz 35Hz 250Hz -5% +5% SPEAKER OUTPUT daisy INPUT REMOTE GAIN GAIN SUBSONIC Master Daisy DAISY POWER CLIP Slave PROTECT 0.2V 10Hz 50Hz 35Hz 250Hz...
- Page 10 accu8 crossover INPUT REMOTE GAIN GAIN SUBSONIC Master Daisy DAISY POWER CLIP Slave PROTECT 0.2V 10Hz 50Hz 35Hz 250Hz -5% +5% SPEAKER OUTPUT accu8 • The accurate crossover setting Dealing with guesses and improper settings of your crossovers seems futile when you have invested both time and money into your audio system.
- Page 11 audio precision charts Zero 6 14.4V 40 HZ 4 ohm 0.05 0.02 0.01 0.005 0.002 0.001 2.115k 14.4V 40 HZ 2 ohm 0.05 0.02 0.01 0.005 0.002 0.001 3.748k 14.4V 40 HZ 1 ohm 0.05 0.02 0.01 0.005 0.002 0.001 6.233k...
-
Page 12: Troubleshooting
troubleshooting The protection circuits of the ampli er prevent severe damage from faulty conditions and improper use. The protection indicator will switch on due to a short circuit connection, high/low voltage or speaker overload, causing the ampli er to turn o . Before inspecting the problem, turn all levels down and all power o , then carefully check the installation for wiring mistakes, shorts, or faulty ground.
