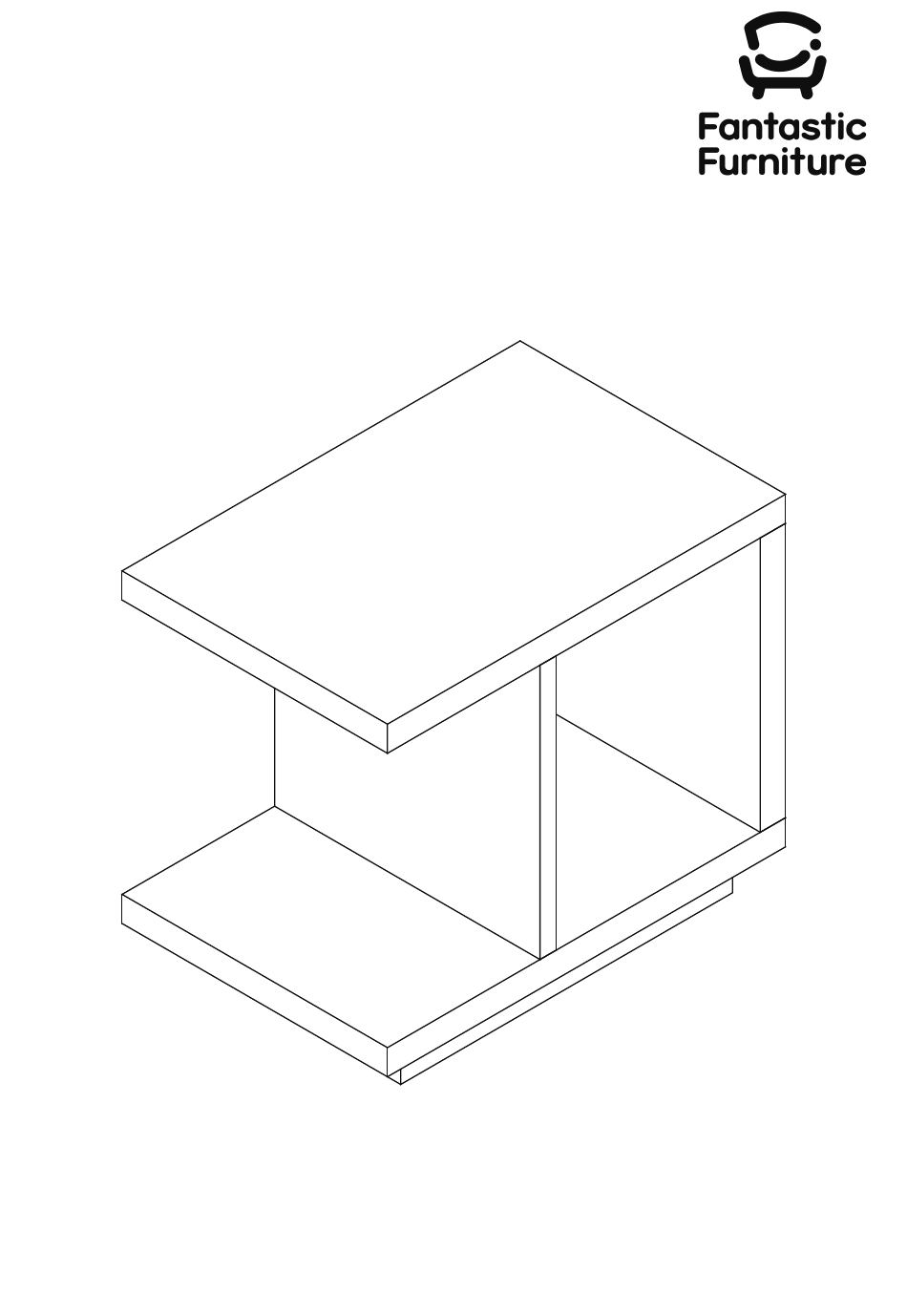

- Page 1 Version 1.0 Ashton Side Table fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need Top Panel to assemble the product (P1) DO NOT USE Other tools you need: Phillips head screwdriver; Right Side Hammer; Panel (P4) Left Side Panel (P3) Bottom Panel (P2) Parts list Top Panel (P1); Bottom Panel (P2); Rail Left Side Panel (P3);... - Page 5 Step 1 You will need 4 x Cam Bolts Phillips Head Screwdriver (H3) (P1) Attach 4 x Cam Bolts (H3) to Top Panel (P1) as shown, tightening with the Phillips Head Screwdriver. Step 2 (P3) You will need 4 x Dowels 4 x Cam Nuts (H1) (H4)
- Page 6 Step 3 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P2) Attach 4 x Cam Bolts (H3) to Bottom Panel (P2) as shown, tightening with the Phillips Head Screwdriver. Step 4 You will need (P2) 4 x Dowels 4 x Bolts (H1) (H2)
- Page 7 Step 5 You will need 4 x Cam Bolts Phillips Head (H3) Screwdriver (P5) Attach 4 x Cam Bolts (H3) to Rails (P5 x 2) as shown, tightening with the Phillips Head Screwdriver. Step 6 You will need (P5) (P6) 4 x Dowels 4 x Cam Nuts (H4)
- Page 8 Step 7 (P6) (P5) You will need (P5) (P6) 4 x Cam Nuts Phillips Head (H4) Screwdriver (P2) Insert 4 x Cam Nuts (H4) into the Rails (P5 x 2) as shown. Secure the Rails (P5, P6) to the Bottom Panel (P2) by rotating the Cam Nuts so the arrows point towards the incoming Cam Bolts, once in place tighten with a Phillips Head Screwdriver.
-
Page 9: Job Complete
Step 9 You will need 4 x Stickers (H5) (P4) (P3) Cover the cam nut holes on Left & Right Side Panels (P3 & P4) using 4 x Stickers (H5). Carefully turn the side table over. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 9...
