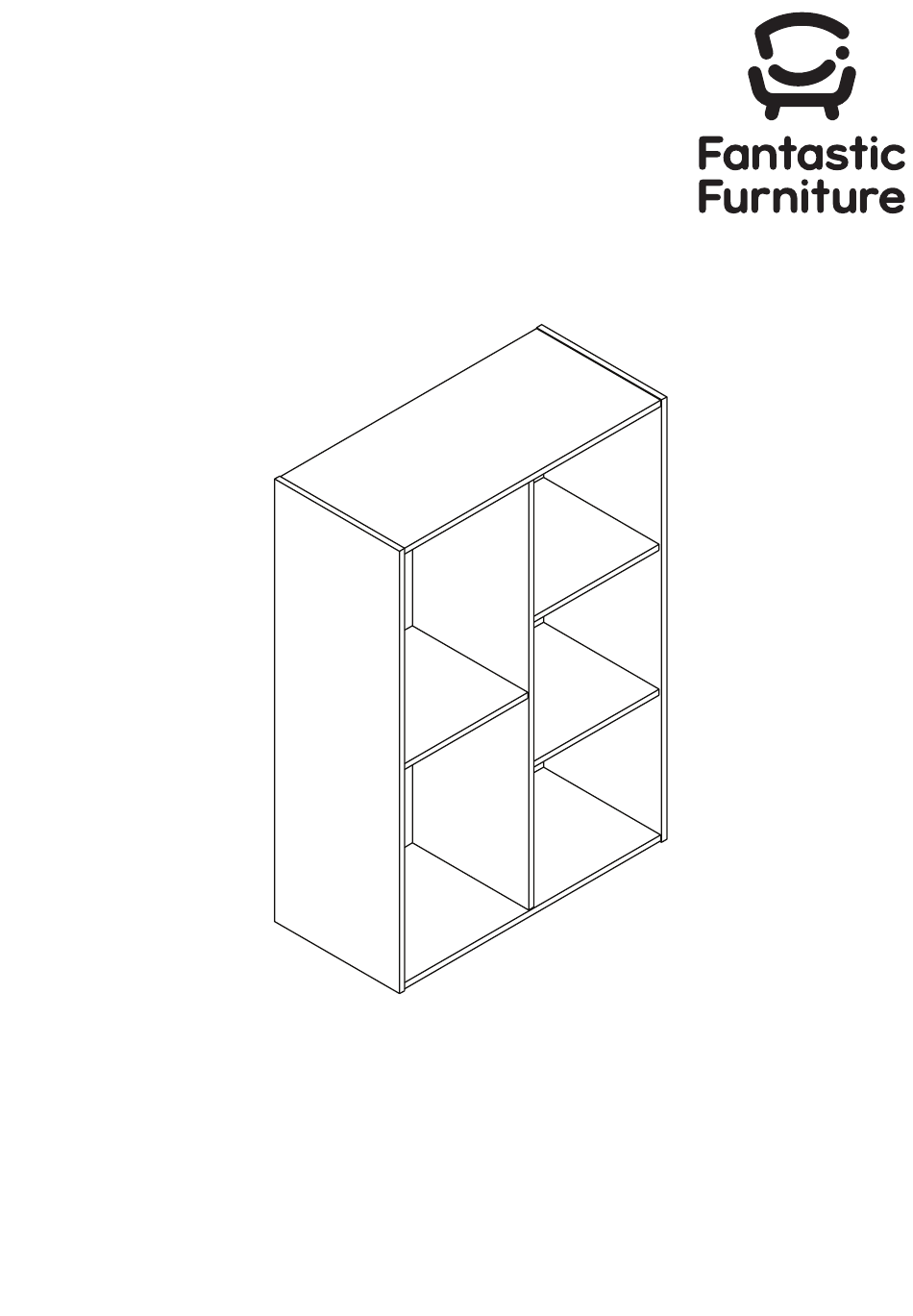

  • Page 1 Version 1.0 Alfa Utility 5 Shelf fantasticfurniture.com.au...
  • Page 2 Secure it! Reduce the risk of furniture tip-over accidents ARNIN N UR TH TRAP I ATTACH RI U IN UR ATH. included since di erent surface materials require di erent attachments. Please seek professional advice if you are in doubt of what fixing device to use. Recommended weight capacity: 15kg per Shelf •...
  • Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gi t Card! @fantasticfurniture fantasticfurniture.com.au Page 3...

  • Page 4: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identi y and lay out all of the compenents Unless instructed, do not fully tighten screws before you begin assembly.

  • Page 5: What You Need

    What you need to assemble the product Top Panel (P3) Side Panel Right (P2) Back Panel Other tools you need: Phillips head screwdriver; (P6) Mallet. Shelf Panel Parts list (P5) Side Panel Le t (P1); Shelf Panel Side Panel Right (P2); (P5) Top Panel (P3);...
  • Page 6 Step 1 You will need 2 x Long Screws Phillips head (H1) screwdriver (H1) (P4) (P5) Attach Shelf Panel (P5) to Center Panel (P4) with 2x Long Screws (H1). Tighten with a phillips head screwdriver. Step 2 You will need (P5) 4 x Long Screws Phillips head...
  • Page 7 Step 3 You will need 2 x Long Screws Phillips head (H1) screwdriver (P4) (P3) (H1) Attach Top Panel (P3) to Center Panel (P4) with 2x Long Screws (H1). Tighten with a phillips head screwdriver. Step 4 You will need (H1) 2 x Long Screws Phillips head...
  • Page 8 Step 5 (P3) (P6) (P3) Slide Back Panel (P6) into grooves of Top & Bottom Panels (P3). Step 6 You will need (H1) (P1) 6 x Long Screws Phillips head (H1) screwdriver (P3) (P5) (P3) Attach Side Panel Le t (P1) to Top & Bottom Panels (P3) and Shelf Panel (P5) with 6x Long Screws (H1).
  • Page 9 Step 7 (P3) (P6) (P3) Slide Back Panel (P6) into grooves of Top & Bottom Panels (P3). Step 8 (H1) You will need (P2) 8 x Long Screws Phillips head (H1) screwdriver (P3) (P5) (P5) (P3) Attach Side Panel Right (P2) to Top & Bottom Panels (P3) and 2x Shelf Panels (P5) with 8x Long Screws (H1).
  • Page 10 Step 9 You will need DETAIL A (P3) 24 x Stickers (H2) (P2) (P1) (H2) Place 24x Stickers (H2) to cover screws. DETAIL A Step 10 You will need (P3) DETAIL A 1 x Pan Head 1 x Webbing 1 x Flat Washer Phillips head Screw (H5)
  • Page 11 Step 11 DETAIL A (P3) DETAIL A Move furniture to its final position, then connect the end of the Webbing (H5) to the wall, ensuring it is firmly attached. Seek advice from a qualified trades person on how to attach this to your specific wall. Screws and wall plugs are not supplied. Please use appropriate fixtures for your wall.

  • Page 12: Job Complete

    Step 13 Job complete! In the interest of our environment please dispose of all packaging thoughfully. fantasticfurniture.com.au Page 12...
